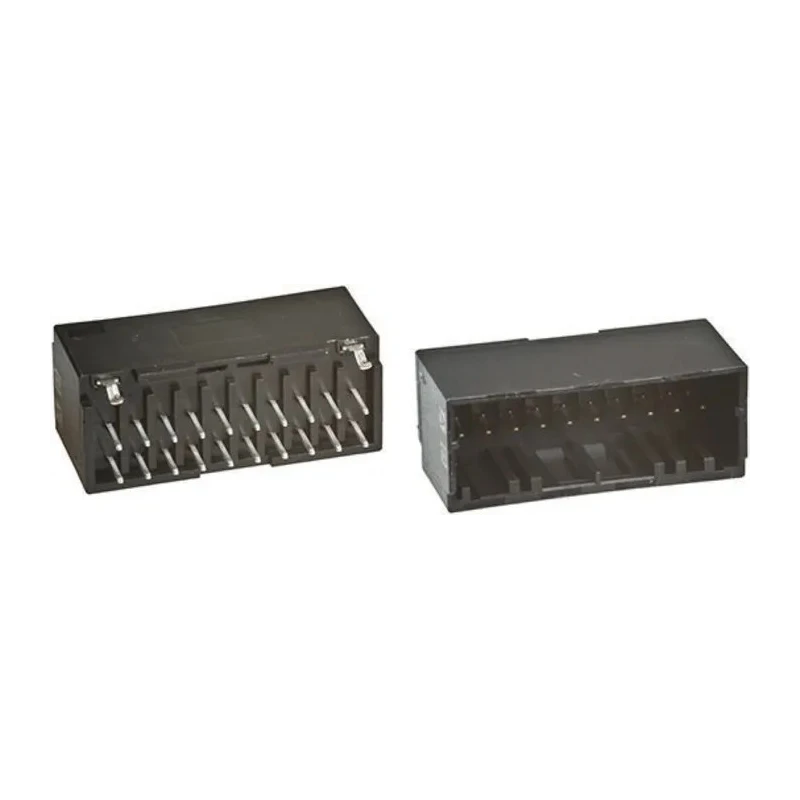

TE Connectivity Dynamic 1000 Series Straight Through Hole PCB Header 26 Contacts 2 mm Pitch 2 Row Shrouded 1-1827872-3
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 125V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | Dynamic 1000 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 706-8019PBrand: TE ConnectivityManufacturers Part No.: 1-1827872-3 |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a durable thermoplastic housing for mechanical stability.
- Provides 26 gold-plated copper alloy contacts for excellent conductivity.
- Mount type is through hole for secure PCB mounting.
- Supports operating temperature range from -55°C to 105°C.
- Designed with a 2 mm pitch and 2-row orientation for compact PCB layouts.
- Shrouded connector system improves mating reliability and contact protection.
- Termination type is solder for stable electrical connections.
- Operates at maximum voltage of 125V to suit various electronic applications.
Product Description
TE Connectivity 1-1827872-3 Dynamic 1000 Series Straight Through Hole PCB Header is engineered for high-reliability wire-to-board electrical connections. This PCB header features 26 male contacts arranged in 2 rows with a 2 mm pitch, making it ideal for dense circuit board applications.
The housing is made from robust thermoplastic material, delivering mechanical stability and durability under industrial conditions. Contact tabs are gold-plated copper alloy, ensuring optimal conductivity and corrosion resistance. The through-hole mount type with tin-plated solder tails facilitates secure and lasting PCB soldering.
This connector supports an operating temperature range from -55°C to 105°C and a maximum voltage rating of 125V, enabling use in a wide variety of electronic components, including industrial, automotive, and commercial equipment. Its shrouded design provides added protection against accidental contact and helps prevent damage during mating cycles.
The Dynamic 1100 Series headers incorporate a tin-plated retention leg for improved stability on the PCB and are designed to prevent contact bending during assembly and usage. Recommended PCB thickness ranges from 1.0 to 1.6 mm for optimal fitment.
Durable thermoplastic housing ensures mechanical robustness. Gold-plated copper alloy contacts provide reliable electrical performance. Through-hole mounting method for secure PCB integration. Temperature rating from -55°C to 105°C supports harsh environments.
2 mm pitch and 2-row configuration for compact layouts. Shrouded design protects contacts and enhances mating reliability. Solder termination ensures strong electrical and mechanical bonds. Operating voltage up to 125V for diverse electronic applications.
Compatible with dynamic series connectors for system flexibility. Manufactured in China following stringent quality controls.
This PCB header is widely used in industrial electronics, power connectors, communication boards, and embedded systems for ensuring stable, long-term electrical connections. Its design supports manufacturing efficiency and reliable product assembly. Explore more connectors and PCB Headers available to suit a wide range of applications and technical requirements on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this PCB header is 125V, making it suitable for various electronic applications.
This model supports an operating temperature range from -55°C to 105°C, allowing it to function in harsh environments.
It features 26 male contacts arranged in a 2-row configuration, designed for compact PCB layouts.
The termination type for this connector is solder, ensuring stable electrical connections.
The contacts are made of gold-plated copper alloy, which provides excellent conductivity and corrosion resistance.
The pitch of the contacts in this model is 2 mm, facilitating a compact design for circuit boards.
The housing is made from durable thermoplastic, providing mechanical stability and robustness under industrial conditions.
This connector utilizes a through-hole mounting type, which ensures secure integration onto PCBs.
Yes, it is compatible with Dynamic series connectors, providing flexibility in system design.
The recommended PCB thickness for optimal fitment is between 1.0 mm and 1.6 mm.
This PCB header is widely used in industrial electronics, power connectors, communication boards, and embedded systems.
This product is manufactured in China, following stringent quality controls.
