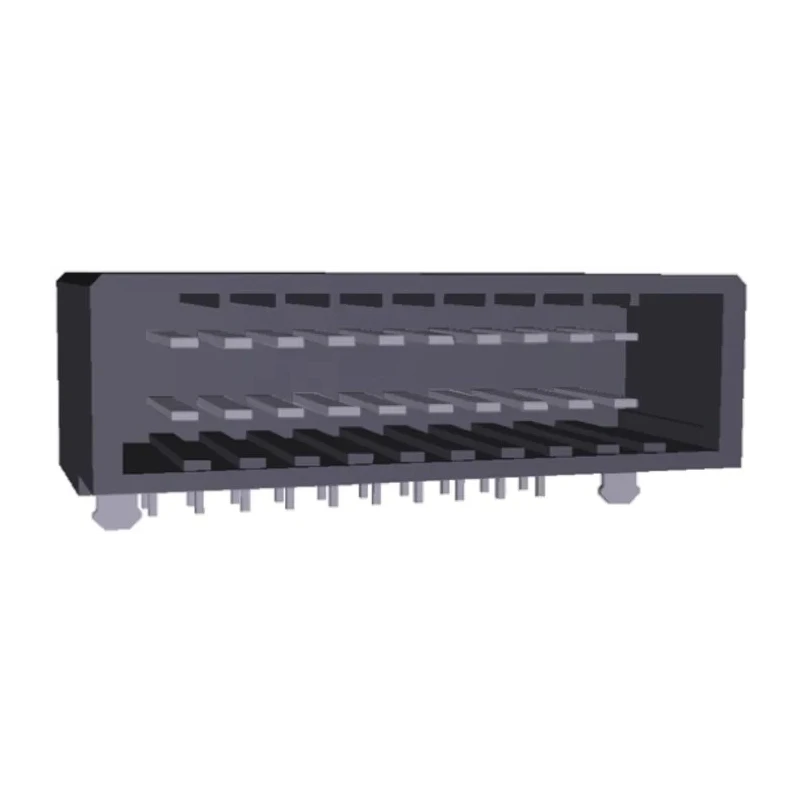

TE Connectivity Dynamic 3000 Series Right Angle Through Hole PCB Header 20 Contact 3.81 mm Pitch 2 Row Shrouded 178308-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 15A |
| Model | 178308-5 |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper Alloy |
| Series | Dynamic 3000 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 3.81mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 719-5300PBrand: TE ConnectivityManufacturers Part No.: 178308-5 |
| Contact Plating | Tin |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- 20 contacts arranged in 2 rows for reliable connectivity.
- Glass filled polyester housing ensures durability and electrical insulation.
- Copper alloy contacts with tin plating provide excellent conductivity.
- Rated for 15 A current and 250 V voltage for robust performance.
- Wide operating temperature range from -55°C to 105°C for diverse applications.
- Termination type is solder with a recommended PCB thickness of 1.0 to 1.6 mm.
- Retention leg tin-plated for enhanced mechanical stability.
- Gold plated contact tabs for improved signal integrity.
Product Description
TE Connectivity 178308-5 is a Dynamic 3000 Series Right Angle Through Hole PCB Header designed for wire-to-board connector system applications. It features 20 male contacts arranged in 2 rows with a 3.81 mm pitch. The housing is made from glass filled polyester to provide strong mechanical and electrical performance.
This PCB header supports a maximum operating current of 15 A and voltage of 250 V, suitable for medium power electronic connections. The contacts use a copper alloy and are tin plated, with gold plated contact tabs ensuring superior electrical contact and corrosion resistance. The solder termination type ensures reliable soldering to PCB pads.
Operating temperature range is from -55°C minimum to 105°C maximum, making this header suitable for harsh industrial and commercial environments. Its right angle orientation aids in optimizing PCB space and routing. The product includes a tin plated retention leg to increase mechanical stability during soldering. The recommended PCB thickness for mounting is 1.0 to 1.6 mm.
This header is commonly used in industrial electronics, power supplies, instrumentation, automation, and other PCB assembly applications requiring reliable, durable, and high-current wire-to-board connections. The shrouded design offers extra protection against misalignment and mechanical damage.
20 contacts arranged in 2 rows for reliable connectivity. Glass filled polyester housing ensures durability and electrical insulation. Copper alloy contacts with tin plating provide excellent conductivity. Rated for 15 A current and 250 V voltage for robust performance.
Wide operating temperature range from -55°C to 105°C for diverse applications. Termination type is solder with a recommended PCB thickness of 1.0 to 1.6 mm. Retention leg tin-plated for enhanced mechanical stability. Gold plated contact tabs for improved signal integrity.
Right angle orientation supports compact PCB layouts. Shrouded design increases protection and reduces misalignment risks. Explore TE Connectivity PCB Headers in the Electronics & Electricals category on EnvMart for advanced connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum operating current of 15 A and a voltage of 250 V.
It features a pitch of 3.81 mm and has 20 male contacts arranged in 2 rows.
The housing is made from glass filled polyester, while the contacts are made of copper alloy with tin plating and gold plated contact tabs for improved signal integrity.
The recommended PCB thickness for mounting this header is between 1.0 mm and 1.6 mm.
It has a wide operating temperature range from -55°C to 105°C, making it suitable for various applications.
This model uses a solder termination type for reliable soldering to PCB pads.
The header is designed with a right angle orientation, which helps optimize PCB space and routing.
Yes, it includes a tin-plated retention leg that enhances mechanical stability during soldering.
It is a shrouded design, which offers extra protection against misalignment and mechanical damage.
It is commonly used in industrial electronics, power supplies, instrumentation, automation, and other PCB assembly applications requiring reliable wire-to-board connections.
This header supports a wire-to-board connector system, suitable for medium power electronic connections.
The country of origin for this PCB header is India.
