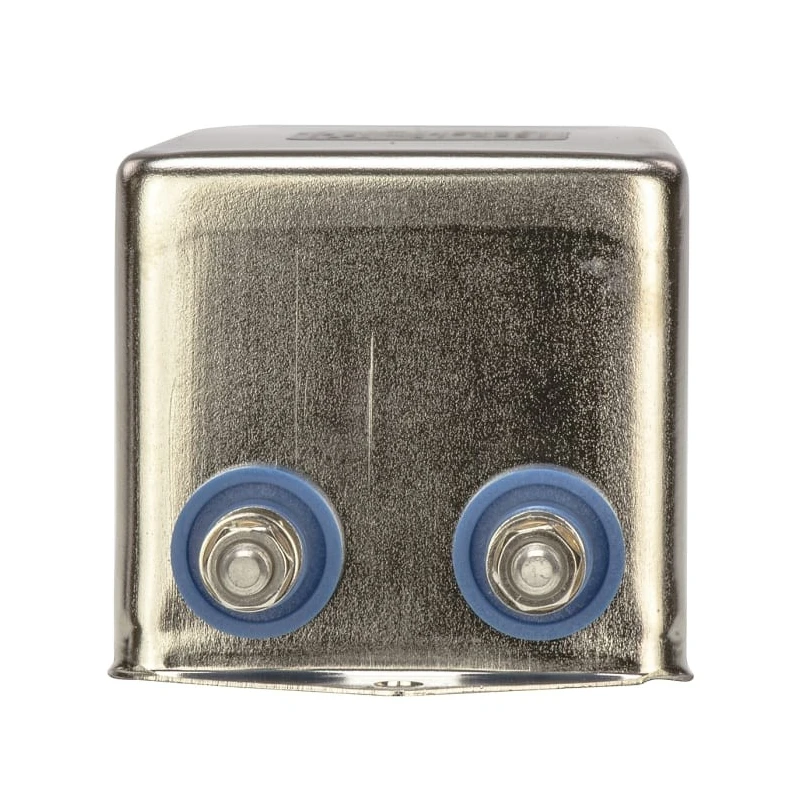

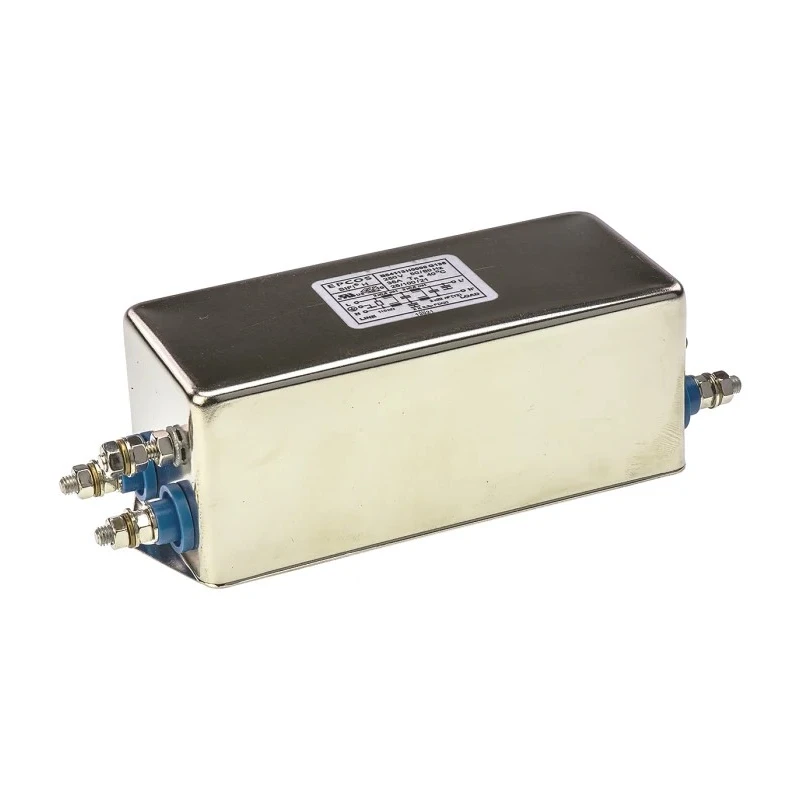

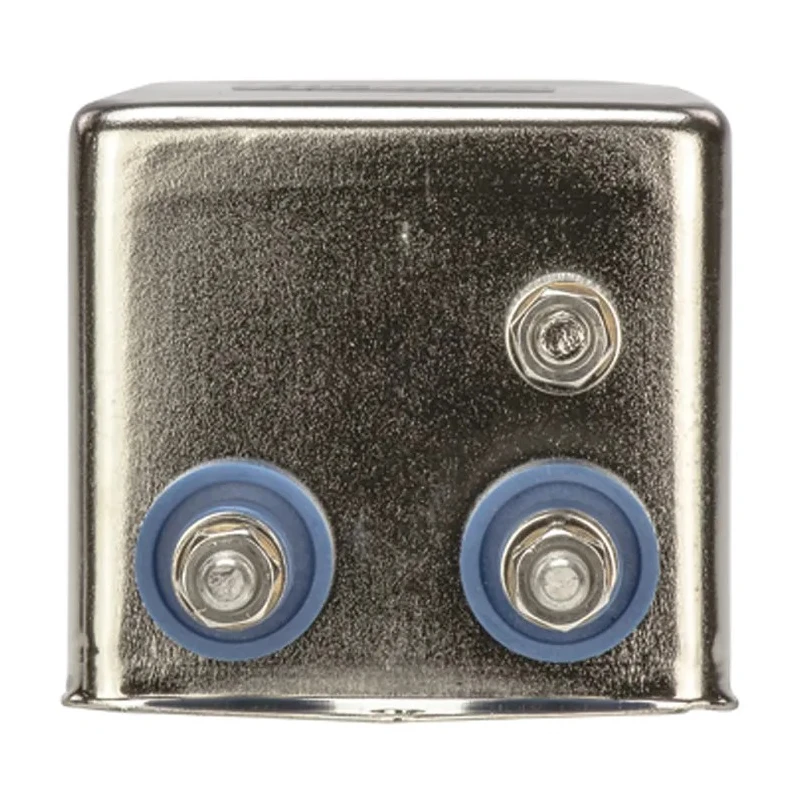

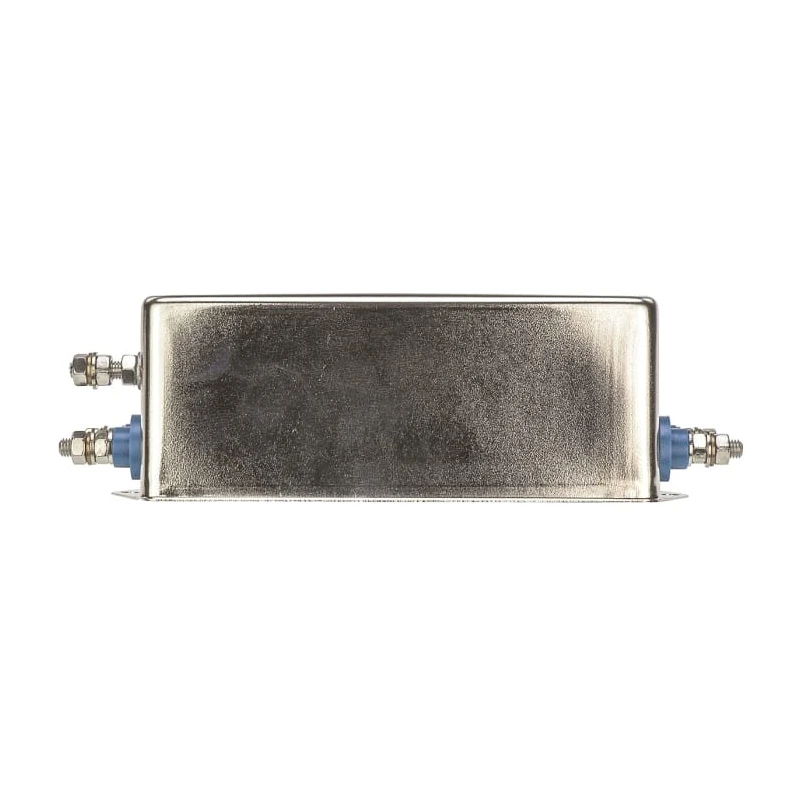

TDK Chassis Mount EMC Filter, Screw Termination, 1 Phase, 36A Max Current, 250V AC/DC, 50/60 Hz, Model B84113H0000G136

TDK B84113H0000G136 is a single phase chassis mount EMC filter engineered for robust electromagnetic interference mitigation in electronic systems operating at 250V AC/DC and 50 to 60 Hz frequency range. It supports a maximum current of 36A, making it suitable for medium power applications in telecom and data equipment power supplies.

The filter incorporates screw termination style for secure mounting and easy installation on chassis, ensuring stable electrical connections. It is constructed with polyurethane potting material rated UL 94 V−0 for enhanced flame retardancy and durability in industrial environments.

The filter design includes a low leakage current of 1.73 mA and a capacitance of 2 pF, providing effective suppression of conducted EMI noise while maintaining power quality. It is rated for operation between -25°C minimum and 100°C maximum temperature, enabling reliable performance in harsh and variable ambient conditions.

Key electrical characteristics include an inductance of 4 mH and a double stage configuration, optimizing noise attenuation and insertion loss. The compact size with dimensions of 59 mm length, 177 mm depth, and 53 mm height allows for integration into tight enclosures or system boards.

Certified to UL 1283 and approved by ENEC10 as well as cUL, this EMC filter meets stringent international safety and quality standards. It is ideal for industrial, commercial, and laboratory electronic applications where power line noise must be minimized to ensure sensitive device functionality.

This EMC filter is designed for chassis mount installation with screw termination. It operates efficiently at frequencies of 50 Hz and 60 Hz for varied AC and DC power systems. The filter features low leakage current of 1.73 mA and capacitance of 2 pF for optimal noise suppression.

It supports a maximum operating temperature of 100°C and minimum of -25°C for reliable operation in harsh environments. Compact dimensions (59 mm length, 177 mm depth, 53 mm height) allow easy integration into telecom and data system power supplies.

The filter has inductance of 4 mH and includes polyurethane potting complying with UL 94 V−0 flammability standards. Approvals include UL 1283, ENEC10, UL and cUL for global safety compliance. Ideal for switched mode power supplies and industrial electronic equipment requiring high insertion loss EMI filtering.
