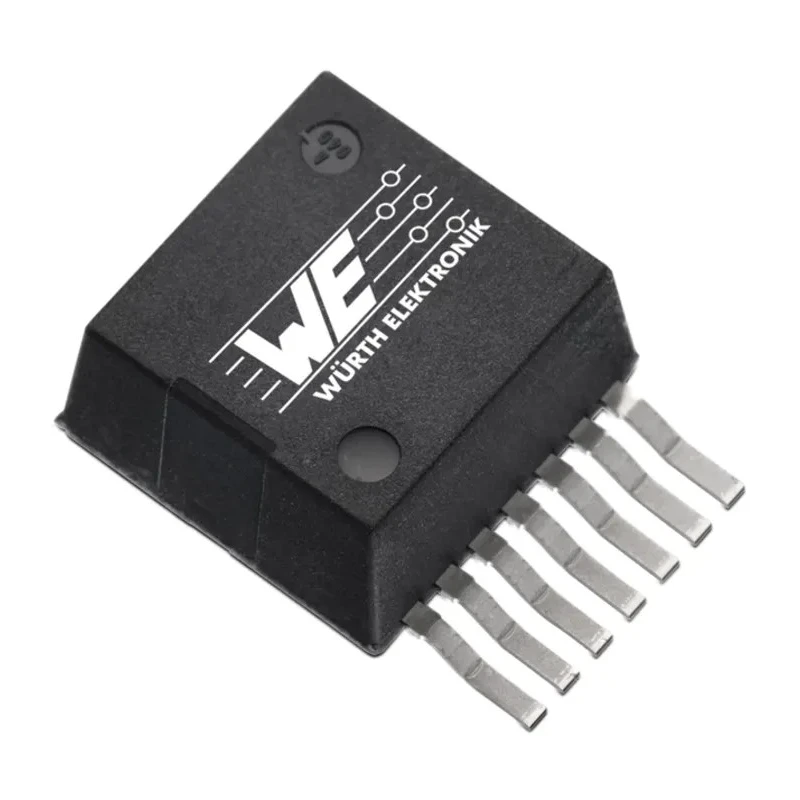

Wurth Elektronik 5-Channel Adjustable DC/DC Power Supply Module 24V 5V 7-Pin PFM 171012401

Wurth Elektronik model 171012401 is a 5-channel adjustable DC/DC power supply module designed for efficient voltage regulation across multiple outputs. It operates with input voltages ranging from 6V up to 42V and provides regulated output voltages adjustable between 5V and 24V. The step down topology ensures high power efficiency with switching frequencies up to 0.8 MHz.

This surface mount power module comes in a compact 7-pin PFM package measuring 10.16 mm in length, 9.85 mm in width, and 4.57 mm in height. It supports a maximum output current of 1A per channel, making it suitable for various embedded and industrial applications.

Built-in protections include thermal shutdown, inrush current limitation, overvoltage, undervoltage protection, and under voltage lockout (UVLO) to safeguard in diverse operating conditions. The module meets EN55022 Class B EMI standards, ensuring low electromagnetic interference suitable for sensitive electronics.

The product is RoHS and REACH compliant and is manufactured in Malaysia. Its operating temperature range from -40°C to +125°C allows deployment in harsh industrial environments. The soft-start feature enables safe powering up preventing current surges.

Applications encompass point of load DC-DC converters for industrial control systems, telecommunications equipment, microcontroller (MCU) units, microprocessor units (MPU), digital signal processors (DSP), field-programmable gate arrays (FPGA), and input/output interface modules.

Provides 5 outputs with a maximum current of 1A per channel. Utilizes step down topology for efficient voltage regulation. Compact surface mount module with 7-pin PFM package configuration. Operates at a maximum switching frequency of 0.8 MHz ensuring high efficiency.

Equipped with thermal shut-down, inrush current, overvoltage and undervoltage protection. Designed to withstand operating temperatures from -40°C to 125°C. Complies with EN55022 Class B EMI standards for low noise operation.

Manufactured in Malaysia with a compact size: length 10.16 mm, width 9.85 mm, height 4.57 mm. Ideal for point of load DC-DC conversion in industrial control, telecom, MCU, MPU, DSP, FPGA applications. Includes soft-start feature for safe power up.
