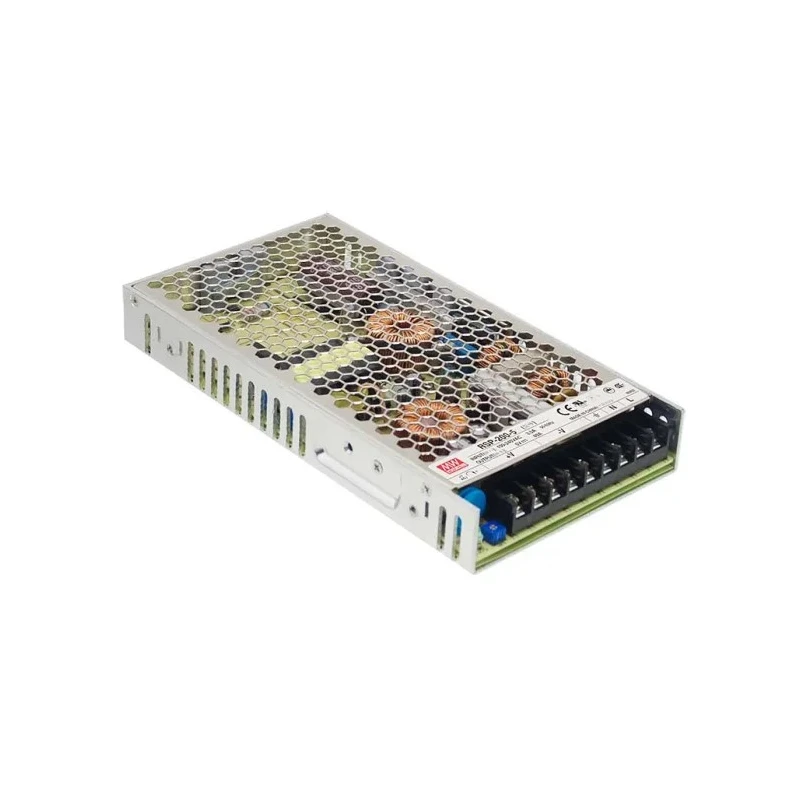

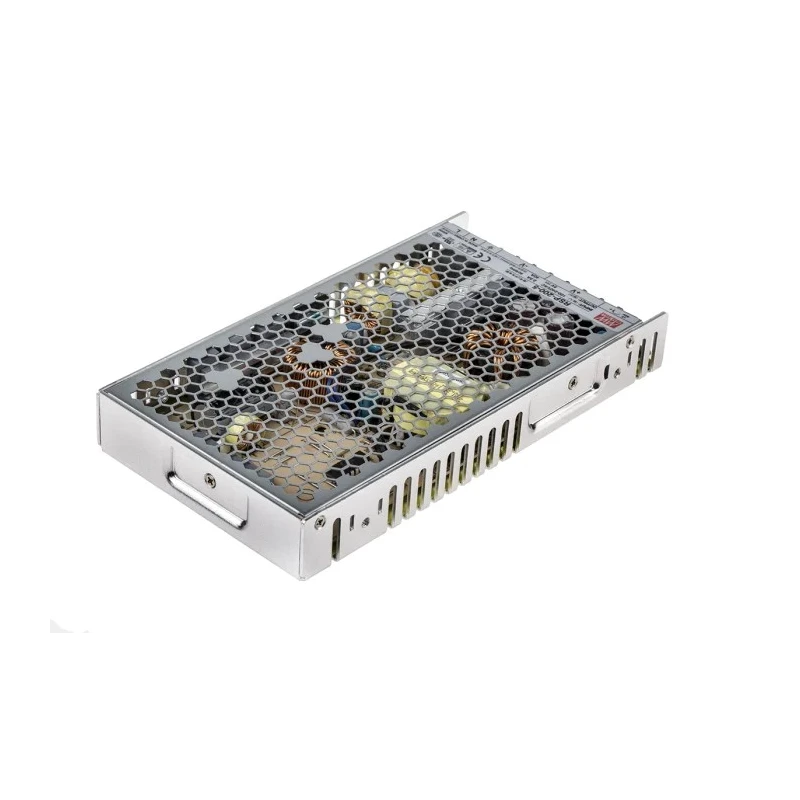

MEAN WELL Switching Power Supply 5V DC 200W 370V DC 264V AC Chassis Mount RSP-200-5

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL Switching Power Supply 5V DC 200W 370V DC 264V AC Chassis Mount RSP-200-5

Name: MEAN WELL Switching Power Supply 5V DC 200W 370V DC 264V AC Chassis Mount RSP-200-5
Brand: MEAN WELL
SKU: 368910
Price: 86.87 USD
Availability: InStock



Category Switching Power Supply Brand MEAN WELL Condition New

Specifications

Country of Origin	China
Brand	MEAN WELL
Power	200W
Efficiency	87%
Length	215mm
Model	RSP-200-5
Depth	30mm
Gross Weight	720g
Width	115mm
Mount Type	Chassis
Series	RSP-200
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-30°C
Number of outputs	1
Maximum Input Voltage	370, 264V dc
Maximum Output Voltage	5V dc
SMPS Output Current	40A
Minimum Input Voltage	88V ac

Key Features

Delivers maximum output voltage of 5V DC and output current of 40A.
Universal AC input voltage range from 88V AC to 264V AC and DC input up to 370V DC.
Equipped with built-in active power factor correction achieving power factor >0.95.
High efficiency up to 90% with convection cooling through a 1U low profile design (30mm height).
Features protection against short circuit, overload, over voltage and over temperature.
Operating temperature range from -30°C to +70°C for versatile industrial applications.
Complies with multiple international standards including UL, TUV, CSA, CCC, and others.
Ideal for use in industrial automation systems, mechanical and electrical industries, instrumentation, and LED displays.

Product Description

MEAN WELL RSP-200-5 Switching Power Supply is designed for efficient energy conversion in industrial and electronic applications. This chassis-mounted power supply delivers a regulated 5V DC output at 200W power rating with a single output channel rated at 40A.

The unit accepts a broad AC input voltage range from 88V to 264V and can also operate from DC input up to 370V. Built with advanced active power factor correction, the device maintains a power factor greater than 0.95 and achieves up to 90% efficiency, reducing energy losses and heat generation. Its 1U low profile (30mm height) and compact footprint (215mm length x 115mm width) supports limited-space installations requiring convection cooling without fans, ensuring silent operation.

Designed robustly, it incorporates multiple protections including short circuit, overload, over voltage, and over temperature safeguards, enhancing operational safety and reliability. The device performs reliably across a wide temperature spectrum from -30°C to +70°C, suitable for demanding environments.

Compliant with a range of international standards such as UL 62368-1, TUV, CSA C22.2 No. 62368-1, CCC, BSMI, EAC TP TC 00, IS 13252(Part 1), and AS/NZS62368.1, this power supply meets regulatory and safety requirements globally. With a weight of 720 grams, it is compact, easily mountable, and suitable for applications including industrial automation, electrical machinery, instrumentation, and LED display systems.

Delivers stable 5V DC output at 40A current. Universal AC input range and wide DC input compatibility for flexible deployment. High efficiency with active power factor correction for energy savings. Multiple protection features for safe and reliable operation.

Convection cooling with low profile design minimizes noise and space usage. Wide operating temperature ensures performance in varied environments. International safety standards compliance ensures product reliability. Compact and lightweight design eases integration into electronic systems.

Suitable for industrial automation, electrical, instrumentation and display applications. Explore a wide range of switching power supplies and related power components within the Electronics & Electricals category on EnvMart.
