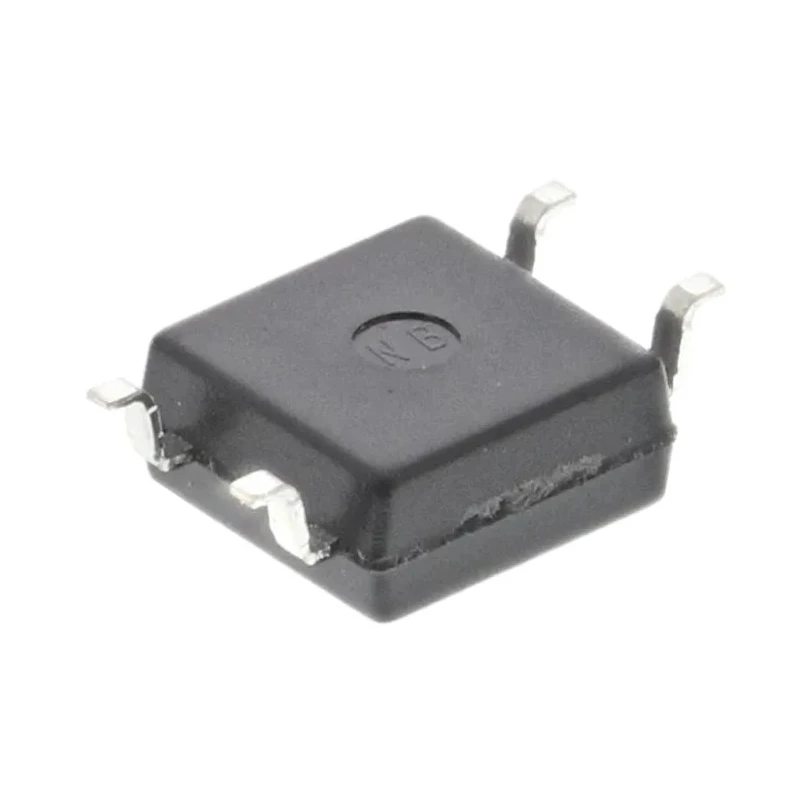

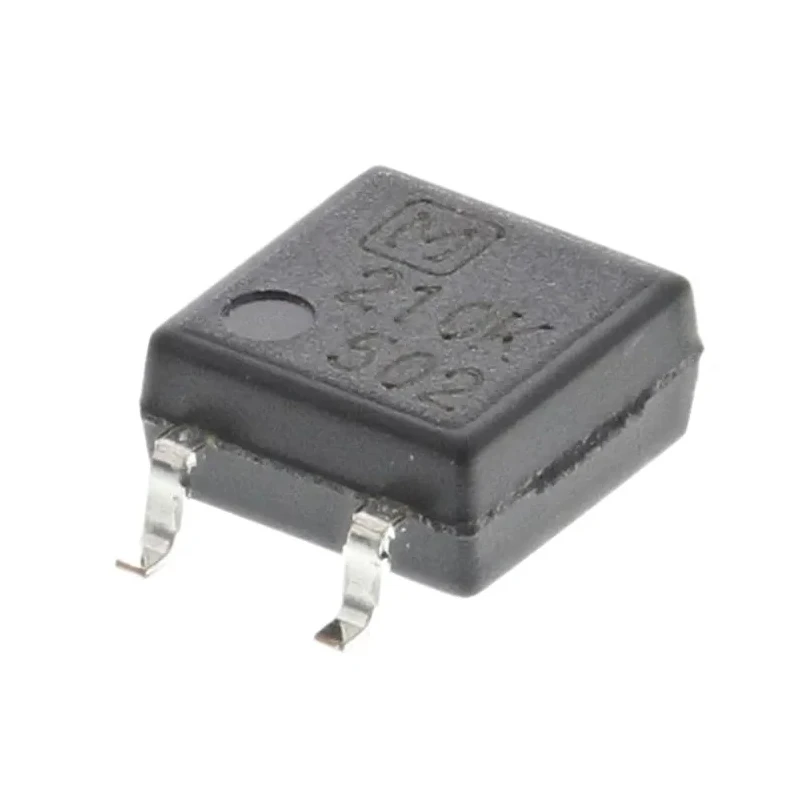

Panasonic PhotoMOS AQY Series Solid State Relay PCB Mount 350 V Load 0.12 A Load 1.5 V Control AQY210KS

Panasonic AQY210KS PhotoMOS Series Solid State Relay PCB Mount is engineered for precise low-level analog signal control applications. It supports a maximum load current of 0.12 A and can switch loads up to 350 V with a minimal control voltage of 1.14 V to a maximum of 1.5 V. This relay is surface-mounted on a SOP-4 package, enabling compact integration on printed circuit boards.

Designed to deliver reliable performance, the AQY210KS model features a single-pole single-throw (SPST) contact configuration with a low on-state resistance of 23.5 Ω and very low off-state leakage current of 1 μA, minimizing power consumption in off states.

The device operates effectively within a wide temperature range from -40°C to 85°C, suitable for industrial, manufacturing, HVAC, and automation systems. Its compact physical dimensions (4.3 mm length × 4.4 mm width × 2.1 mm height) allow for high-density PCB layouts where space optimization is critical.

Panasonic’s PhotoMOS AQY Series relays are UL, RoHS, and cUL certified, assuring compliance with key safety and environmental standards. The use of MOSFET output technology enhances switching efficiency, durability, and electromagnetic compatibility, making these relays highly suitable for electrical and automation control gear applications.

Typical use cases for this solid state relay include signal conditioning, low-level current switching, circuit isolation, and automated electronics controls across industrial, laboratory, and commercial environments.

The Solid State Relay is designed for low-level analog signal control. Features a surface mount SOP-4 package suitable for PCB mounting. Maximum load current of 0.12 A and load voltage up to 350 V are supported. Operates with a low control voltage range between 1.14 V minimum and 1.5 V maximum.

Low off-state leakage current of 1 μA ensures minimal power loss. Has a contact configuration of SPST with low on-state resistance of 23.5 Ω. Operates reliably within a temperature range of -40°C to 85°C. Compact dimensions of 4.3 mm length, 4.4 mm width, and 2.1 mm height optimize PCB space.

Complies with UL, RoHS, and cUL standards ensuring quality and safety. Output type is MOSFET, providing efficient solid state switching. Explore the full range of Panasonic relays and solid state devices at EnvMart for trusted industrial and automation solutions.
