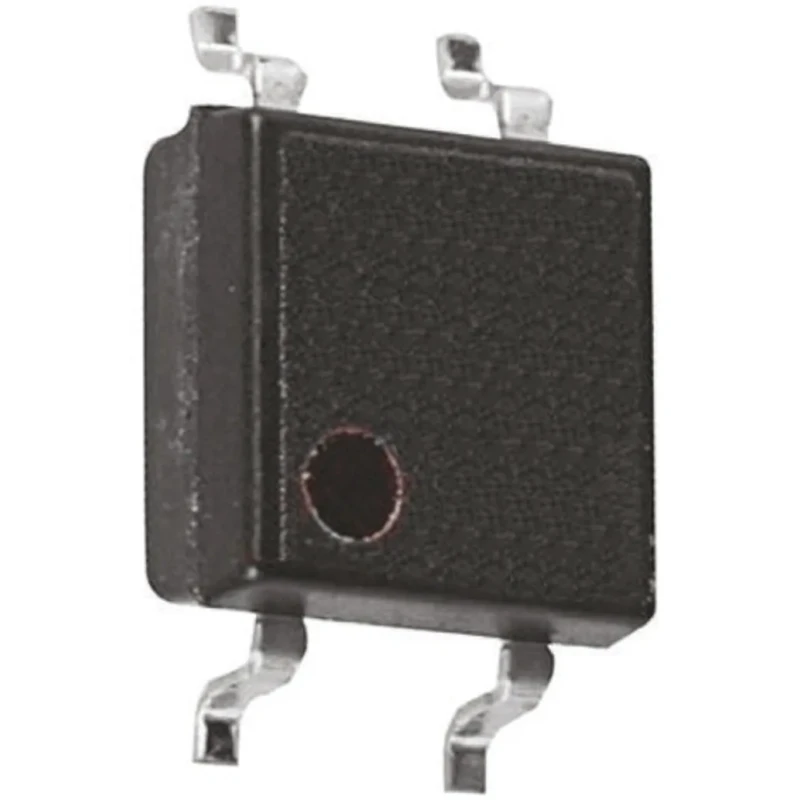

Panasonic PhotoMOS AQY Series Solid State Relay 0.7A Load, PCB Mount, 80V Load, 1.5V Control AQY225R1S
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 2.1mm |
| Length | 4.3mm |
| Model | AQY225R1S |
| Width | 4.4mm |
| Mount Type | PCB |
| Output type | MOSFET |
| Series | PhotoMOS AQY |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Package Type | SOP-4 |
| Minimum Operating Temperature | -40°C |
| Terminal type | Surface Mount |
| Maximum Load Current | 0.7A |
| Standards/Approvals | cUL, RoHS, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-6617Brand: PanasonicManufacturers Part No.: AQY225R1S |
| Maximum Load Voltage | 80V |
| Minimum Load Voltage | 0V |
| Minimum Control Voltage | 1.14V |
| Maximum Control Voltage | 1.5V |
| Off State Leakage Current | 10nA |
| On State Resistance | 23.5Ω |
Key Features
- Designed for low-level analog signal control applications.
- Maximum load current capacity of 0.7A ensures efficient switching performance.
- Compact surface mount design with SOP-4 package type for PCB integration.
- Low on-state resistance of 23.5 ohms reduces power loss and heat generation.
- Operates reliably between -40°C to 85°C for varied environments.
- Uses a MOSFET output type with SPST contact configuration for precise control.
- Low off-state leakage current of 10nA contributes to power saving.
- Complies with cUL, RoHS, and UL standards for quality assurance.
Product Description
Panasonic AQY225R1S PhotoMOS AQY Series Solid State Relay is engineered for controlling low-level analog signals with high efficiency and reliability. This solid state relay supports a maximum load current of 0.7A and a maximum load voltage of 80V, making it ideal for various industrial and electronics PCB applications requiring precise and low power signal switching.
The device features a compact SOP-4 surface mount package with dimensions of 4.3mm length, 4.4mm width, and 2.1mm height, facilitating easy integration into dense circuit boards. The relay operates at a minimum control voltage of 1.14V up to a maximum of 1.5V, enabling low voltage control signals to operate the load.
With an impressively low on-state resistance of 23.5 ohms and minimal off-state leakage current of 10nA, this relay ensures low power loss and high efficiency. Its SPST contact configuration and MOSFET output type provide high-speed switching and reliable performance over a wide temperature range from -40°C to 85°C.
Manufactured in Japan and certified to meet cUL, RoHS, and UL standards, the AQY225R1S offers high quality and safety assurance for industrial automation, electronics manufacturing, and instrumentation applications.
Designed for low-level analog signal control applications. Maximum load current capacity of 0.7A ensures efficient switching performance. Compact surface mount SOP-4 package for easy PCB integration. Low on-state resistance reduces power loss and heat generation.
Wide operating temperature range suitable for diverse environments. MOSFET output type and SPST configuration provide precise control. Minimal off-state leakage current enhances energy efficiency. Compliant with cUL, RoHS, and UL standards guaranteeing safety.
Manufactured in Japan ensuring premium build quality.
This solid state relay is optimal for use in industrial automation, signal conditioning, electrical and electronics manufacturing, as well as control systems requiring reliable low voltage switching. Browse the Electronics & Electricals category on EnvMart for more Panasonic Solid State Relays and related products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current capacity of this model is 0.7A, ensuring efficient switching performance for low-level analog signals.
This solid state relay supports a maximum load voltage of 80V, making it suitable for various industrial applications.
The SOP-4 package has dimensions of 4.3mm in length, 4.4mm in width, and 2.1mm in height, facilitating easy PCB integration.
The AQY225R1S operates reliably within a temperature range of -40°C to 85°C, suitable for varied environments.
It uses a MOSFET output type, which provides high-speed switching and precise control for low-level analog signals.
The on-state resistance of this solid state relay is 23.5 ohms, which helps reduce power loss and heat generation during operation.
The minimum control voltage required for this relay to operate is 1.14V, allowing for low voltage control signals.
The off-state leakage current is 10nA, contributing to energy efficiency during operation.
This solid state relay complies with cUL, RoHS, and UL standards, ensuring quality and safety assurance.
The relay features an SPST contact configuration, which is suitable for precise control applications.
This model is manufactured in Japan, ensuring a high standard of build quality.
It utilizes a PCB mount type, allowing for easy integration into printed circuit boards.
