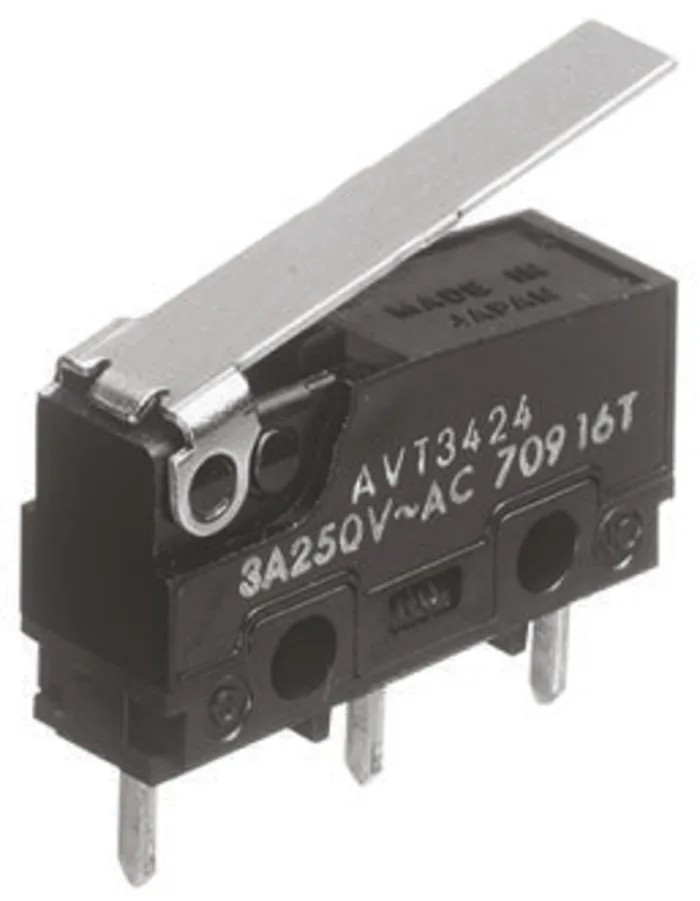

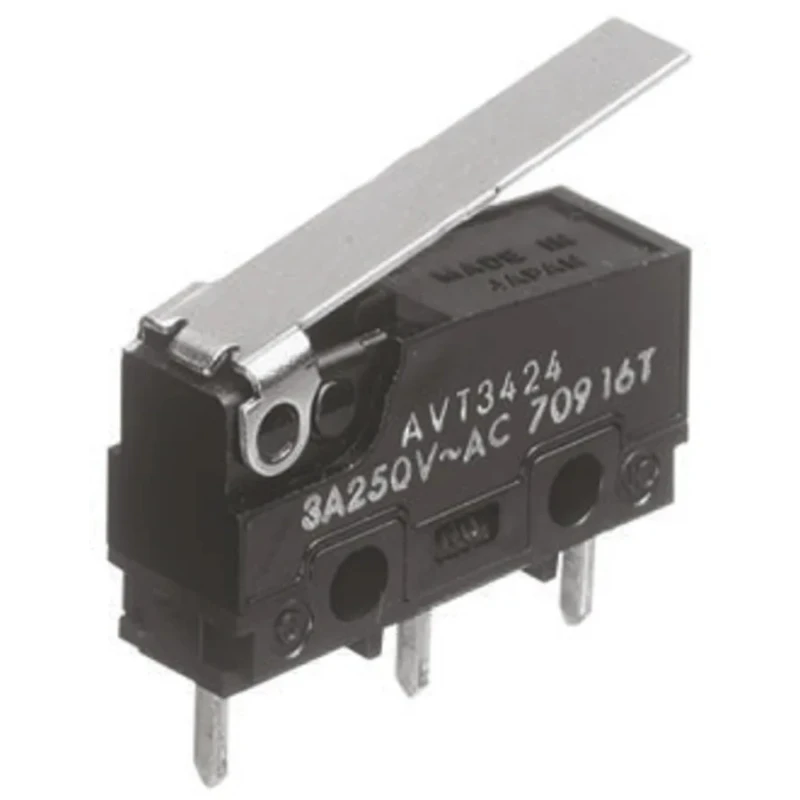

Panasonic Hinge Lever Micro Switch PCB Terminal 3A 250V AC SPCO AVT34223-A
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Model | AVT34223-A |
| Series | AVT |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPCO |
| Actuator Type | Hinge Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | CSA, VDE, UR, RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-0574Brand: PanasonicManufacturers Part No.: AVT34223-A |
| Switch Contact Current | 3A |
| Operating Force | 0.12N |
| Mechanical Life | 500000Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Subminiature |
Key Features
- Features a hinge lever actuator for precise control.
- Equipped with PCB terminals compatible with printed circuit boards.
- Supports a switch contact current of 3 amperes for reliable operation.
- Designed with a single pole changeover (SPCO) contact configuration.
- Operates with a minimal operating force of 0.12 Newtons.
- Operational temperature ranges from -25°C to 85°C making it suitable for varying environments.
- Subminiature design ideal for compact electronic devices.
- Capable of handling contact AC voltage up to 250V AC.
Product Description
Panasonic AVT34223-A Hinge Lever Micro Switch is a subminiature, high-precision switch designed for various electronic and electrical applications requiring reliable micro-level switching. This switch features a hinge lever actuator and PCB terminals for easy and secure mounting on printed circuit boards.
With a contact rating of 3A at 250V AC and a single pole changeover (SPCO) contact design, it ensures efficient electrical switching performance in control systems. The minimal operating force of 0.12N allows sensitive actuation, suitable for precision tasks.
Engineered to operate reliably within a temperature range of -25°C to 85°C, it is well-suited for demanding conditions in communication equipment, vending machines, security systems, data systems, and medical devices.
This switch series features a flux-resistant construction and integrally moulded terminals enhancing durability and ease of installation. It meets stringent certifications including CSA, VDE, UR, and RoHS, complying with safety and environmental standards.
Hinge lever actuator enables precise mechanical operation. PCB terminal type supports secure, solderable connections. Rated mechanical life of 500,000 operations for extended reliability. Flux-resistant and subminiature design for compact and harsh environment use.
Wide operating temperature capability from -25°C to 85°C. Compliance with multiple international safety and environmental standards.
These qualities make the Panasonic AVT34223-A micro switch ideal for industrial automation, electronic control panels, and other electrical automation systems requiring dependable switching components.
Package contents consist solely of the micro switch with the specified characteristics. Explore more from the Micro Switch category at EnvMart for complementary electrical switching solutions and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating is 3A.
It can handle a maximum AC voltage of 250V.
This model features a hinge lever actuator for precise control.
The operating temperature range is from -25°C to 85°C.
The minimum operating force is 0.12 Newtons.
It has a mechanical life rating of 500,000 operations.
It is equipped with PCB terminals for secure mounting on printed circuit boards.
It complies with CSA, VDE, UR, and RoHS standards.
The micro switch is manufactured in Thailand.
It is suitable for applications in communication equipment, vending machines, security systems, data systems, and medical devices.
The contact configuration is single pole changeover (SPCO).
It is designed as a subminiature micro switch, ideal for compact electronic devices.
