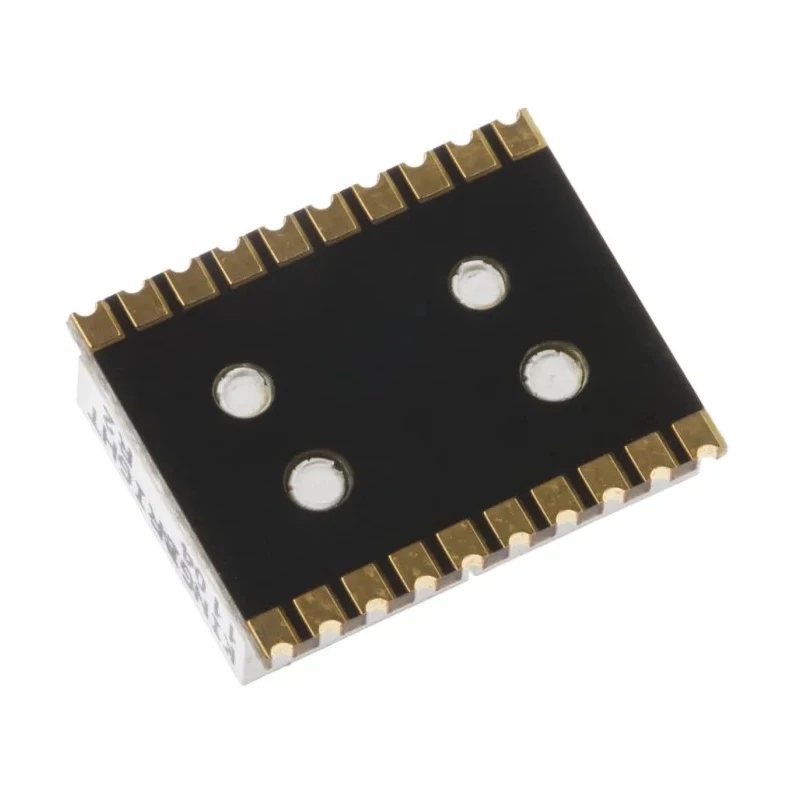

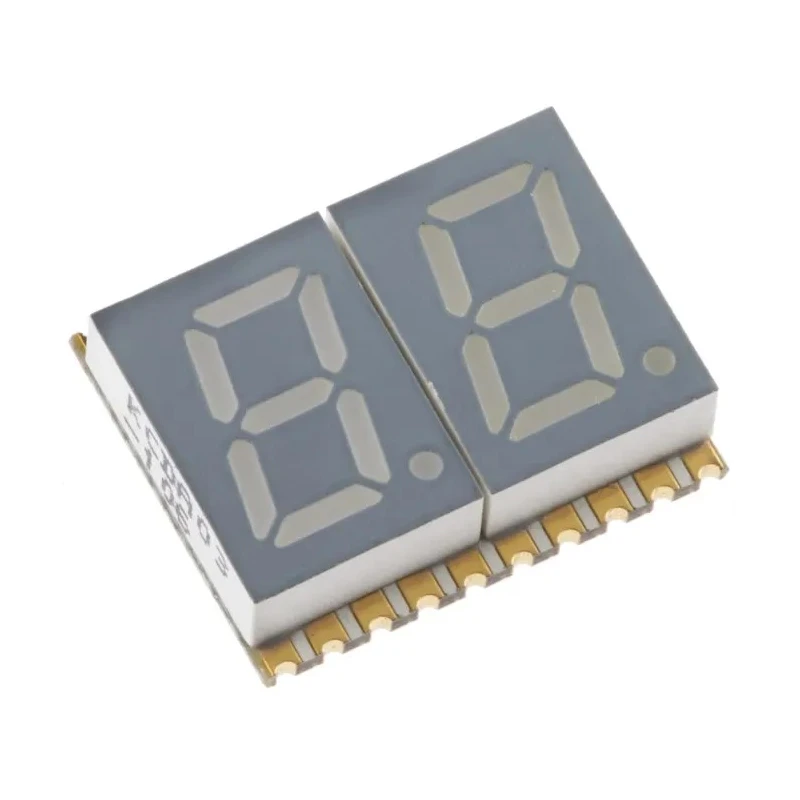

Kingbright 2-Digit 7 Segment LED Display Anode Orange 46mcd Right Side 7.6mm KCDA03-106
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | KCDA03-106 |
| Mount Type | Surface |
| Character height | 7.6mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 14.8mm |
| External Depth | 3.8mm |
| External Height | 12mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 46mcd |
| Standards/Approvals | RoHS |
| LED Colour | Orange |
| Dominant Wavelength | 601nm |
| Colour of Face | Grey |
| Forward Voltage | 2.1V |
| Forward Current | 30mA |
| Number of Characters | 2 |
| Character Width | 4.2mm |
| Common Connection | Anode |
| Decimal Orientation | Right Side |
Key Features
- Displays two characters with seven segments for clear numeric visualization.
- Orange LED color with a dominant wavelength of 601nm ensures high contrast readability.
- Character height of 7.6mm and width of 4.2mm provides compact display size.
- Surface mount type with an anode common connection for easy PCB integration.
- Operates comfortably between -40°C and 85°C for wide environmental tolerance.
- Low forward voltage of 2.1V and power dissipation of 75mW supports energy-efficient usage.
- Typical forward current of 30mA ensures consistent illumination.
- Grey face with white segments improves visibility and aesthetic appeal.
Product Description
Kingbright KCDA03-106 is a dual-digit 7 segment LED display designed for precise numeric output with excellent visibility. The orange LEDs provide a luminous intensity of 46mcd with a dominant wavelength of 601nm, delivering a bright and clear display optimized for right side decimal orientation. With a character height of 7.6mm and width of 4.2mm, this compact display is ideal for surface mounting on printed circuit boards using the anode common connection type.
The robust design includes a grey face and white segments, enhancing contrast and legibility in various lighting conditions. The display operates reliably over a wide temperature range from -40°C to 85°C, making it suitable for diverse industrial and commercial environments. Its low forward voltage of 2.1V and modest power dissipation of 75mW facilitate energy-efficient operation while maintaining consistent forward current of 30mA.
This LED display module is compliant with RoHS standards, ensuring it meets environmental and safety regulations. It is mechanically rugged, providing durability for long-term use in electronic devices including instrumentation, control panels, measurement instruments, and industrial equipment.
Displays two characters with high on/off contrast for numeric readouts. Orange LED color with dominant wavelength 601nm for vibrant illumination. Surface mount for ease of PCB integration with anode common connection. Wide operating temperature range from -40°C to 85°C.
Low forward voltage of 2.1V and power dissipation 75mW enhance efficiency. Grey face and white segments improve display clarity and contrast. RoHS compliant and environmentally safe for industrial applications. Suitable for industrial, laboratory, instrumentation, and commercial electronic devices.
Kingbright KCDA03-106 is an ideal choice for engineers and technicians requiring reliable numeric displays in compact form factors. Explore EnvMart’s broad range of electronic display modules for additional compatible products and accessories.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The character height of this model is 7.6mm.
It has a luminous intensity of 46mcd.
The forward voltage for this display is 2.1V.
This model operates comfortably between -40°C and 85°C.
It features an anode common connection for easy PCB integration.
The external dimensions are 14.8mm in width, 3.8mm in depth, and 12mm in height.
The LED color is orange with a dominant wavelength of 601nm.
The power dissipation is 75mW.
The face of the display is grey with white segments.
Yes, it is RoHS compliant, meeting environmental and safety regulations.
This model is suitable for use in industrial, laboratory, instrumentation, and commercial electronic devices.
