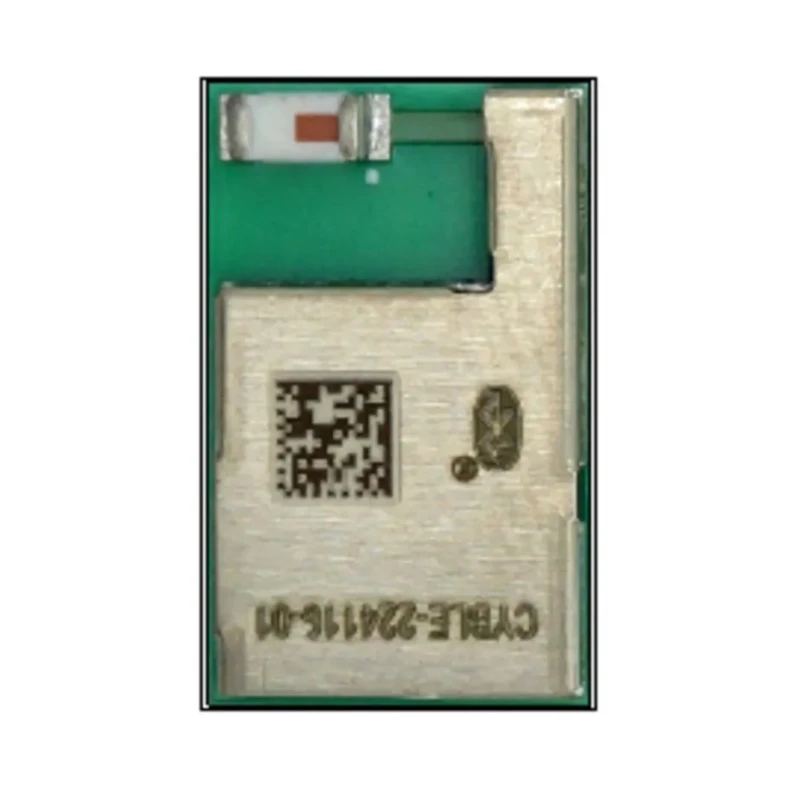

Infineon Bluetooth Module CYBLE-224116-01 Bluetooth 4.2 1Mbps Data Rate GPIO Interface CYBLE-224116-01
Specifications
| Country of Origin | India |
|---|---|
| Frequency | 2.5GHz |
| Brand | Infineon |
| Height | 1.8mm |
| Length | 15.4mm |
| Model | CYBLE-224116-01 |
| Width | 9.5mm |
| Series | CYBLE-224116-01 |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Receiver Sensitivity | -95dBm |
| Interface Type | GPIO |
| Bluetooth Version | 4.2 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2V |
| Bluetooth Class | Class B |
| Module Size | 9.5 mm x 15.4 mm x 1.80 mm (with shield) |
| Extended industrial temperature range | -40 °C to +105 °C |
| Extended Range | Up to 400 meters line-of-sight |
Key Features
- Supports Bluetooth version 4.2 for reliable wireless communication.
- Operates within a frequency of 2.5GHz ensuring optimal connectivity.
- Maximum output power of 9.5dBm and receiver sensitivity of -95dBm for extended range.
- Extended industrial operating temperature range from -40°C to 105°C for harsh environments.
- Compact module size of 9.5 mm x 15.4 mm x 1.8 mm with shield for easy integration.
- Up to 25 GPIO pins enabling versatile hardware interfacing.
- Includes 256-KB flash memory and 32-KB SRAM for on-board processing.
- Powered by a 32-bit processor running at up to 48 MHz for efficient computation.
Product Description
Infineon CYBLE-224116-01 Bluetooth Module 4.2 is a high-performance wireless communication module designed for industrial and commercial applications requiring Bluetooth Low Energy connectivity. Operating at 2.5 GHz frequency and supporting Bluetooth 4.2 standard, this module delivers a data rate of 1Mbps with a maximum output power of 9.5 dBm and receiver sensitivity of -95 dBm, providing reliable communication within extended range up to 400 meters line-of-sight.
The compact 9.5 mm by 15.4 mm by 1.8 mm module with shield offers a robust extended industrial temperature range from -40 °C to 105 °C, making it suitable for harsh environments in sectors such as industrial automation, HVAC control, manufacturing equipment, and IoT devices.
The module includes up to 25 General Purpose Input/Output (GPIO) pins, 256-KB flash memory, and 32-KB SRAM, powered by a 32-bit processor achieving 0.9 DMIPS/MHz single-cycle 32-bit multiply operation at frequencies up to 48 MHz. Advanced programmable analog blocks including four operational amplifiers, a 12-bit 1-Msps SAR ADC, low-power comparators, and a Cypress CapSense touch controller with SmartSense Auto-Tuning enhance versatility for sensor interfacing and control applications.
The programmable digital blocks consist of four universal digital blocks, four 16-bit Timer/Counters/PWM blocks, and two serial communication blocks providing flexible communication capabilities. A watchdog timer with a dedicated internal low-speed oscillator (ILO) increases system reliability by enabling automatic recovery from software errors.
This Bluetooth module requires a supply voltage range of 2.0 V minimum to 3.6 V maximum, ensuring compatibility with a broad spectrum of power designs. Its GPIO interface simplifies integration into custom hardware designs.
Supports Bluetooth version 4.2 for modern wireless protocols. Extended industrial temperature range suitable for harsh conditions. Compact shielded module size for easy board-level integration. Rich set of programmable analog and digital peripherals for complex use cases.
Suitable for industrial automation, IoT devices, wireless sensor networks, manufacturing, and HVAC control. Explore the range of Bluetooth Modules at EnvMart for industrial and commercial wireless communication solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this module is 105°C.
It supports a data rate of 1 Mbps.
This model operates within a frequency of 2.5 GHz.
The receiver sensitivity is -95 dBm, allowing for extended range communication.
The module dimensions are 9.5 mm x 15.4 mm x 1.8 mm, including the shield.
The minimum supply voltage required is 2.0 V.
It is suitable for industrial automation, IoT devices, wireless sensor networks, manufacturing, and HVAC control.
The maximum output power is 9.5 dBm.
This model uses a GPIO interface for easy integration into custom hardware designs.
