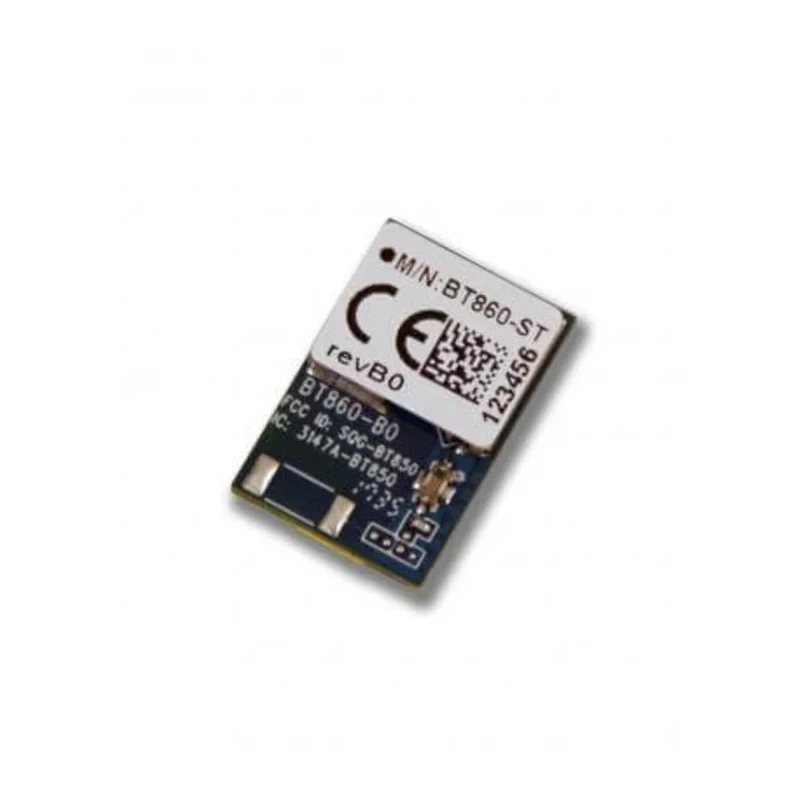

Ezurio Bluetooth Module Class 1 UART I2S Interface 3Mbps Data Rate 3-3.6V DVK-BT860-SA

Ezurio DVK-BT860-SA Bluetooth Module utilizes the Cypress CYW20704 A2 chipset to provide advanced wireless connectivity with exceptional low power consumption and extended range performance.

This Class 1 Bluetooth 5.0 Dual Mode module supports UART and I2S interface types, enabling seamless integration into embedded systems requiring fast data rates up to 3 Mbps at 2.48 GHz frequency.

The integrated antenna ensures high radiation gain and efficiency, while effective interference rejection enhances coexistence with multi-communication systems such as GSM and WCDMA.

Operating voltage ranges from a minimum of 3 V to a maximum of 3.6 V, making it ideal for low power IoT devices. The module's temperature tolerance from -30°C up to 85°C allows deployment in diverse environmental conditions.

Compact size with a length of 12.85 mm and width of 8.5 mm facilitates space-saving design in industrial and commercial electronics. Certified to stringent global standards including RCM, CE, KC, FCC, IC, and Giteki, this Bluetooth module ensures compliance and reliability in wireless communications.

Applications span industrial automation, IoT gateways, medical instrumentation, consumer electronics, and other communication systems requiring stable Bluetooth low energy connectivity.

This module supports Dual Mode Bluetooth 5.0 with UART and I2S interfaces. Operates on a supply voltage range of 3 to 3.6 volts for low power consumption. Achieves a maximum output power of 8 dBm with receiver sensitivity down to -94 dBm.

Features integrated antenna design with high radiation gain and excellent interference rejection. Compact dimensions with length 12.85 mm and width 8.5 mm suitable for embedded applications. Operates reliably across a temperature range from -30°C to 85°C.

Complies with multiple international standards and approvals including RCM, CE, KC, FCC, IC, and Giteki. Ideal for OEMs needing robust wireless communication with multi-communication system coexistence. Explore the extensive catalog of Bluetooth Modules at EnvMart for complementary wireless communication solutions.
