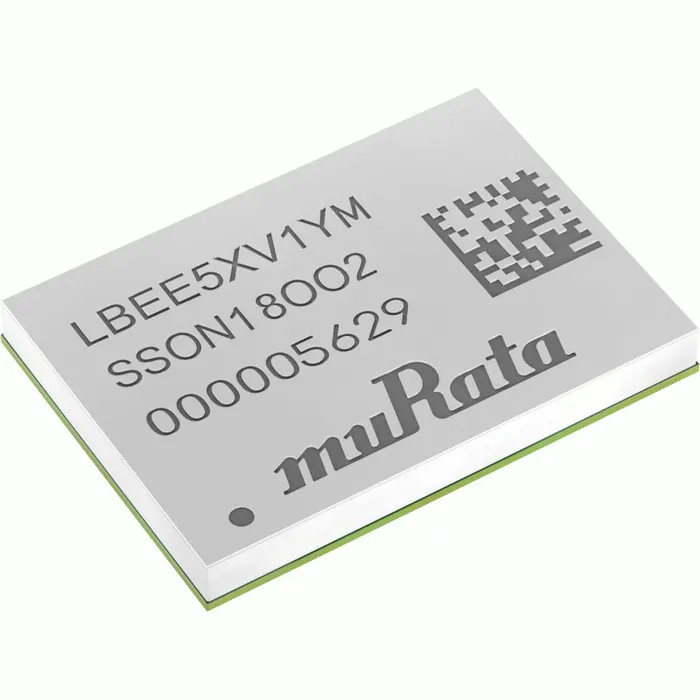

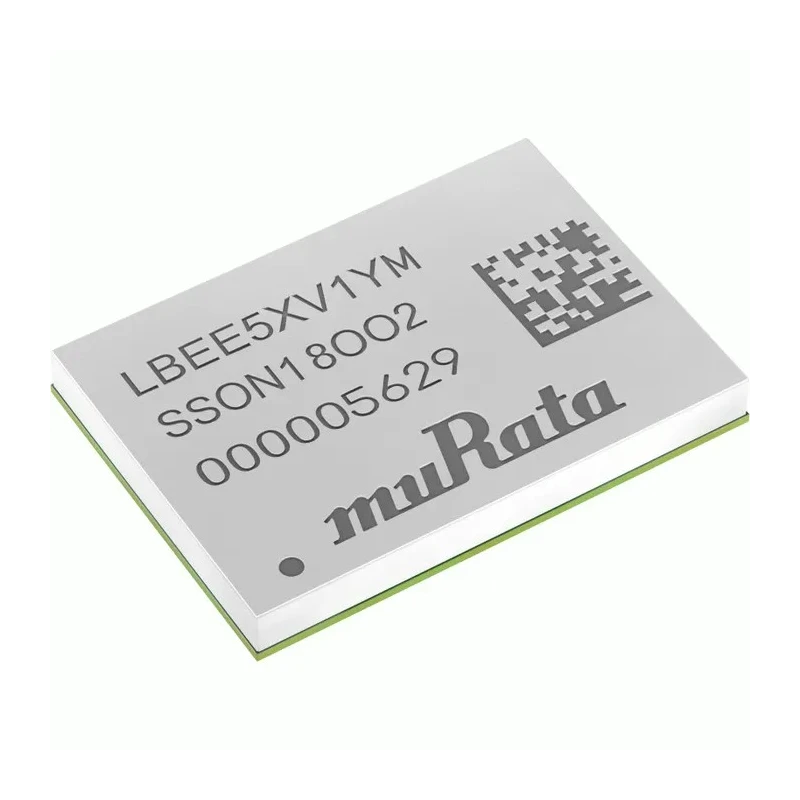

Murata Bluetooth Module LBEE5XV1YM-574 5.2, Class 1, 6dBm, 2483.5MHz, SDIO UART USB Interface LBEE5XV1YM-574
Specifications
| Country of Origin | China |
|---|---|
| Frequency | 2483.5MHz |
| Brand | Murata |
| Model | LBEE5XV1YM-574 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | 30°C |
| Receiver Sensitivity | -70dBm |
| Interface Type | SDIO, UART, USB |
| Bluetooth Version | 5.2 |
| Standards/Approvals | IEEE |
| Maximum Supply Voltage | 6V |
| Bluetooth Class | Class 1 |
Key Features
- Integrates Wi-Fi 802.11a/b/g/n/ac 2x2 MIMO up to 866Mbps PHY data rate.
- Supports Bluetooth 5.2 BR/EDR/LE with maximum output power of 6dBm.
- Interfaces include SDIO 3.0, UART, USB for flexible connectivity.
- Operates over a frequency of 2483.5MHz with receiver sensitivity of -70dBm.
- Maximum supply voltage is 6V, supporting industrial operating temperatures from 30°C to 85°C.
- Complies with IEEE standards for wireless communication modules.
- Compact module designed for industrial IoT, smart home, audio, 4K video, voice, and gateway applications.
Product Description
Murata LBEE5XV1YM-574 Bluetooth Module 5.2 is a high-performance wireless communication module based on the NXP 88W8997 combo chipset. It supports dual-band Wi-Fi 2x2 MIMO with PHY data rates up to 866Mbps and Bluetooth 5.2 BR/EDR/LE at 3Mbps PHY data rate, operating at a frequency of 2483.5MHz.
The module offers versatile interface options including SDIO 3.0, UART, and USB, facilitating integration into various industrial and commercial systems. Featuring a maximum output power of 6dBm and receiver sensitivity of -70dBm, it ensures robust wireless connectivity suitable for demanding environments.
Designed for a maximum supply voltage of 6V and reliable operation within temperatures ranging from 30°C to 85°C, the LBEE5XV1YM-574 module meets IEEE approvals and is ideal for applications in industrial IoT, smart home automation, high-definition audio and video streaming, voice communication systems, and gateway devices.
The module incorporates advanced coexistence hardware algorithms for optimized performance between WLAN and Bluetooth functions. Packaged in a compact form factor, it allows easy incorporation into machinery and equipment, improving production efficiency.
Integrates Wi-Fi 802.11a/b/g/n/ac 2x2 MIMO 866Mbps PHY data rate. Bluetooth 5.2 BR/EDR/LE support with Class 1 transmit power. Supported interfaces: SDIO 3.0, UART, and USB. Operational frequency 2483.5MHz with receiver sensitivity of -70dBm.
Operating temperature range 30°C to 85°C. Industry standard IEEE compliant. Designed for IoT, smart home, audio/video streaming, and gateway applications. Explore our extensive catalog of Bluetooth Modules for diverse industrial and commercial applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this module is 6dBm.
It operates at a frequency of 2483.5MHz.
This model supports SDIO 3.0, UART, and USB interfaces for flexible connectivity.
The receiver sensitivity is -70dBm.
It operates within a temperature range of 30°C to 85°C.
This module supports Bluetooth version 5.2, including BR/EDR/LE.
Yes, it complies with IEEE standards for wireless communication modules.
The maximum supply voltage for this model is 6V.
It is designed for applications in industrial IoT, smart home automation, audio/video streaming, voice communication systems, and gateway devices.
This module belongs to Bluetooth Class 1.
The PHY data rate for Bluetooth 5.2 on this model is 3Mbps.
The country of origin for this module is China.
