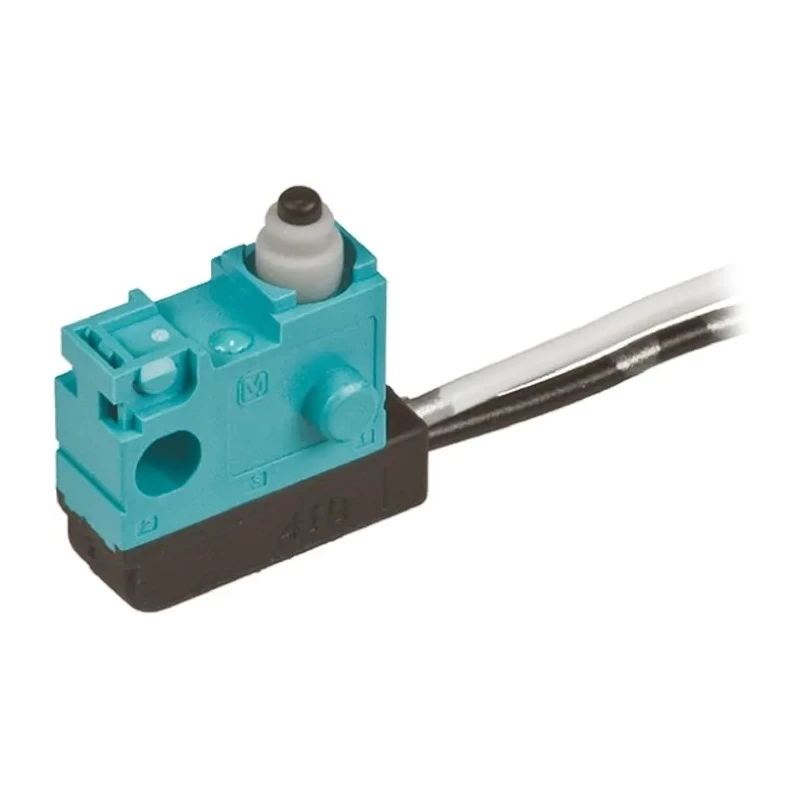

Panasonic Pin Plunger Micro Switch, Pre-Wired Terminal, 100mA, 30 V dc, SPST, IP67 ASQ10330
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Model | ASQ10330 |
| IP Rating | IP67 |
| Series | ASQ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -40°C |
| Terminal type | Pre-Wired |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-0091Brand: PanasonicManufacturers Part No.: ASQ10330 |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Operating Force | 1.5N |
| Microswitch Type | Ultra Miniature |
Key Features
- Features a pin plunger actuator for precise operation.
- Pre-wired terminal design enhances ease of installation.
- Supports contact current of 100mA ensuring low power switching.
- Single Pole Single Throw (SPST) contact configuration.
- Rated IP67 for dust tightness and immersion protection.
- Operating force is 1.5 Newton for consistent actuation.
- Suitable for temperature range from -40°C to 85°C.
- Constructed as ultra-miniature type for compact applications.
Product Description
Panasonic ASQ10330 Pin Plunger Micro Switch is a high-precision, ultra-miniature switch designed for industrial and automotive applications requiring reliable low-level switching. It features a pin plunger actuator and is equipped with a pre-wired terminal for straightforward electrical connections. Rated for a contact current of 100mA and contact voltage up to 30 V dc, it supports efficient and safe operation.
This microswitch is built with sliding contacts to achieve a high overtravel of 2.5 mm, optimizing contact force and simplifying installation and adjustment. It is engineered for silent operation while being bounce-free and hysteresis-free, improving performance stability in automation systems.
The IP67 rating guarantees complete protection against dust ingress and temporary immersion in water, making it ideal for harsh industrial environments. Operating between -40°C and 85°C, the ASQ10330 microswitch maintains performance across wide temperature ranges.
Compliant with the RoHS directive, this component ensures environmental responsibility by restricting hazardous substances. Its compact ultra-miniature design suits applications where space is limited without compromising reliability or durability.
Typical use cases include electrical automation systems, automotive switches, and industrial control panels requiring compact, precise, and robust microswitches. Pin plunger actuator provides precise mechanical operation.
Pre-wired terminal enables quick and secure electrical connections. Supports 100mA current with SPST contact configuration for simple switching functions. IP67-rated enclosure ensures protection against dust and water immersion.
Operating force of 1.5N guarantees consistent actuation. Wide temperature tolerance from -40°C to 85°C ensures versatility. Ultra-miniature build supports compact design requirements. RoHS compliant for environmentally safe use.
Manufactured in Japan, reflecting superior quality standards.
Explore EnvMart's extensive selection of industrial-grade Micro Switches and electrical automation components to find high-quality products suitable for your industrial, automotive, HVAC, and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This micro switch supports a contact current of 100mA.
The operating temperature range for this model is from -40°C to 85°C.
It features a pin plunger actuator for precise mechanical operation.
The micro switch is rated IP67, providing protection against dust ingress and temporary immersion in water.
This micro switch has a Single Pole Single Throw (SPST) contact configuration.
It comes with a pre-wired terminal design for straightforward electrical connections.
The operating force for this model is 1.5 Newtons.
It is compliant with the RoHS directive, ensuring it restricts hazardous substances.
This model is constructed as an ultra-miniature type, suitable for compact applications.
It is manufactured in Japan, reflecting high-quality standards.
Typical use cases include electrical automation systems, automotive switches, and industrial control panels.
The maximum contact voltage for this model is 30 V dc.
