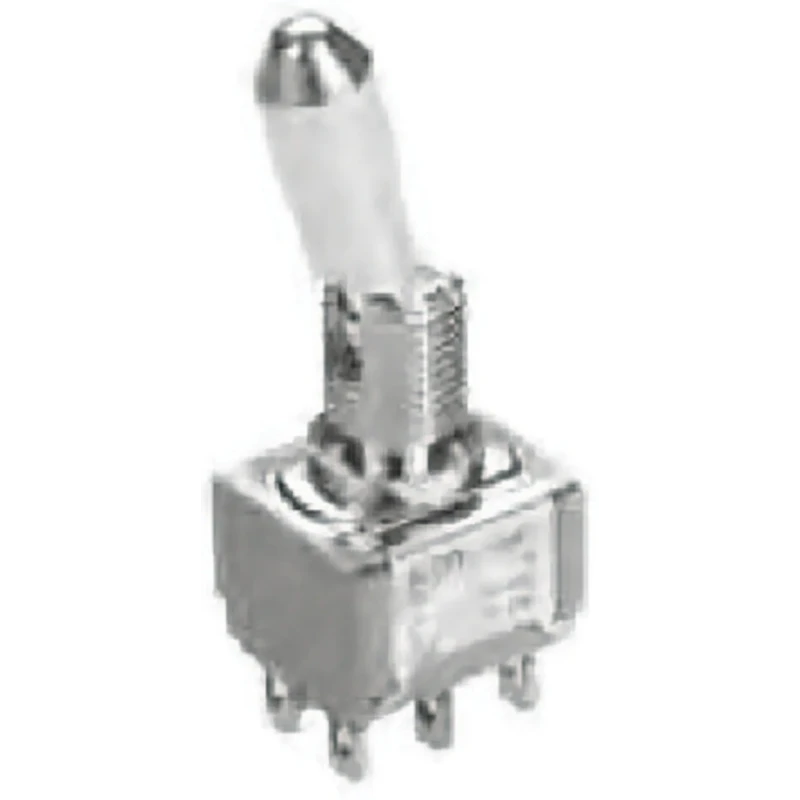

TE Connectivity Panel Mount On-On DPDT Toggle Switch 5A 28 V dc 125 V ac Gemini A Series 1825138-3
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.35in |
| Length | 0.5in |
| Width | 0.45in |
| Mount Type | Panel |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 0.25 in |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 14.71mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 125V ac |
| Actuator Material | Phenolic |
Key Features
- Features a durable phenolic actuator material for long-lasting operation.
- Panel cutout size of 0.25 inch for easy mounting in control panels.
- Epoxy sealed terminals ensure enhanced protection against environmental factors.
- Operating temperature range from -30°C to 85°C suitable for various industrial environments.
- Stainless steel frame with brass tin-plated solder support for corrosion resistance.
- Non-illuminated switch providing reliable mechanical switching.
- Part of the Gemini A series known for robust electrical components.
Product Description
TE Connectivity 1825138-3 is a panel mount toggle switch designed with On-On dual pole double throw (DPDT) configuration. Rated for 5 amperes current and suitable for electrical applications up to 28 V dc and 125 V ac, this switch is engineered for reliability in industrial and automation environments.
The switch features epoxy sealed terminals, providing protection against dust and moisture, making it suitable for harsh conditions including industrial manufacturing, control panels, and HVAC systems. The actuator is made from phenolic material, enhancing durability and operational stability over a temperature range from -30°C to 85°C.
Its stainless steel frame combined with brass tin-plated solder supports ensures effective corrosion resistance and mechanical strength. The compact size with dimensions of 0.35 inch height, 0.45 inch width, and 0.5 inch length allows easy installation in various panel setups. It requires a panel cutout size of 0.25 inch, making it compatible with standard mounting requirements.
Durable phenolic actuator material ensures long service life. Epoxy sealed terminals protect against environmental damage. Stainless steel frame with brass solder support offers corrosion resistance. Operates reliably within -30°C to 85°C temperature range.
Compact dimensions fit standard panel cutouts. 5A current rating supports robust electrical load handling. Non-illuminated On-On DPDT switch configuration for versatile control. Gemini A Series quality ensuring industrial-grade performance.
This Toggle Switch is widely used in electrical automation, manufacturing control systems, and panel assembly applications. Its high-quality materials and construction ensure dependable switching performance in demanding industrial and commercial environments.
Discover more products in the TE Connectivity catalogue at EnvMart to find compatible switches, mounting equipment, and other electrical components for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This toggle switch is rated for a current of 5 amperes.
It is suitable for 28 V dc and 125 V ac applications.
The switch features a dual pole double throw (DPDT) contact configuration.
The dimensions are 0.35 inches in height, 0.45 inches in width, and 0.5 inches in length.
The required panel cutout size is 0.25 inches.
It operates reliably within a temperature range from -30°C to 85°C.
It features solder terminals that are epoxy sealed for enhanced protection against environmental factors.
The actuator is made from phenolic material, and it has a stainless steel frame with brass tin-plated solder support.
This model is part of the Gemini A series, known for robust electrical components.
No, this is a non-illuminated toggle switch.
This switch complies with RoHS standards.
It is widely used in electrical automation, manufacturing control systems, and panel assembly applications.
