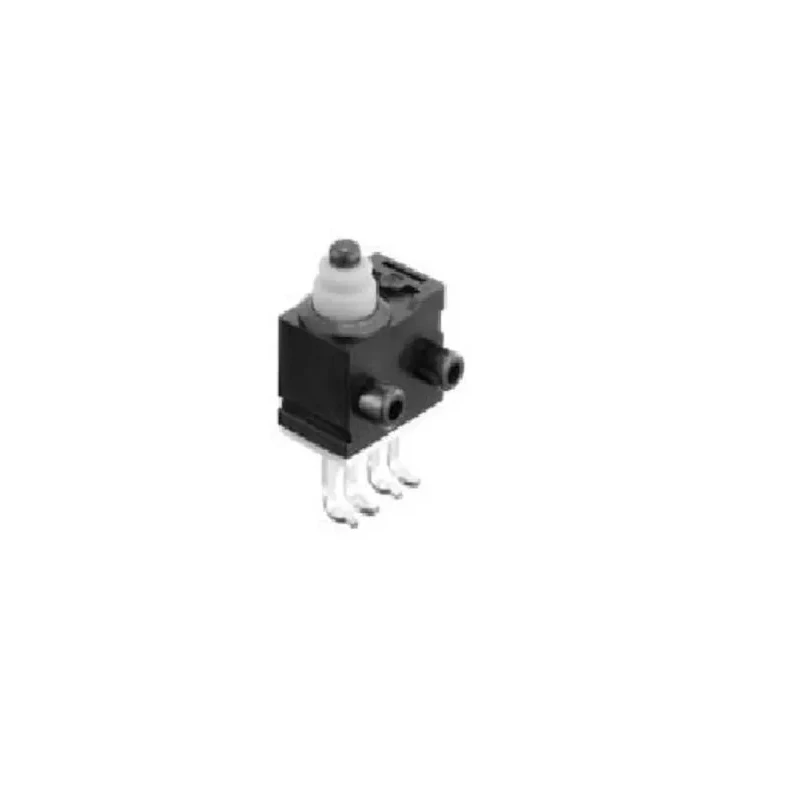

Panasonic Pin Plunger Snap Action Micro Switch 16 V dc, 50mA, SPST, IP67 ASQM17B20-A
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Model | ASQM17B20-A |
| IP Rating | IP67 |
| Series | ASQM1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | REACH, RoHS |
| Contact DC Voltage | 16V dc |
| Switch Contact Current | 50mA |
| Operating Force | 1.5N |
| Microswitch Type | Subminiature |
Key Features
- Operates with 16 V dc voltage and handles 50mA contact current.
- Features SPST contact configuration with subminiature microswitch type.
- Robust IP67 rated enclosure for protection against dust and water ingress.
- Requires 1.5N operating force for actuation ensuring precise switching action.
- Works reliably from -40°C to 85°C operating temperature range.
- Includes pin plunger actuator and solder terminal type for ease of connection.
- Complies with REACH and RoHS environmental standards.
- Ideal for automotive, household appliances, and power tool applications.
Product Description
Panasonic ASQM17B20-A pin plunger snap action micro switch is designed for reliable low-level switching applications. It features a solder terminal type with a pin plunger actuator and a single pole single throw (SPST) contact configuration. The switch supports a contact current of 50mA at 16 V dc, making it suitable for sensitive electronic control tasks.
The micro switch is rated IP67, ensuring complete protection against dust ingress and temporary water immersion, allowing its use in harsh industrial and automotive environments. The operating force required is 1.5N, providing consistent actuation without excessive wear.
Its operational temperature range from -40°C to 85°C makes it adaptable for various climatic conditions. The subminiature form factor supports compact installations in equipment such as vacuum cleaners, air conditioners, washing machines, and power tools. The switch complies with REACH and RoHS standards, ensuring environmental safety and compliance.
Applications include detection of door opening and closing, shift lever position sensing in automobiles, and use in household and industrial appliances requiring precise snap action control. The product is manufactured in Thailand, supporting high quality and reliability standards.
Operates with 16 V dc voltage and handles 50mA contact current. Features SPST contact configuration with subminiature microswitch type. Robust IP67 rated enclosure for protection against dust and water ingress. Requires 1.5N operating force for actuation ensuring precise switching action.
Works reliably from -40°C to 85°C operating temperature range. Includes pin plunger actuator and solder terminal type for ease of connection. Complies with REACH and RoHS environmental standards. Ideal for automotive, household appliances, and power tool applications.
Manufactured in Thailand for high quality and durability. Explore our extensive category of Micro Switches for more industrial grade electrical switching solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single pole single throw (SPST) contact configuration, making it suitable for various low-level switching applications.
It operates reliably within a temperature range of -40°C to 85°C, allowing for use in diverse climatic conditions.
The switch can handle a maximum contact current of 50mA, which is appropriate for sensitive electronic control tasks.
It operates at a contact DC voltage of 16V, suitable for low-level switching applications.
This unit uses a pin plunger actuator, which ensures precise actuation for reliable switching.
An operating force of 1.5N is required for actuation, providing consistent switching action without excessive wear.
It has an IP67 rating, ensuring complete protection against dust ingress and temporary water immersion.
The switch features solder terminals, which facilitate easy connection during installation.
It complies with REACH and RoHS environmental standards, ensuring safety and compliance in its applications.
This model is ideal for applications such as automotive, household appliances, and power tools, particularly for tasks requiring precise snap action control.
It is manufactured in Thailand, which supports high quality and reliability standards in production.
This unit is classified as a subminiature microswitch, suitable for compact installations in various equipment.
