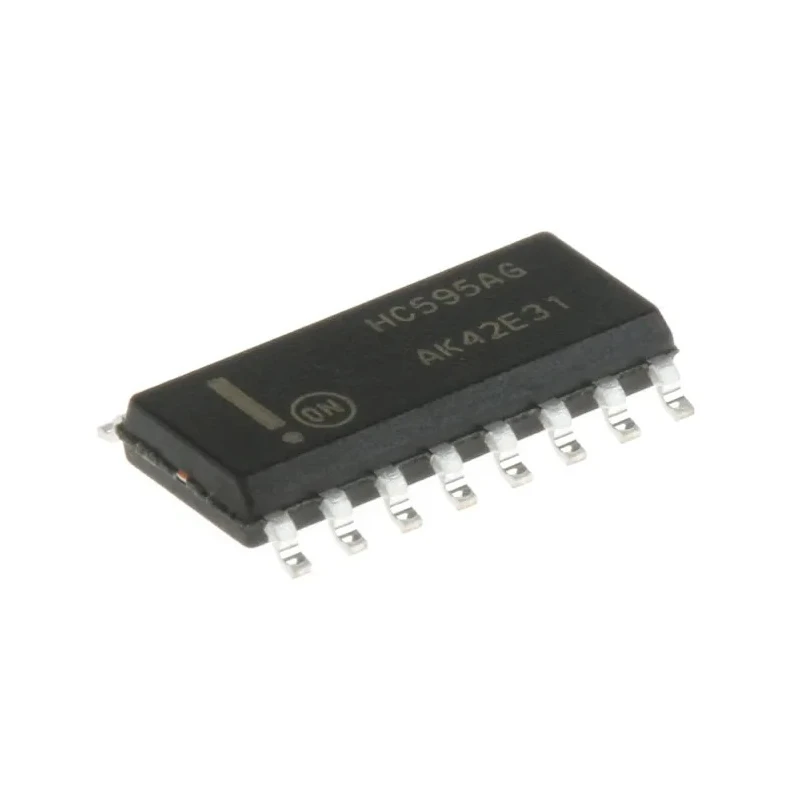

onsemi 1 Surface Mount Shift Register HC SOIC 16-Pin MC74HC595ADR2G

onsemi MC74HC595ADR2G is a high-speed CMOS logic surface mount shift register provided in a 16-pin SOIC package. Designed for electronic applications requiring reliable and compact shift registers, it supports operating voltages from 2 V to 6 V and utilizes positive edge triggering for signal synchronization.

This device features a single logic element within the integrated circuit, optimized under the MC74HC595A series known for CMOS compatibility on both input and output sides. The package dimensions are 10 mm in length, 4 mm in width, and 1.75 mm in height, making it suitable for dense PCB designs.

The chip conforms to the automotive standard AEC-Q100, ensuring robustness for automotive and industrial use cases. Its maximum operating temperature rating is 125°C, supporting demanding environments.

Typical applications include digital systems, counters, data storage, and transfer operations in manufacturing, industrial automation, laboratory instrumentation, and electronic device development.

The 16-pin SOIC surface mount packaging allows efficient assembly and integration into modern electronics assembly lines. Features a single surface mount Shift Register in SOIC package. Compatible with input and output CMOS logic levels.

Contains 16 pins and one logic element per package. Operates over a temperature range up to 125°C maximum. Meets automotive standard AEC-Q100 for reliable performance. Compact dimensions: 10 mm length, 4 mm width, and 1.75 mm height.

Operating voltage range between 2 V and 6 V for flexible use. Pin configuration suitable for PCB surface mounting applications. Positive edge trigger type enables precise control of shift operations. Explore more semiconductor and logic IC components from EnvMart for enhanced electronics design and manufacturing solutions.
