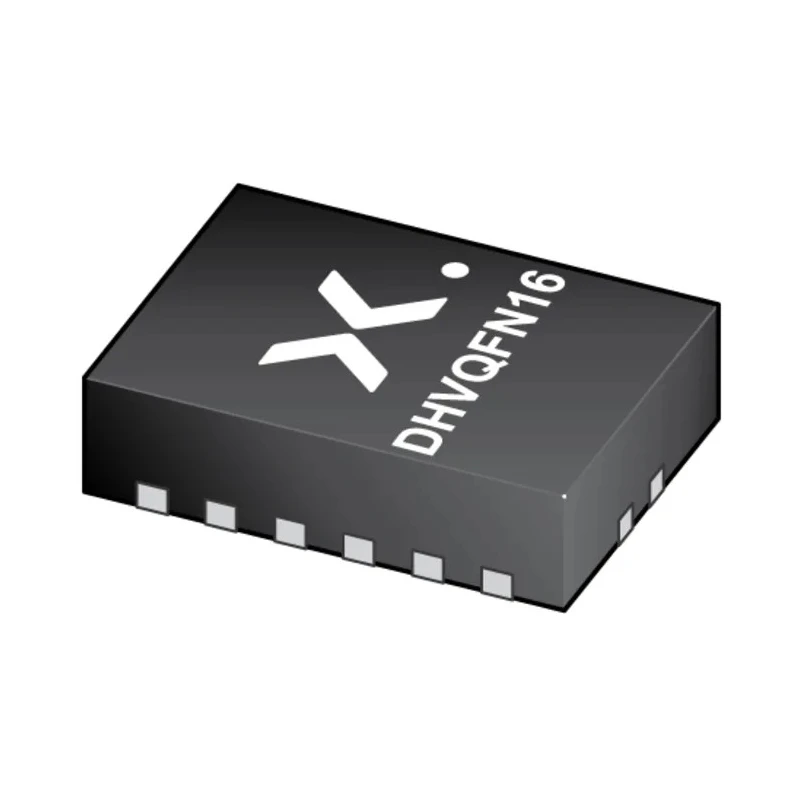

Nexperia High-Speed 8-Bit Parallel-Load Surface Mount Shift Register DHVQFN 16-Pin 74HC165BQ,115
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Nexperia |
| Height | 1mm |
| Length | 3.6mm |
| Model | 74HC165BQ,115 |
| Width | 2.6mm |
| Mount Type | Surface |
| Series | 74HC165 |
| Maximum Operating Temperature | 125°C |
| Package Type | DHVQFN |
| Trigger Type | Positive Edge |
| Pin Count | 16 |
| Number of Elements | 1 |
| Maximum Supply Voltage | 6V |
| Logic Family | 74HC |
| Minimum Supply Voltage | 2V |
Key Features
- High-speed Si-gate CMOS device compatible with Low-power Schottky TTL.
- Provides asynchronous parallel data load and serial data shift.
- Positive edge triggered with complementary serial outputs.
- Operating voltage range from 2V minimum to 6V maximum.
- Compact 16-pin DHVQFN package with dimensions 3.6 mm x 2.6 mm x 1 mm.
- Maximum operating temperature of 125°C suitable for industrial environments.
- Ideal for I/O expansion, parallel-to-serial data conversion, and LED driving applications.
- Designed for surface mount PCB applications with robust performance.
Product Description
Nexperia 74HC165BQ,115 is a high-speed, 8-bit parallel-load shift register designed with advanced Si-gate CMOS technology in a compact 16-pin DHVQFN surface mount package. This device supports asynchronous parallel loading and serial data input with positive edge clock triggering, making it ideal for expanding input/output capability in digital circuits.
The 74HC165 series is pin compatible with Low-power Schottky TTL logic families, ensuring flexibility in legacy and modern designs. Its broad operating voltage range of 2V to 6V and maximum operating temperature of 125°C enable reliable performance across demanding industrial and commercial applications.
This shift register supports complementary outputs (Q7 and Q7), facilitating easy cascading and LED driver control. The device's small form factor (3.6 mm length, 2.6 mm width, 1 mm height) is suitable for space-constrained surface mount PCB layouts.
Key industrial uses include control units, display interfaces, and data acquisition systems in sectors such as consumer electronics, automation, and manufacturing equipment. High-speed Si-gate CMOS device compatible with Low-power Schottky TTL.
Asynchronous parallel load and serial input functionality. Positive edge triggered with complementary serial outputs (Q7 and Q7). Wide supply voltage range: 2V to 6V. Compact DHVQFN 16-pin surface mount package with precise dimensions.
Maximum operating temperature 125°C for robust industrial use. Supports cascade chaining for extended bit shift operations. Ideal for I/O expansion, LED driving, and control units.
Nexperia's 74HC165BQ,115 delivers reliable and precise logic IC performance in an industrial-grade package optimized for diverse semiconductor and electronic component needs. Explore similar Shift Registers and logic ICs at EnvMart to enhance your electronic design and manufacturing workflow.
