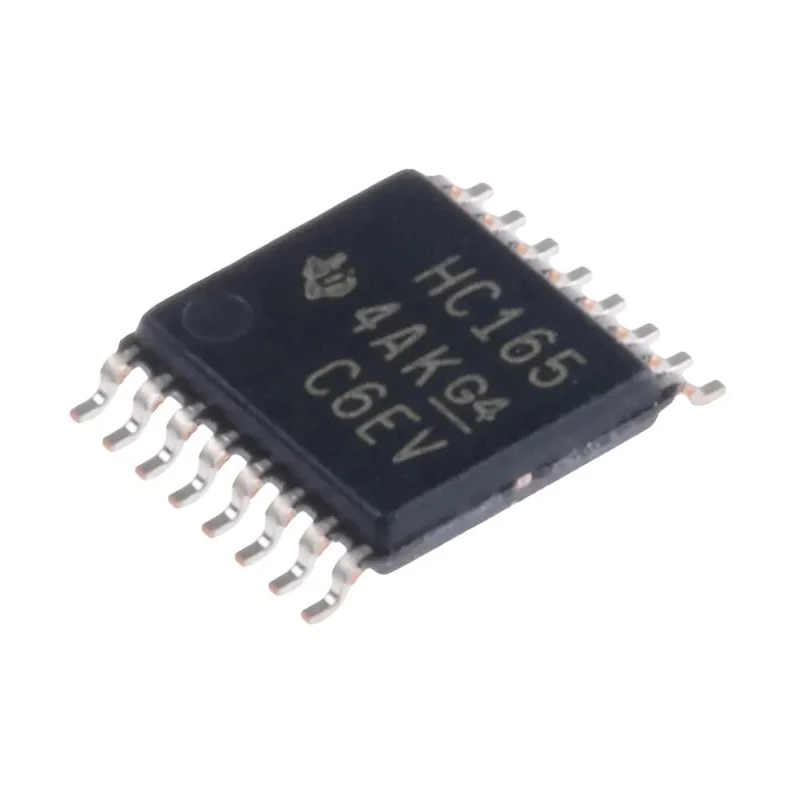

Texas Instruments Surface Mount Shift Register HC TSSOP 16-Pin SN74HC165PW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 35mm |
| Length | 356mm |
| Model | SN74HC165PW |
| Width | 356mm |
| Mount Type | Surface Mount |
| Compatibility | Input CMOS, Output CMOS |
| Series | SNx4HC165 |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Operating Voltage | 2 to 6 V |
| Trigger Type | Clock |
| Standards/Approvals | MIL-PRF-38535 |
| Pin Count | 16 |
| Number of Elements | 1 |
| Maximum Supply Voltage | 6V |
| Logic Family | HC |
| Minimum Supply Voltage | 2V |
| Maximum Propagation Delay Time | 13ns |
Key Features
- Packaged in a TSSOP with 16 pins for compact PCB layout.
- Operates within a voltage range of 2 to 6 volts for versatile circuitry integration.
- Features a maximum propagation delay time of 13 nanoseconds.
- Includes one clock-triggered element compatible with CMOS logic levels.
- Designed for operation up to 125°C with MIL-PRF-38535 compliance.
- Compatible with input and output CMOS signals for broad interoperability.
- Physical dimensions approximately 35mm height by 356mm width and length.
- Ideal for use in electronic components and logic IC applications.
Product Description
Texas Instruments SN74HC165PW Surface Mount Shift Register HC TSSOP 16-Pin is a reliable and high-speed CMOS logic device designed for electronic applications requiring shift register functionality. Featuring a TSSOP package, this 16-pin IC offers compact mounting options, making it suitable for high-density PCB designs in consumer and industrial electronics.
Operating within a voltage range of 2 to 6 volts, the SN74HC165PW is optimized for low power consumption while maintaining fast switching speeds with a maximum propagation delay time of 13 nanoseconds. This performance enables precise timing control in digital systems requiring shift register capabilities.
The device incorporates a single clock-triggered element compatible with CMOS logic families, providing seamless integration with a variety of microcontrollers and digital logic circuits. It supports input and output CMOS compatibility, enhancing its versatility across different applications.
Engineered to withstand harsh environments, the SN74HC165PW operates reliably up to 125°C and meets MIL-PRF-38535 standards, making it suitable for industrial, aerospace, and military-grade electronics.
Its physical dimensions of approximately 35mm by 356mm allow efficient PCB layout without compromising performance. The Texas Instruments 74HC family series is renowned for combining high speed and low power consumption using silicon gate CMOS technology.
Packaged in TSSOP with 16 pins for surface mounting. Operating voltage range of 2 to 6 V ensures wide compatibility. Maximum propagation delay time of 13 ns supports high-speed signal processing. Single clock-triggered element designed for Shift Register operations.
CMOS input/output compatibility. Rated for operation up to 125°C with MIL-PRF-38535 compliance.
Commonly applied in semiconductor counters, logic IC circuits, and embedded systems, the SN74HC165PW supports advanced industrial, laboratory, and manufacturing uses. Discover more electronic components and specialized semiconductor devices at EnvMart to enhance your system designs efficiently.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a voltage range of 2 to 6 volts, allowing for versatile circuitry integration.
The maximum propagation delay time is 13 nanoseconds, enabling fast switching speeds for precise timing control in digital systems.
The dimensions are approximately 35mm in height and 356mm in both width and length, facilitating efficient PCB layout.
It is packaged in a TSSOP (Thin Shrink Small Outline Package) with 16 pins, suitable for surface mounting.
The SN74HC165PW is rated for operation up to 125°C, making it suitable for harsh environments.
Yes, it is designed to be compatible with both input and output CMOS signals, enhancing its interoperability with various systems.
This unit includes one clock-triggered element, designed specifically for shift register operations.
It meets MIL-PRF-38535 standards, indicating its reliability for industrial, aerospace, and military-grade applications.
This model is part of the HC logic family, which is known for high speed and low power consumption.
It is commonly applied in semiconductor counters, logic IC circuits, and embedded systems, suitable for advanced industrial and laboratory uses.
This shift register has a pin count of 16, which is typical for TSSOP packages.
Key features include a voltage range of 2 to 6 V, a maximum propagation delay of 13 ns, and operation up to 125°C with MIL-PRF-38535 compliance.
