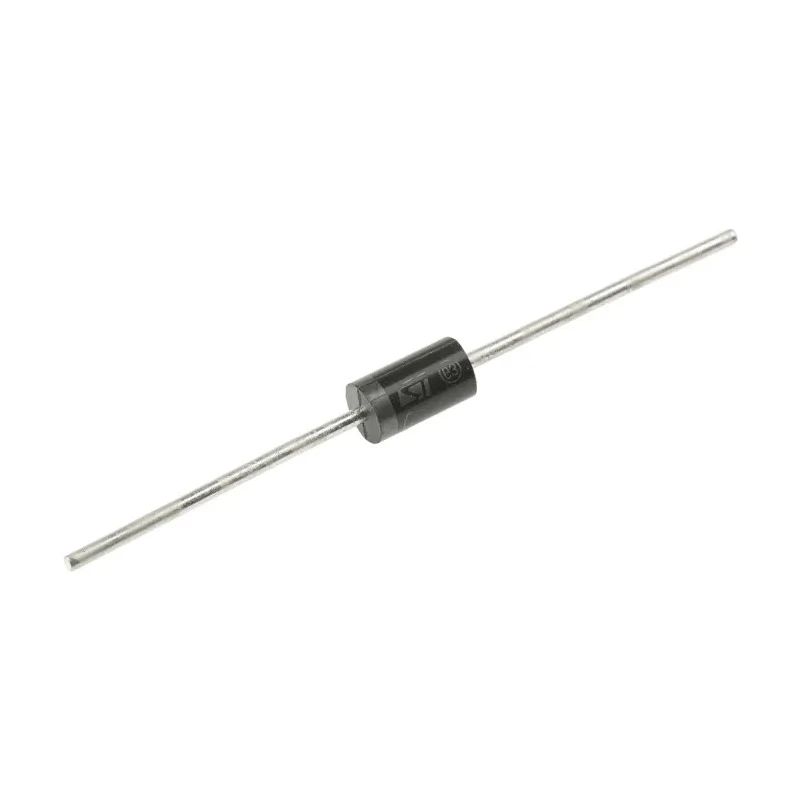

STMicroelectronics Schottky Diode 40 V 3 A Through Hole DO-201AD 2-Pin 1N5822

STMicroelectronics 1N5822 Schottky Diode is a high-performance discrete semiconductor device designed for rectification and protection in electronic circuits. This diode supports a maximum continuous forward current of 3 A and a peak reverse voltage rating of 40 V, making it suitable for power supply and switching applications requiring efficient and fast diode switching characteristics.

Packaged in a durable DO-201AD through hole type, the diode features a single diode configuration with two pins facilitating straightforward PCB integration. The forward voltage drop is low at a maximum of 950 mV, enhancing circuit efficiency by minimizing conduction losses. Its peak non-repetitive forward surge current rating of 80 A allows it to handle transient surges without damage, which is vital for industrial and automotive use cases.

The device operates reliably over a broad temperature range from -65°C to 150°C, ensuring durability in harsh environmental and industrial conditions. With minimal peak reverse current leakage of only 2 mA, the diode ensures stability and low power dissipation during operation.

Physically, it has a compact profile with a length of 9.5 mm and a diameter and height of 5.3 mm, minimizing board space requirements. The diode is RoHS compliant, underscoring its adherence to environmental safety standards prevalent in electronics manufacturing.

This Schottky Diode finds applications across semiconductor, power supply, and electronic device manufacturing sectors, including industrial, automotive, and HVAC systems where fast switching and low forward voltage characteristics are crucial.

Designed for through hole mounting in electronic circuits. Single diode configuration with 2 pins for easy installation. Maximum forward voltage of 950 millivolts ensures efficient conduction. Operating temperature range from -65°C to 150°C for reliable performance.

Peak non-repetitive forward surge current of 80 A provides high transient handling capability. Low peak reverse current of 2 milliamps minimizes leakage loss. Compact dimensions: 9.5 mm length and 5.3 mm diameter and height.

Complies with RoHS standards ensuring environmental safety. Explore our extensive range of semiconductor components at EnvMart for reliable industrial and consumer electronics solutions.
