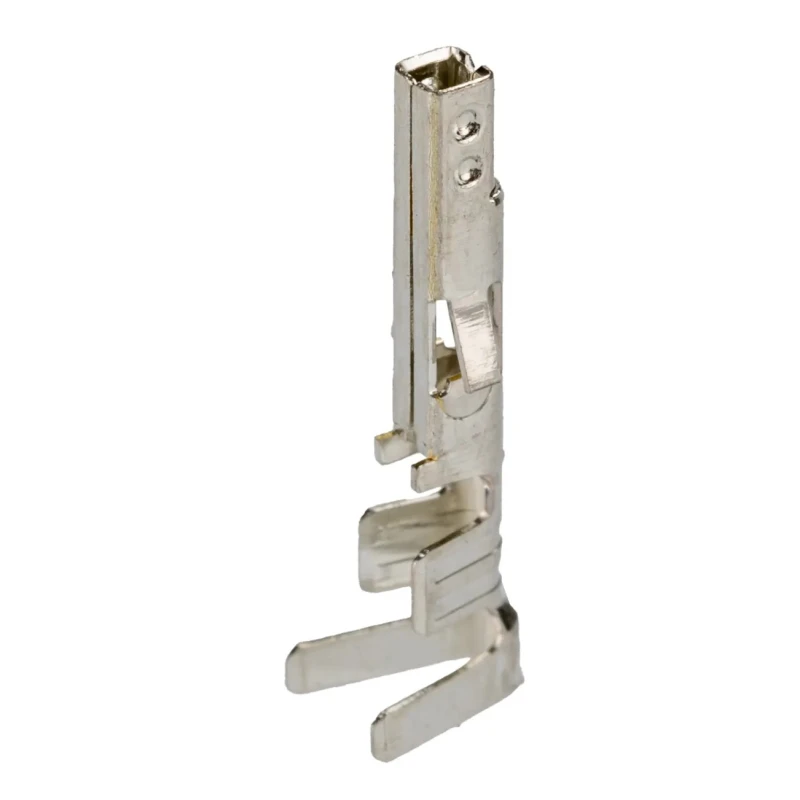

Molex 5556 Series Female Crimp Terminal, 28 AWG Min Crimp, 22 AWG Max, Tin Plated Phosphor Bronze 9A Current 39-00-0215
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed with phosphor bronze contact material for durability and conductivity.
- Tin plating provides corrosion resistance and reliable contact.
- Designed with locking tangs to secure contacts firmly in connector housings.
- Operates reliably in temperatures from -40°C to 105°C.
- Maximum contact resistance of 10 milliohms ensuring efficient electrical flow.
- Suitable termination type is crimp for secure wire attachment.
- Supports a current rating of 9A for high conductivity.
- Compatible with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.
Product Description
Molex 39-00-0215 is a female crimp terminal from the 5556 Series, designed specifically for use with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings. This crimp contact terminal supports wire sizes ranging from a minimum of 28 AWG (0.08 mm²) up to a maximum of 22 AWG (0.35 mm²).
The contact material is phosphor bronze, known for its excellent electrical conductivity and mechanical strength. The contact plating uses tin, offering corrosion resistance and improved electrical contact reliability. The terminal can carry up to 9A of current, making it suitable for a variety of electronic applications.
Locking tangs integrated into the design ensure that the contact is securely held within the connector housing, preventing accidental disconnections. The termination type is crimp, providing a secure mechanical and electrical connection to the wire.
This terminal operates effectively within a temperature range from -40°C to 105°C and exhibits a maximum contact resistance of 10 milliohms, ensuring minimal power loss and efficient signal transmission.
The Molex 5556 Series Female Crimp Terminal is widely used across industries such as automotive systems, industrial automation, medical devices, communications, and consumer electronics. Its robust construction and design facilitate reliable, high-performance electrical connections where durability and precision are critical.
Constructed with phosphor bronze contact material for durability and conductivity. Tin plating provides corrosion resistance and reliable contact. Designed with locking tangs to secure contacts firmly in connector housings.
Operates reliably in temperatures from -40°C to 105°C. Maximum contact resistance of 10 milliohms ensuring efficient electrical flow. Suitable termination type is crimp for secure wire attachment. Supports a current rating of 9A for high conductivity.
Compatible with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.
This product enhances your design flexibility and electrical system reliability. Explore more Molex components and connectors on EnvMart for all your industrial and electronic application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This female crimp terminal supports a current rating of 9A, making it suitable for various electronic applications.
It is designed for wire sizes ranging from a minimum of 28 AWG (0.08 mm²) to a maximum of 22 AWG (0.35 mm²).
This terminal operates effectively within a temperature range from -40°C to 105°C.
The contact material is phosphor bronze, and it features tin plating for corrosion resistance and reliable electrical contact.
It is compatible with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.
The maximum contact resistance is 10 milliohms, ensuring efficient electrical flow.
This model uses a crimp termination type for secure wire attachment.
It features locking tangs that secure the contacts firmly within the connector housing, preventing accidental disconnections.
This terminal is widely used in industries such as automotive systems, industrial automation, medical devices, communications, and consumer electronics.
The tin plating provides corrosion resistance and improves the reliability of electrical contact.
The country of origin for this product is India.
This crimp terminal belongs to the Molex 5556 series.
