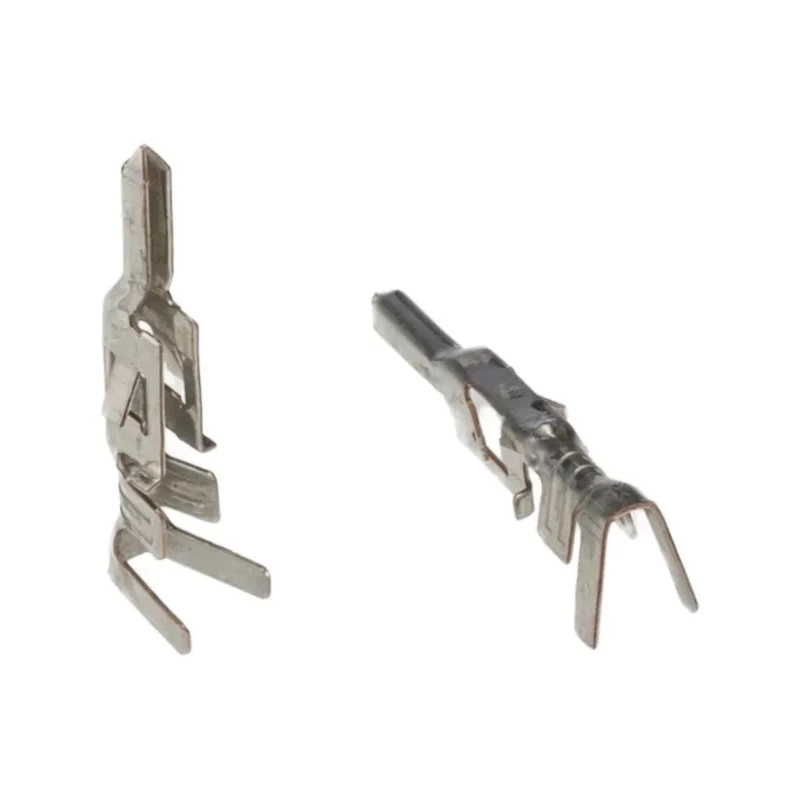

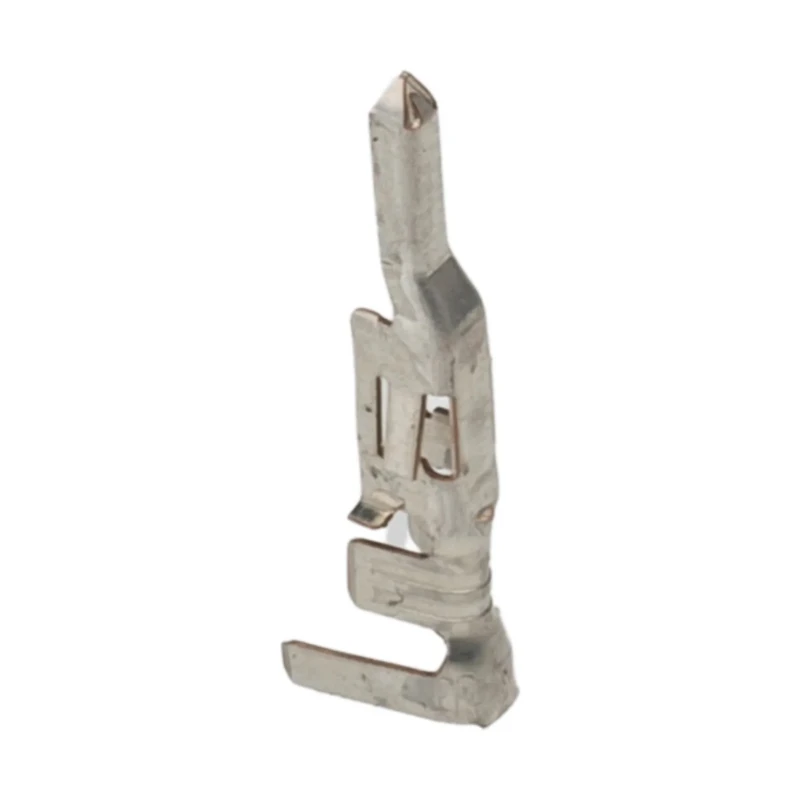

Molex 5558 Series Male Crimp Terminal 16 AWG Min to Max, Tin Plated Phosphor Bronze Contacts 9A Current 39-00-0084
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Male |
| Contact Material | Phosphor Bronze |
| Series | 5558 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr Connector Housing |
| Contact Plating | Tin |
| Maximum Wire Size mm² | 1.3mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- The terminal features tin-plated phosphor bronze contacts for enhanced conductivity and corrosion resistance.
- Designed for wires from 16 AWG minimum to 16 AWG maximum or 1.3 mm² cross-sectional area.
- Operates reliably within a temperature range of -40°C to 105°C in harsh industrial environments.
- Provides secure crimp termination without soldering or screwing, ensuring robust electrical connections.
- Supports up to 600V, making it suitable for a variety of industrial and commercial electrical applications.
- Locking tangs ensure a positive, secure fit within Mini-Fit Jr connector housings.
- Ideal for automotive, telecommunications, vending machine, and industrial automation usage.
- Maximum contact resistance rated at 10 mΩ for efficiency and reliability.
Product Description
Molex 39-00-0084 5558 Series Male Crimp Terminal is engineered for high-current electrical connections utilizing 16 AWG wire. This crimp terminal is designed specifically for the Mini-Fit Jr connector housing system, renowned for reliable electrical performance in demanding environments.
Constructed from phosphor bronze with tin-plated contacts, it offers excellent conductivity, corrosion resistance, and durability. The terminal supports currents up to 9 amperes and operates in a broad temperature range from -40°C to 105°C, making it suitable for industrial, automotive, telecommunications, vending, and commercial applications.
This crimp terminal enables wire termination by crimping, eliminating the need for soldering or screwing, which simplifies installation and ensures secure wire retention. The locking tangs firmly secure the contact inside the connector housing, preventing accidental disconnection.
The compact design accommodates wires sized from 16 AWG (approx. 1.3 mm²) ensuring compatibility with standard power and signal cables. It supports voltage ratings up to 600 volts, enabling use in automated control equipment, vending machines, gaming devices, and telecommunications infrastructure.
Manufactured in the United States, and supplied in packs typically suitable for production or maintenance needs, this terminal meets industry standards for reliability, and is RoHS compliant.
The terminal's phosphor bronze contact material resists wear and facilitates easy crimping. Tin plating optimizes electrical conductivity and prevents corrosion. Multiple points of contact guarantee secure and stable electrical connection.
Working temperature range from -40°C to +105°C suits harsh environmental conditions. Crimp termination design promotes safe and reliable wire mounting in connectors. Locking tangs afford a positive mechanical hold within Mini-Fit Jr connectors.
Applicable across sectors including automotive, communications, industrial automation, and consumer electronics.
EnvMart users looking for high-quality, durable Crimp Terminals for electrical and electronic system assembly can confidently choose this Molex model 39-00-0084 for their projects and repairs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this crimp terminal is 9 amperes.
This terminal is designed for wires sized from 16 AWG minimum to 16 AWG maximum, or approximately 1.3 mm² cross-sectional area.
It operates reliably within a temperature range of -40°C to 105°C.
This model uses a crimp termination type, which simplifies installation and ensures secure wire retention without the need for soldering or screwing.
The terminal features contacts made from phosphor bronze with tin plating for enhanced conductivity and corrosion resistance.
It is specifically designed for use with Mini-Fit Jr connector housings.
The maximum contact resistance is rated at 10 mΩ.
This terminal is suitable for applications in automotive, telecommunications, vending machines, and industrial automation.
Locking tangs on the terminal ensure a positive and secure fit within the Mini-Fit Jr connector housings.
This terminal is manufactured in the United States.
The terminal supports voltage ratings up to 600 volts, making it suitable for various electrical applications.
The tin plating optimizes electrical conductivity and helps prevent corrosion, enhancing the terminal's performance in demanding environments.
