| Country of Origin | China |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Male |
| Contact Material | Brass |
| Series | 5558 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |

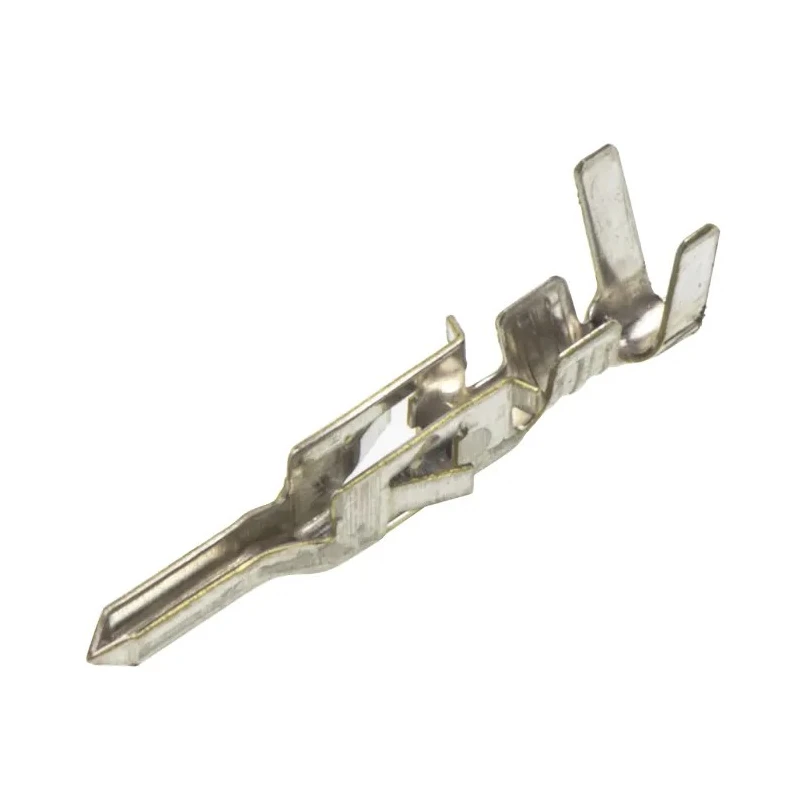

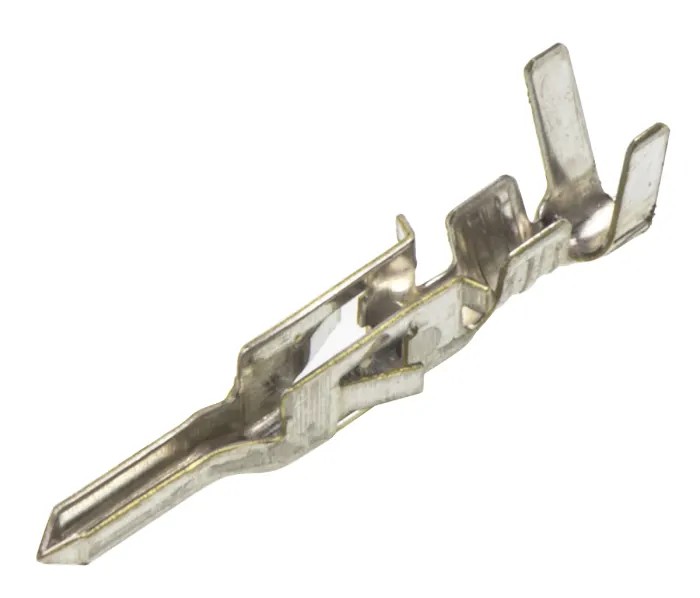

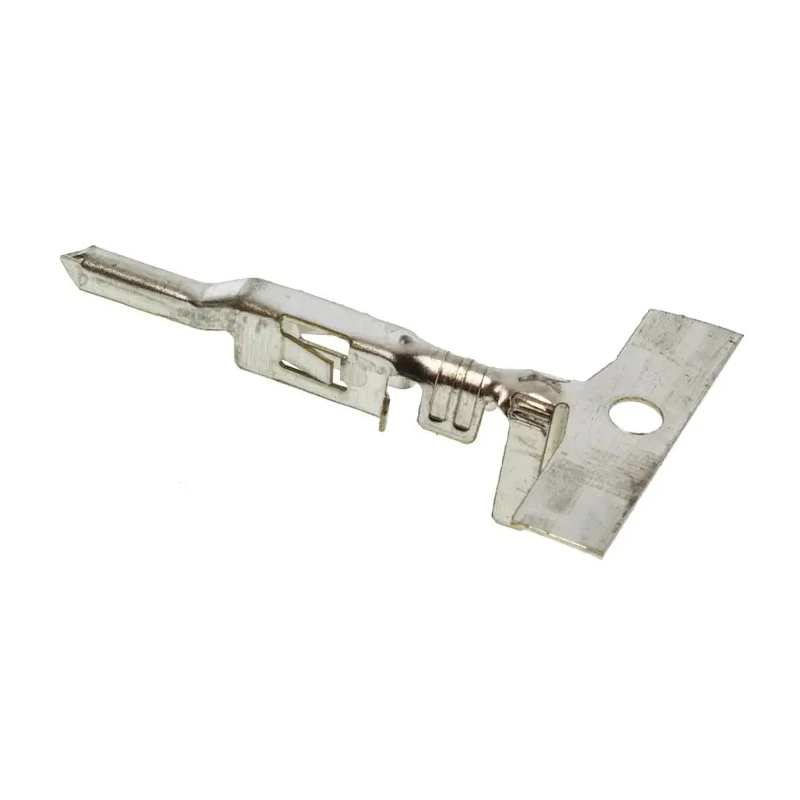

| Molex 5558 Series Male Crimp Terminal, 24 AWG Min Crimp, 18 AWG MaxBrand | Molex |
Molex 39-00-0040 is a male crimp terminal from the 5558 Series, engineered for use with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings. It accommodates wire sizes from 24 AWG (minimum) to 18 AWG (maximum) and supports a current rating of 9 amperes.
Manufactured with brass contact material and tin plating, this crimp terminal ensures excellent electrical conductivity and corrosion resistance. The locking tangs on both sides provide a secure fit in the connector housing, preventing terminal dislodgement during mechanical shock or vibration.
The product is designed to withstand a wide operating temperature range from -40°C to 105°C, making it suitable for demanding environmental conditions common in industrial and automotive settings. It supports crimp termination style, allowing for a secure and reliable cable termination.
With a maximum contact resistance of 10 milliohms and a durability rating of 30 mating cycles, this Crimp Terminal guarantees stable electrical connections across multiple insertions and removals. The multi-point contact design enhances connectivity and load capacity, critical for effective performance in power and signal applications.
Typical applications include automotive manufacturing, industrial automation systems, medical device connectivity, communications networks, and consumer electronics. The terminal can be safely removed using Molex extraction tool model 215-5900 without damaging the housing or the contact.
The brass contact material ensures high electrical conductivity and durability. Tin plating on the contact enhances corrosion resistance. Locking tangs provide secure retention within connector housings. Wide operating temperature range from -40°C to +105°C.
Compatible with Mini-Fit Jr, TPA, and BMI connector housings. Supports wire sizes from 24 AWG to 18 AWG. Rated for 9A current carrying capacity. Maximum contact resistance of 10 milliohms. Durability of 30 mating cycles.
Suitable for automotive, industrial automation, medical, and communications applications. Explore further Molex products and components through EnvMart for reliable electronic connector solutions.
