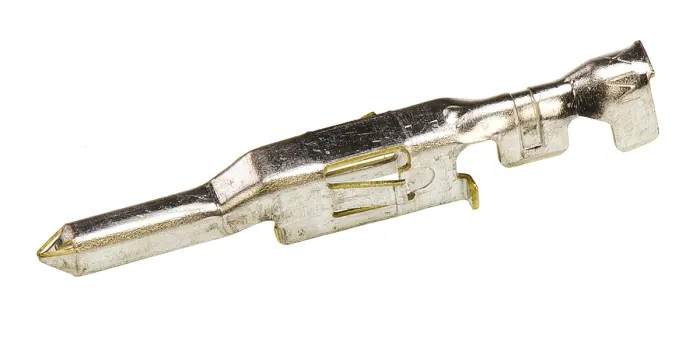

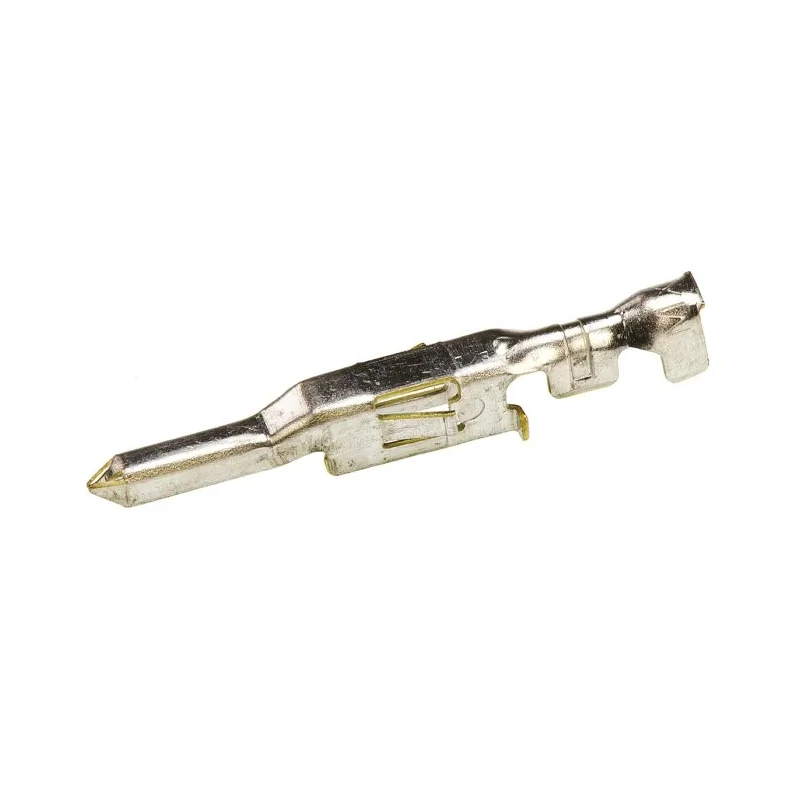

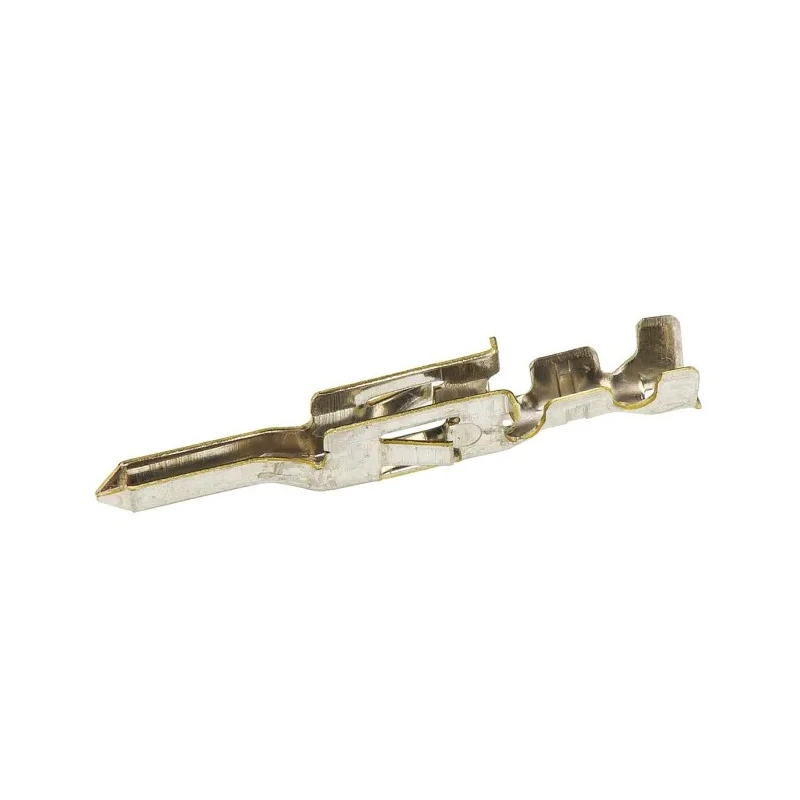

Molex 5558 Series Male Crimp Terminal, 28 AWG Min Crimp, 22 AWG Max, Brass Contact, Tin Plating, Crimp Termination 39-00-0049

Molex 39-00-0049 Male Crimp Terminal belongs to the 5558 Series and is engineered for electrical and industrial applications requiring reliable cable termination in the 28 to 22 AWG range. This crimp terminal supports a current capacity of 9 amperes, making it ideal for power connectors in electronics, medical equipment, communications, networking devices, and automated systems.

The terminal's brass contact material affords resilience against wear and mechanical impact, providing a durable connection point. The tin plating on the contact surface enhances corrosion resistance, ensuring dependable operation in harsh environments. Designed with multiple points of contact and locking tangs, this terminal maintains stable electrical connectivity and prevents accidental disconnections when mated with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.

The unit is rated for temperatures from -40°C up to 105°C, suitable for a wide range of industrial and commercial operating conditions. Its low maximum contact resistance of 10 milliohms enables efficient transmission of power and signals. The terminal has a maximum mating cycle rating of 30, supporting long-term service life in repetitive connection applications.

This male Crimp Terminal is widely used across diverse industrial sectors including automotive manufacturing, industrial automation, communications infrastructure, consumer electronics, and medical device assemblies. It facilitates precise and secure wire-to-wire and cable-to-board connections in these settings.

For optimal assembly, it is compatible with Mini-Fit connector housings which provide protective encasings and secure mechanical interfaces. The product is manufactured in the United States under stringent quality controls to ensure reliability and compliance with industry requirements.

Multiple points of contact ensure a reliable electrical connection. Locking tangs secure the terminal firmly within connector housing. Tin plating provides corrosion resistance in demanding environments. Brass contact material delivers mechanical durability and wear resistance.

Supports wire sizes from 28 AWG to 22 AWG for versatility. Rated for continuous current carrying capacity of 9 amperes. Operates within temperature range -40°C to 105°C suitable for industrial use. Maximum contact resistance is 10 milliohms for efficient conductivity.

Durable for up to 30 mating cycles ensuring long-term reliability. Explore our comprehensive range of Molex connectors and components in the Electronics & Electricals category on EnvMart for compatible connector housings and related accessories.
