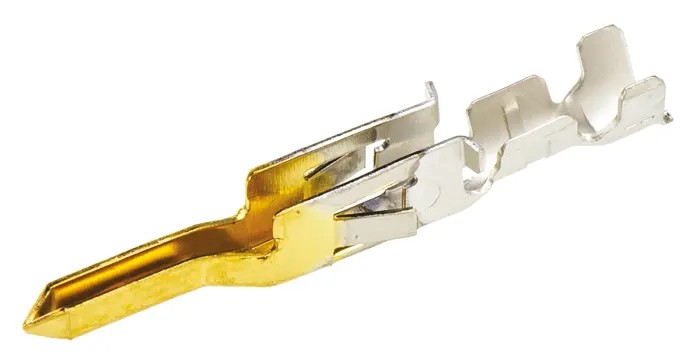

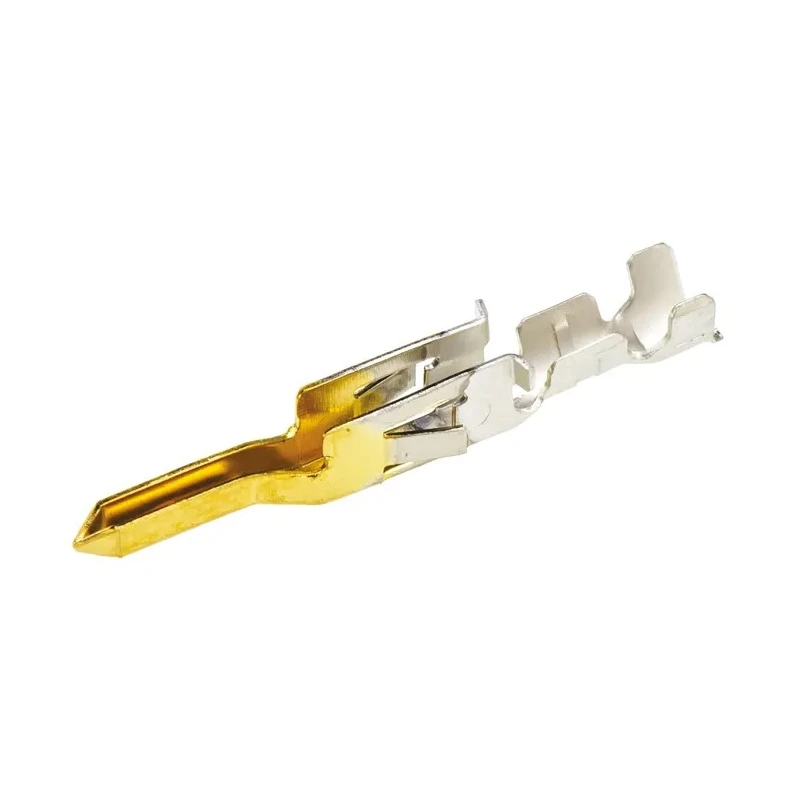

Molex 5558 Series Male Crimp Terminal 28-22 AWG Gold-Plated Brass 9A Current 39-00-0432
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Male |
| Contact Material | Brass |
| Series | 5558 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr Connector Housing |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Constructed of gold-plated brass to ensure excellent conductivity and corrosion resistance.
- Rated current capacity of 9 amps suitable for demanding electrical applications.
- Features locking tangs that secure the terminal firmly within the connector housing.
- Compatible with Molex Mini-Fit Jr series connector housings for easy integration.
- Supports a maximum operating temperature of 105°C and voltage rating up to 600V.
- Designed for reliable signal and power transmission in medical, automotive, and telecommunications equipment.
- Crimp termination method provides secure and robust electrical contact.
- Meets RoHS standards for environmental compliance.
Product Description
Molex 39-00-0432 Male Crimp Terminal from the 5558 series is engineered for dependable electrical connectivity with wire sizes ranging from 28 AWG to 22 AWG. This crimp terminal is crafted from gold-plated brass, offering superior electrical conductivity and excellent resistance against corrosion to ensure enduring performance in challenging environments.
Designed for use with the Molex Mini-Fit Jr connector housings, it features multiple points of contact and locking tangs to guarantee a secure and stable connection, preventing accidental disconnections during operation. The terminal supports a 9A current rating and can safely operate up to 105°C and voltages up to 600V, making it suitable for applications requiring robust and consistent electrical performance.
This Crimp Terminal is widely used across industries including medical device manufacturing, automotive electrical systems, and telecommunications infrastructure, where high reliability and quality signal transmission are critical.
The gold plating on the brass material enhances signal integrity and durability by reducing oxidation and contact resistance, which is rated at a maximum of 20 milliohms. The crimp termination style ensures a mechanically strong and electrically efficient connection between the wire and terminal, facilitating easy installation in PCB and wiring assemblies.
Multiple points of contact for reliable electrical connection. Locking tangs secure terminal in connector housing. Gold-plated brass construction for conductivity and corrosion resistance. Supports wire sizes from 28 AWG to 22 AWG.
Rated for 9 amps current and up to 105°C operating temperature. Crimp termination guarantees secure electrical contact. Meets RoHS environmental compliance standards. Applications include automotive, medical, telecommunications, and industrial equipment.
Explore more Molex products and related electrical components at EnvMart for reliable and precision-engineered connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a current rating of 9A, making it suitable for demanding electrical applications.
This model supports wire sizes ranging from 28 AWG to 22 AWG.
The maximum operating temperature is 105°C.
It uses a crimp termination method, ensuring a secure electrical contact.
Yes, it is designed for use with Molex Mini-Fit Jr connector housings.
The contact is made of brass with gold plating for enhanced conductivity and corrosion resistance.
The minimum operating temperature is -40°C.
The maximum contact resistance is rated at 20 milliohms.
Yes, it meets RoHS standards for environmental compliance.
It is widely used in medical device manufacturing, automotive electrical systems, and telecommunications infrastructure.
It features locking tangs that secure the terminal firmly within the connector housing, preventing accidental disconnections.
The terminal features gold plating on the brass contact, enhancing signal integrity and durability.
