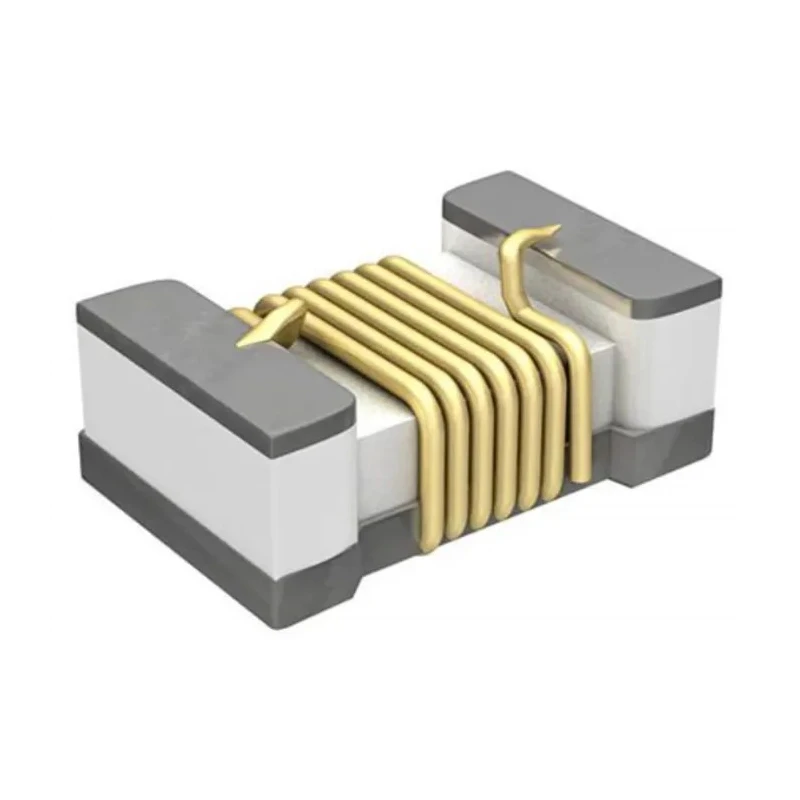

Murata 0402 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 20 nH ±2 % 370 mA Idc Q:25 LQW15AN20NG00D

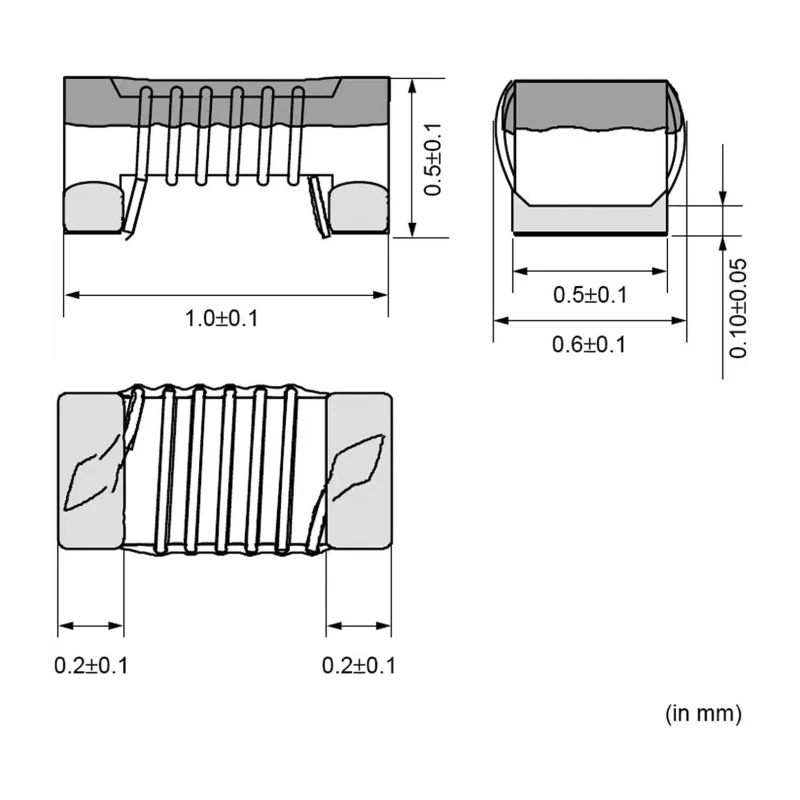

Murata LQW15AN20NG00D is an unshielded wirewound surface mount inductor housed in a compact 0402 package measuring 1 mm in length, 0.6 mm in depth, and 0.5 mm in height. It features a ferrite core that ensures high magnetic performance, ideal for use in high-frequency circuits such as Bluetooth, GSM, and WLAN wireless telecommunication equipment. The inductor delivers 20 nH inductance with a ±2 % tolerance, making it suitable for precise tuning applications.

Designed with a maximum DC current rating of 370 mA and a maximum DC resistance of 270 mΩ, this inductor supports efficient current flow while minimizing power loss. Its high self-resonant frequency of up to 4 GHz and a minimum quality factor of 25 meet the demands of VHF and UHF applications. The inductor is moulded and terminated with solder to ensure reliable surface mounting.

Operating across a wide temperature range from -55°C to 125°C, this inductor withstands challenging thermal environments found in automotive and industrial electronic designs. It is RoHS compliant, reflecting adherence to environmental standards. The product is sourced from Japan, ensuring quality and manufacturing standards consistency.

The inductor is supplied in paper tape packaging, facilitating automated pick-and-place assembly processes. It is designed specifically for high-frequency wireless applications requiring compact, reliable inductors to maintain signal integrity and performance.

Compact 0402 package size for efficient PCB space usage. Ferrite core with wirewound construction for excellent electrical characteristics. Wide operating temperature range from -55°C to 125°C. High resonance frequency suitable for VHF and UHF bands.

±2 % inductance tolerance ensures tight performance control. Maximum current capacity of 370 mA avoids saturation effects. Minimum quality factor of 25 ensures efficiency in RF circuits. Solder termination style compatible with standard assembly.

RoHS compliant for environmental safety and regulatory compliance. Paper tape packaging enables optimized manufacturing integration.

Murata’s LQW series inductors provide superior performance for industrial and commercial electronics applications including telecommunications, IoT devices, and other RF applications requiring minimal parasitic effects and high reliability.
