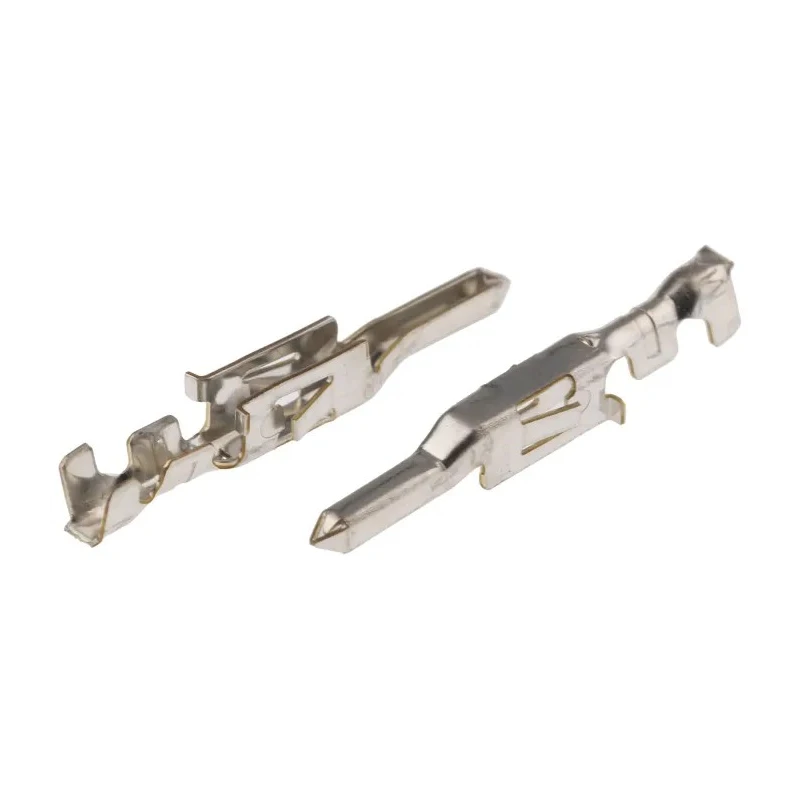

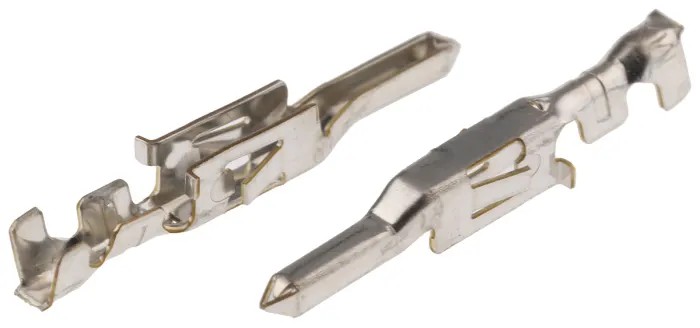

Molex 5558 Series Male Crimp Terminal 9A Current Rating, 28 AWG Min, 22 AWG Max, Brass Contact Material 39-00-0048

Name: Molex 5558 Series Male Crimp Terminal 9A Current Rating, 28 AWG Min, 22 AWG Max, Brass Contact Material 39-00-0048
Brand: Molex
SKU: 347367
Price: 0.07 USD
Availability: InStock



Category Crimp Terminal Brand Molex Condition New

Specifications

Country of Origin	India
Brand	Molex
Current	9A
Gender	Male
Contact Material	Brass
Series	5558
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
For Use With	Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings
Contact Plating	Tin
Minimum Wire Size mm²	0.08mm²
Maximum Wire Size mm²	0.35mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	10mΩ
Molex 5558 Series Male Crimp Terminal, 28 AWG Min Crimp, 22 AWG MaxBrand	Molex

Key Features

Constructed with brass contact material for wear resistance and durability.
Tin plating on contacts ensures corrosion resistance and reliable operation.
Squared sides provide multiple points of contact for stable electrical connections.
Features locking tangs for secure connection within compatible Mini-Fit connector housings.
Suitable for operating temperatures ranging from -40°C to 105°C.
Maximum contact resistance is 10 milliohms, enhancing signal integrity.
Compatible with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.
Rated for 600V voltage to support safe power transmission.

Product Description

Molex 39-00-0048 male crimp terminal is a precision engineered crimp contact from the 5558 series designed for electrical and electronic applications requiring dependable wire-to-wire and wire-to-board connections.

This crimp terminal supports wire sizes ranging between 28 AWG (0.08 mm²) minimum and 22 AWG (0.35 mm²) maximum with a robust current rating of 9A and voltage capacity up to 600V, ensuring safety and performance in power circuits. Manufactured from brass with tin plating, this terminal offers excellent resistance to wear, impact, and corrosion for demanding industrial environments.

The terminal features squared sides enabling multiple contact points, which promotes stable electrical continuity. Locking tangs secure the terminal firmly into compatible connector housings, preventing accidental disconnections during operation. It is rated for a maximum operating temperature of 105°C and has a low maximum contact resistance of 10 milliohms, supporting signal integrity in sensitive electronic systems.

This Molex crimp terminal is suitable for use with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings, providing flexibility and convenience in assembly and maintenance. The terminal is rated to withstand a maximum of 30 mating cycles, making it reliable for long-term use.

Brass contact material with tin plating for durability and corrosion resistance. Supports 28 AWG to 22 AWG wire sizes ensuring wide compatibility. 9A current rating suitable for moderate power applications. Operating temperature range from -40°C to 105°C for harsh conditions.

Locking tang design ensures secure connection within housings. Low contact resistance of 10 milliohms for enhanced electrical performance. Compatible with Mini-Fit series connector housings for flexible use. Rated for up to 30 mating cycles ensuring longevity.

This Crimp Terminal is ideal for industrial, automotive, medical, communications, and consumer electronics applications. It provides dependable connectivity and protection in PCB connectors and wire housings, ensuring system reliability in various electronic equipment.
