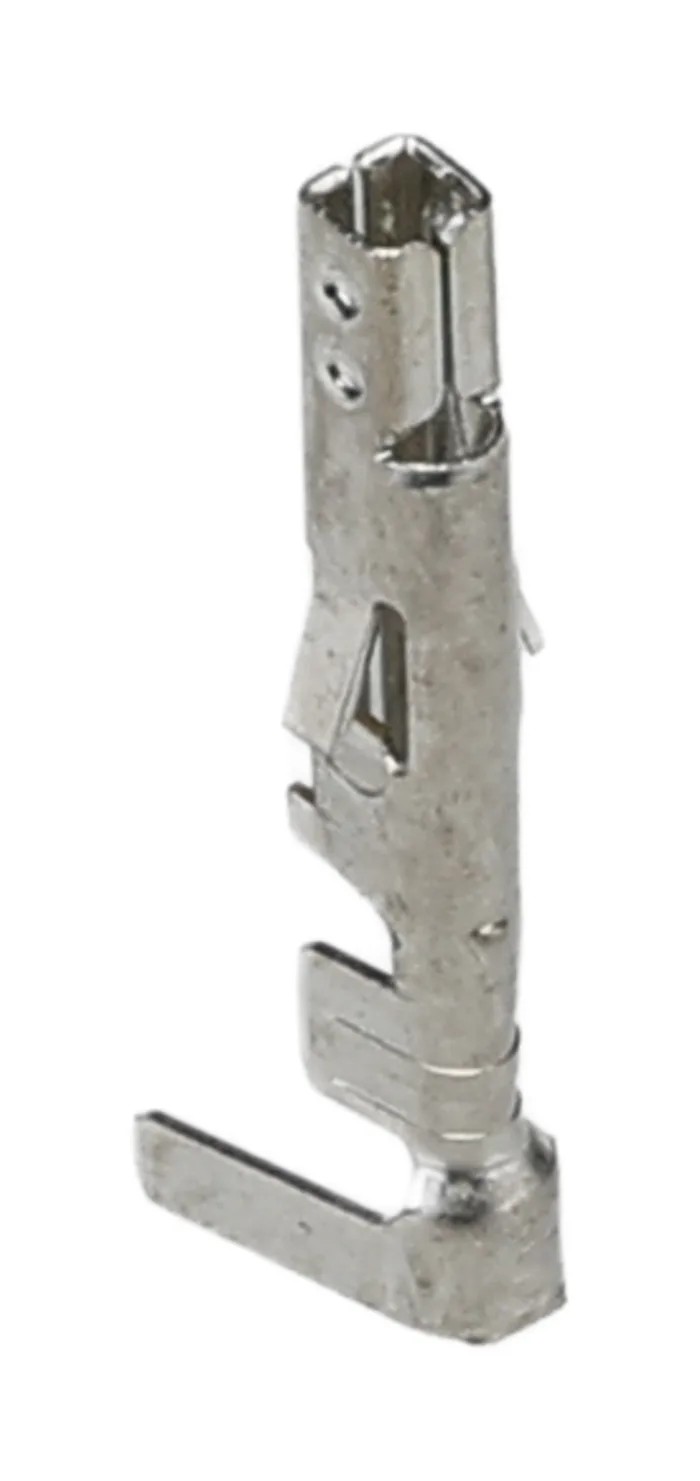

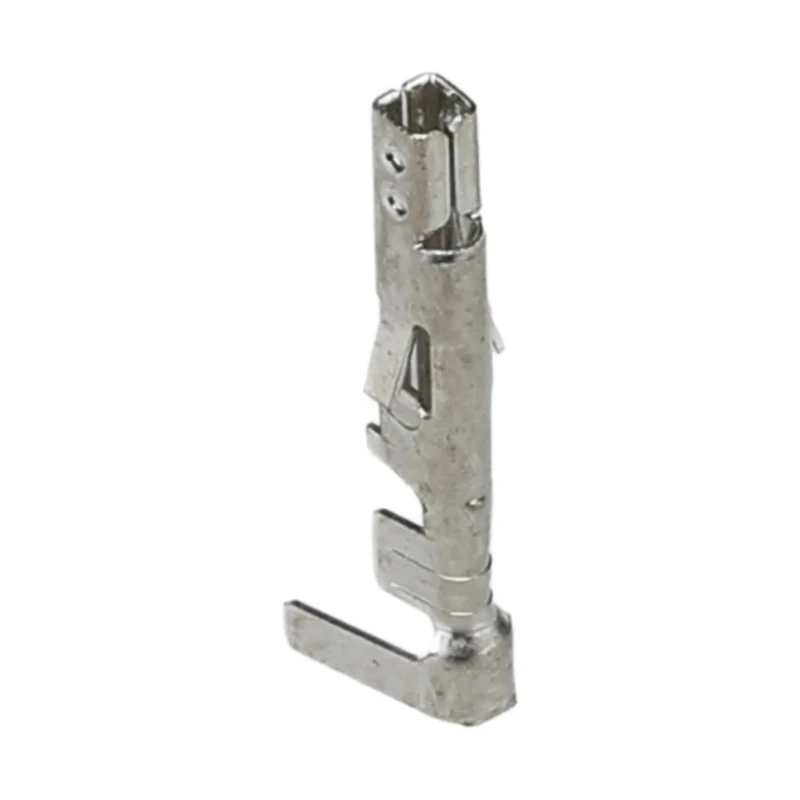

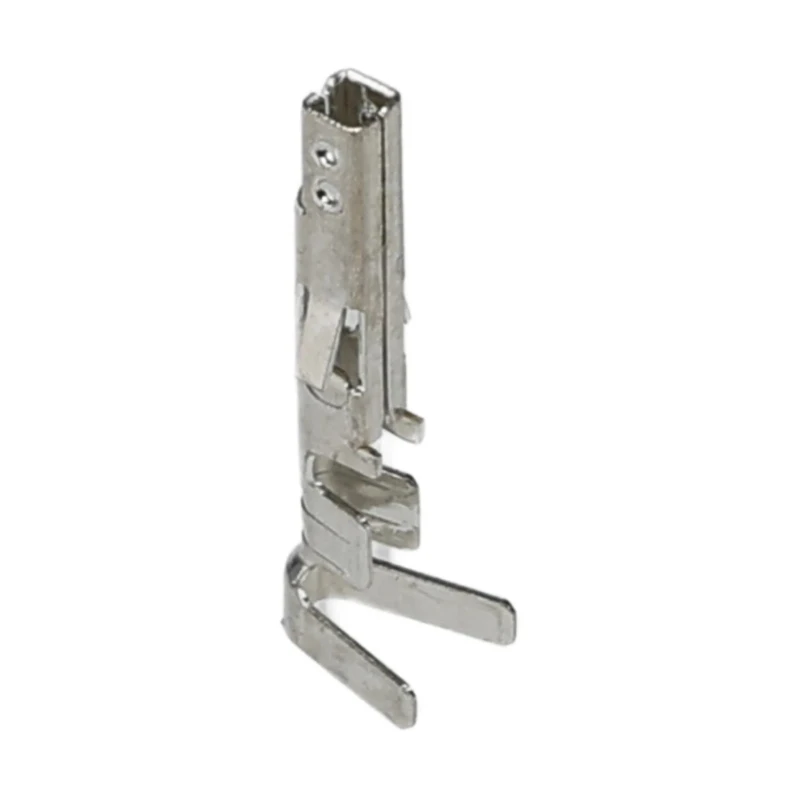

Molex 5556 Series Female Crimp Terminal, 24 AWG Min, 18 AWG Max Wire Size, Tin Plated Brass, Crimp Termination 39-00-0208
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Brass |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
| Molex 5556 Series Female Crimp Terminal, 24 AWG Min Crimp, 18 AWG MaxBrand | Molex |
Key Features
- Compatible with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.
- Constructed of brass contacts with tin plating for corrosion resistance.
- Maximum current rating of 9 amps suitable for various applications.
- Operates reliably within temperatures from -40°C to 105°C.
- Facilitates easy crimp termination for secure connections.
- Maximum contact resistance of 10 milliohms ensures efficient conductivity.
- Supports wire insulation diameters from 1.30mm to 3.10mm.
- Durable design allowing up to 30 mating cycles.
Product Description
Molex 39-00-0208 Female Crimp Terminal is a high-quality crimp terminal designed to support wire sizes from 0.2 mm² (24 AWG) to 0.8 mm² (18 AWG). Made from brass with a tin plating, this terminal offers excellent corrosion resistance and durability. It is compatible with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings, making it suitable for a wide range of electrical and electronic assembly applications.
Capable of carrying currents up to 9 amps, this terminal supports operating temperatures from -40°C to 105°C, allowing use in demanding environments. The maximum voltage rating is 600 volts, providing safe power transmission. The design facilitates easy crimp termination, ensuring reliable mechanical and electrical connections. Contact resistance is minimized at 10 milliohms, improving conductivity and performance.
The terminal accommodates wire insulation diameters between 1.30 mm and 3.10 mm and can endure up to 30 mating cycles, supporting long-term reliability in maintenance and repeated assembly scenarios.
Compatible with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings. Brass contact material with tin plating for enhanced corrosion resistance and conductivity. Rated for currents up to 9 amps at voltages up to 600 volts.
Wide operating temperature range from -40°C to 105°C. Maximum contact resistance of 10 milliohms ensures efficient electrical performance. Supports reliable crimp termination for secure connections. Accommodates wire insulation diameters ranging from 1.30 mm to 3.10 mm.
Rated for up to 30 mating cycles for repeated use.
This crimp terminal is ideal for power distribution, automation, control systems, and compact electrical designs requiring dependable wire-to-board or wire-to-wire connections. It is used extensively in industrial, manufacturing, and commercial electronic assembly environments.
Explore more Crimp Terminals and connectors with Molex reliability in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this crimp terminal is 9 amps.
It supports wire sizes from 0.2 mm² (24 AWG) to 0.8 mm² (18 AWG).
The operating temperature range is from -40°C to 105°C.
This terminal uses crimp termination for secure connections.
The maximum contact resistance is 10 milliohms.
It is compatible with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.
The crimp terminal is made of brass with tin plating for corrosion resistance.
This terminal can endure up to 30 mating cycles.
The maximum voltage rating is 600 volts.
It accommodates wire insulation diameters ranging from 1.30 mm to 3.10 mm.
It is suitable for power distribution, automation, control systems, and compact electrical designs requiring wire-to-board or wire-to-wire connections.
The country of origin for this crimp terminal is India.
