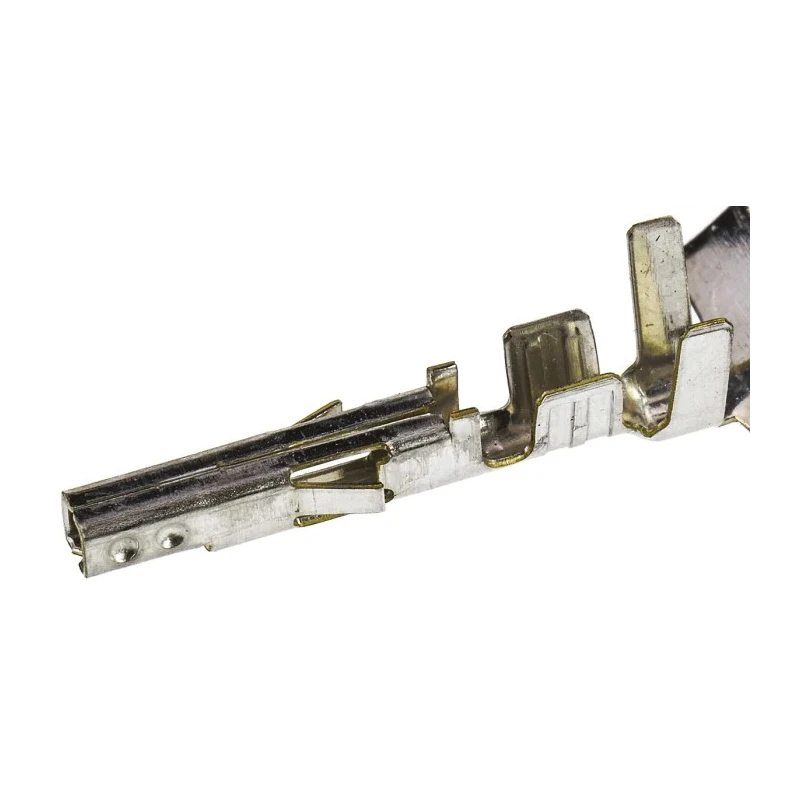

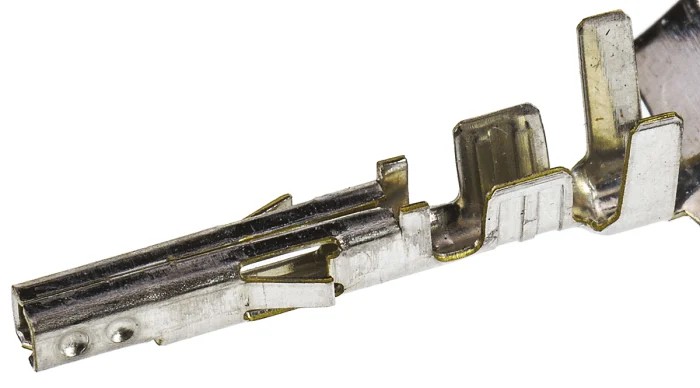

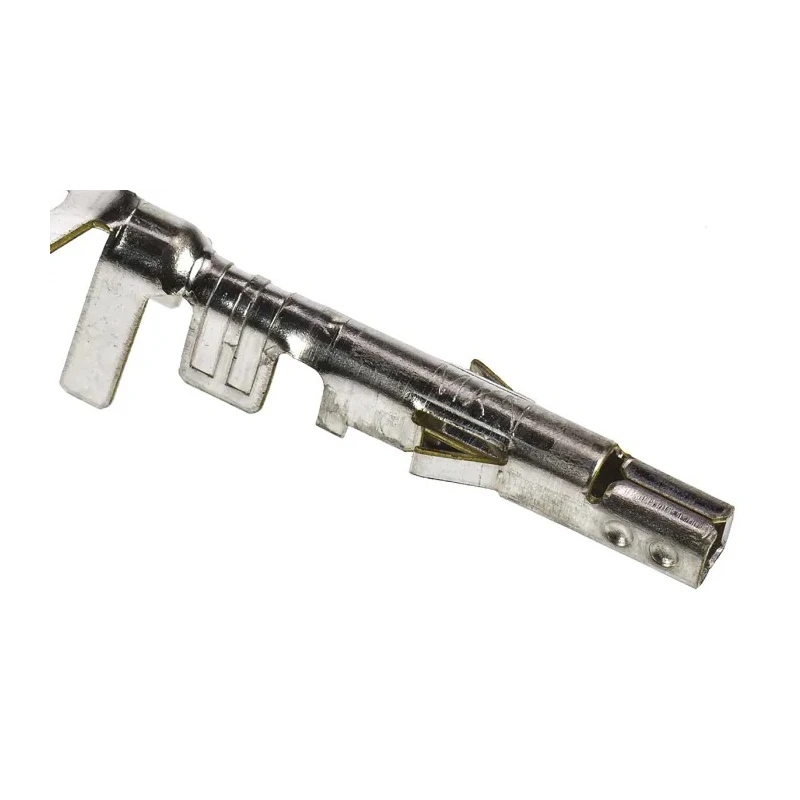

Molex 5556 Series Female Crimp Terminal, 22 AWG Min Crimp, 16 AWG Max, Tin-Plated Brass, 9A, Crimp Terminal 39-00-0077

The Molex 39-00-0077 Female Crimp Terminal from the 5556 Series offers a high-quality electrical connection solution for wiring systems. Designed to support wire gauges from 22 AWG minimum to 16 AWG maximum, this terminal is compatible with Molex Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings, ensuring broad application versatility.

Constructed with brass contacts plated with tin, the terminal provides low contact resistance (10 milliohms max) and excellent resistance to oxidation. This feature ensures long-lasting and reliable electrical conductivity under various conditions. Its crimp termination type and locking tang design secure the terminal firmly within connector housings, reducing maintenance needs and enhancing connection stability.

The terminal is rated for a maximum current capacity of 9 amperes and can withstand operating temperatures from -40°C to 105°C, making it suitable for demanding industrial environments and consumer electronics applications. Operating up to 600V ensures compatibility with many electrical systems.

Applications of this terminal include automotive, industrial automation, communications and networking, medical equipment, and general industrial machinery. It supports up to 30 mating cycles, confirming its durability in repeated connection scenarios.

Molex’s Mini-Fit crimp contacts are well-regarded for their multiple points of contact that enhance conductivity and their secure locking tangs that prevent accidental disconnection. The 5556 Series female Crimp Terminal 39-00-0077 is specifically designed to meet these industrial standards.

Compatible with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings. Wire size range supports 22 AWG minimum and 16 AWG maximum. Rated current capacity of 9A. Tinned brass contact material ensures durability and oxidation resistance.

Operating temperature from -40°C to 105°C. Crimp termination type with locking tangs for secure connections. Maximum contact resistance of 10mΩ for efficient electrical conduction. Maximum voltage rating of 600V. Applications include consumer electronics, industrial machinery, and power supplies.

This product is manufactured in the United States, guaranteeing manufacturing quality and reliability. It is a vital component for reliable electrical connections in demanding industrial, commercial, and consumer applications. Explore more Molex products and connectors on EnvMart to find complementary components and accessories.
