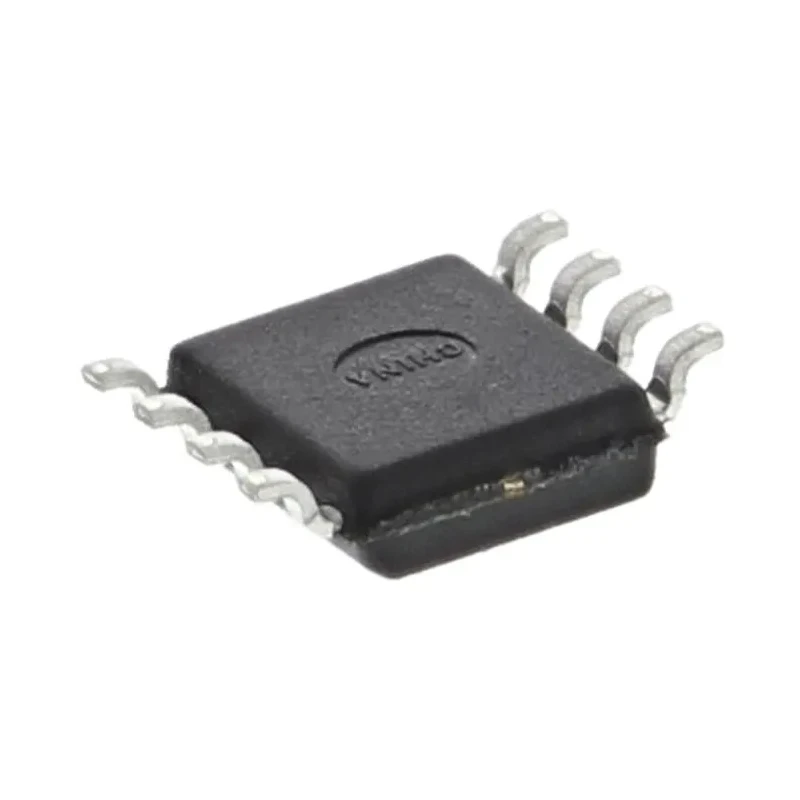

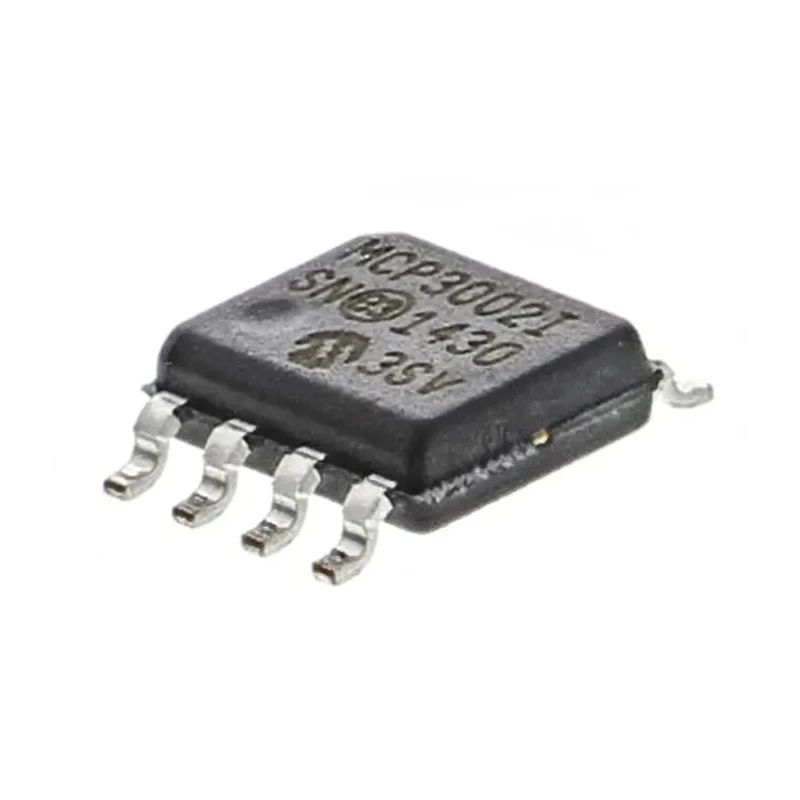

Microchip 2-Channel 10-Bit Successive Approximation Register (SAR) Analogue to Digital Converter 200ksps 8-Pin MCP3002-I/SN

Microchip MCP3002-I/SN is a high-performance analogue to digital converter (ADC) featuring a successive approximation register (SAR) architecture. It offers 10-bit resolution and dual input channels, enabling precise and efficient voltage measurement and conversion for a wide range of industrial, automotive, and electronic applications.

This ADC supports a fast sampling rate of 200ksps (kilo samples per second), making it suitable for real-time signal processing tasks. With its SPI communication interface and compact 8-pin SOIC surface mount package, it integrates seamlessly into modern PCB designs and embedded systems.

The device operates reliably within a supply voltage range of 5V to 5.5V and withstands extremes of temperature from -40°C to 85°C, meeting automotive grade AEC-Q100 standards. Such specifications make it ideal for automotive electronics, sensor data acquisition, industrial control systems, and instrumentation.

The MCP3002-I/SN is part of the MCP30/MCP32/MCP33 series that emphasize efficient SAR-based conversion to deliver accurate digital representations of analogue voltages. Its compact size and robust specifications facilitate integration into projects requiring small form factors and dependable ADC performance.

10-bit SAR ADC architecture. Dual analog inputs (2 ADCs) for flexible signal measurement. High speed sampling rate at 200ksps for fast data capture. Surface mount 8-pin SOIC package suitable for space-constrained applications.

Wide operating temperature range (-40°C to 85°C) compliant with automotive standards. SPI-compatible interface for straightforward digital communication. Maximum supply voltage of 5.5V and minimum of 5V for compatibility with standard logic levels.

Meets AEC-Q100 automotive qualification for enhanced durability under demanding conditions.

This product is ideal for use in industrial automation, automotive sensors, embedded system designs, and other electronic applications requiring precise and fast ADC conversion. Integrating the MCP3002-I/SN ADC supports improved measurement accuracy and system reliability.
