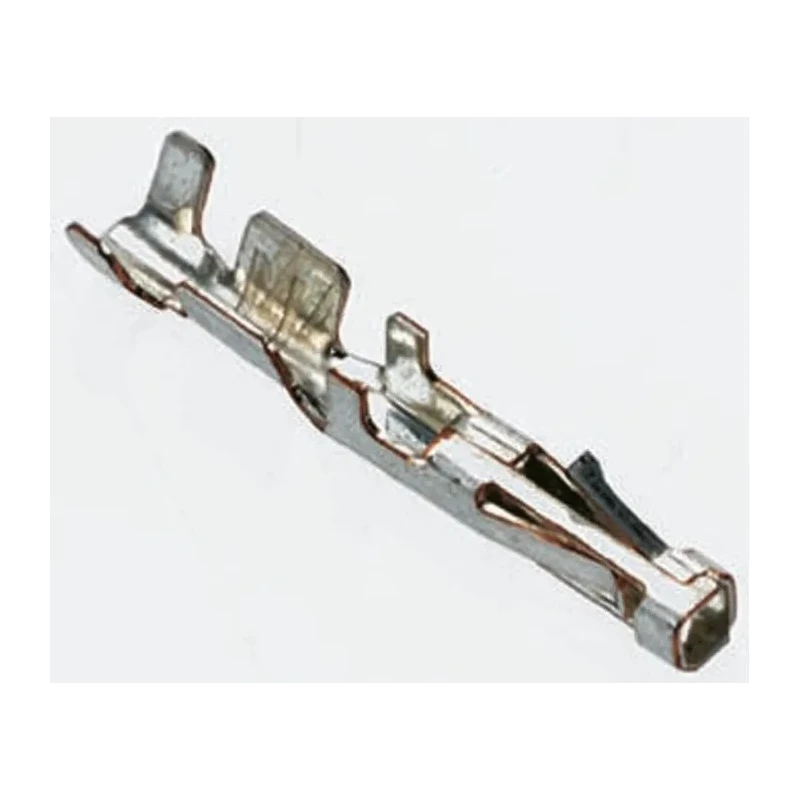

TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal, 3A Current, 26 AWG Min Crimp, 22 AWG Max 770986-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 3A |
| Length | 16.74mm |
| Model | 770986-1 |
| Gender | Female |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | Mini-Universal MATE-N-LOK Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Supports 3 ampere maximum current capacity.
- Compatible with Mini-Universal MATE-N-LOK Connector Housing.
- Suitable for wire sizes from 26 AWG to 22 AWG.
- Constructed from brass with tin-plated contacts.
- Crimp termination ensures secure mechanical and electrical connection.
- Operates within temperature range of -30°C to 105°C.
- Terminal length is 16.74 mm for precise fit.
- Maximum contact resistance of 20 milliohms.
Product Description
TE Connectivity 770986-1 Mini-Universal MATE-N-LOK Series Female Crimp Terminal is engineered for secure and durable terminations in electronic and electrical assemblies. It supports a current rating of 3 amperes and is compatible with Mini-Universal MATE-N-LOK connector housings, making it ideal for applications in electronics manufacturing, power distribution, and prototype device assembly.
The terminal is constructed from brass with a tin plating to provide excellent conductivity and corrosion resistance, ensuring long service life under various environmental conditions. It is designed to accommodate wire sizes from 26 AWG (0.1 mm²) minimum to 22 AWG (0.4 mm²) maximum, providing versatility across different wire gauges.
Its crimp termination type guarantees a strong mechanical and electrical bond, facilitating dependable connections in critical circuits. The terminal length of 16.74 mm ensures compatibility with Mini-Universal MATE-N-LOK connectors, enabling easy insertion and reliable mating.
The operating temperature range from -30°C to 105°C makes this terminal suitable for industrial, HVAC, telecommunications, and manufacturing environments where temperature fluctuations occur.
Supports 3 ampere maximum current capacity. Compatible with Mini-Universal MATE-N-LOK Connector Housing. Suitable for 26 AWG to 22 AWG wire sizes. Brass contact material with tin plating for enhanced durability. Crimp termination ensures secure electrical connection.
Operating temperature range from -30°C to 105°C. Terminal length of 16.74 mm for precise connector fit. Maximum contact resistance of 20 milliohms.
This female crimp terminal is ideal for professional electrical assemblies requiring durable, high-quality connectors. TE Connectivity's commitment to quality ensures consistent performance meeting industry standards, supporting applications in electronic components, power connectors, and PCB assemblies.
Explore EnvMart’s selection of TE Connectivity connectors to find compatible components and tooling solutions for your project needs.
Explore more products in our PCB Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a maximum current capacity of 3 amperes.
This terminal is suitable for wire sizes from 26 AWG (0.1 mm²) minimum to 22 AWG (0.4 mm²) maximum.
The terminal length is 16.74 mm, ensuring a precise fit with compatible connectors.
It features a crimp termination type, which ensures a secure mechanical and electrical connection.
It operates within a temperature range of -30°C to 105°C, suitable for various industrial environments.
The terminal is constructed from brass with tin plating, providing excellent conductivity and corrosion resistance.
It is compatible with Mini-Universal MATE-N-LOK connector housings.
The maximum contact resistance is 20 milliohms, ensuring efficient electrical connectivity.
This model is a female crimp terminal.
It is suitable for applications in electronics manufacturing, power distribution, and prototype device assembly.
The country of origin for this terminal is India.
This terminal belongs to the Mini-Universal MATE-N-LOK series.
