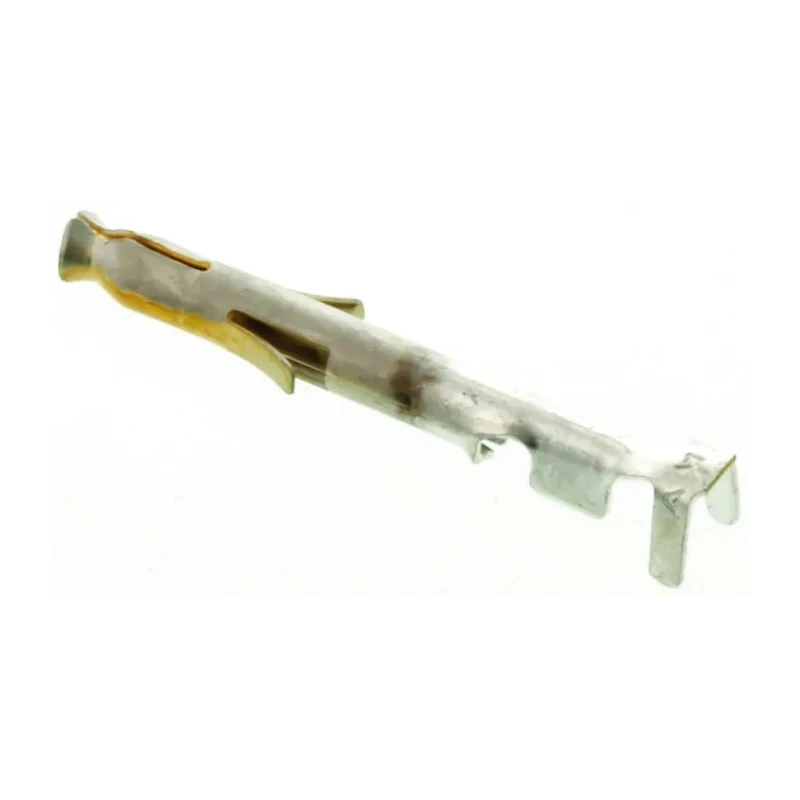

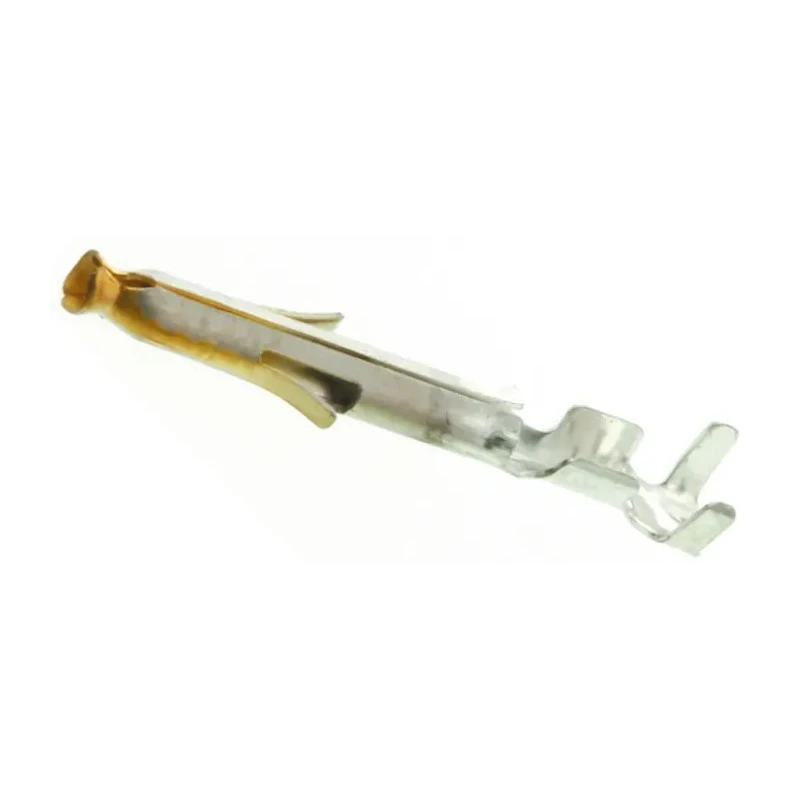

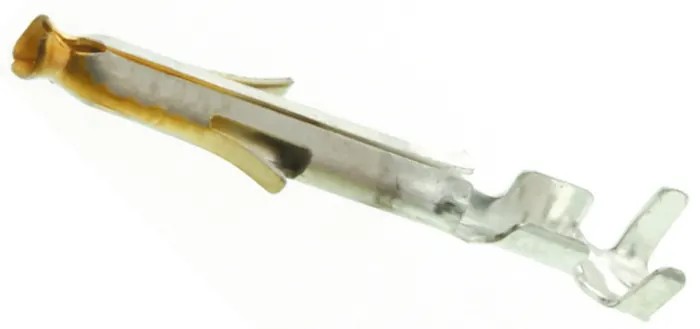

TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal, 9.5A Current, 26 AWG Min, 22 AWG Max 1-770986-0
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Current | 9.5A |
| Gender | Female |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | Mini-Universal MATE-N-LOK Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Supports a maximum current of 9.5 amperes for efficient electrical performance.
- Constructed from brass material with gold plating to ensure corrosion resistance and conductivity.
- Compatible with Mini-Universal MATE-N-LOK connector housings for versatile use.
- Termination type is crimp, facilitating secure and durable wire connections.
- Operates reliably in temperatures ranging from -55°C to 105°C for diverse environments.
- Maximum contact resistance is limited to 20 milliohms, ensuring signal integrity.
- Manufactured in the United States to high-quality standards.
Product Description
TE Connectivity 1-770986-0 Mini-Universal MATE-N-LOK series female crimp terminal is engineered for secure electrical connections in industrial and electronic assembly applications. Featuring a durable brass construction with gold plating, this crimp terminal supports wire sizes from 26 AWG minimum to 22 AWG maximum, with a rated current of 9.5 amperes to accommodate various signal and power requirements.
The compact design is intended for use with Mini-Universal MATE-N-LOK connector housings, facilitating reliable wire-to-wire or wire-to-board connections in demanding environments. With a termination type of crimp, these terminals ensure consistent mechanical retention and electrical conductivity.
The connector operates effectively across a broad temperature range of -55°C to 105°C, suitable for automotive, industrial machinery, and consumer electronics contexts. The maximum contact resistance of 20 milliohms supports improved signal performance with reduced loss.
Manufactured in the United States, this product meets stringent quality and reliability benchmarks, although no formal certifications are specified. It is ideal for industrial, manufacturing, and electronics prototyping tasks where secure and stable connections are critical.
Supports a maximum current of 9.5 amperes for efficient electrical performance. Brass contact with gold plating ensures superior conductivity and corrosion resistance. Crimp termination offers durable and reliable wire connections.
Wide operating temperature range from -55°C to 105°C for versatility. Compatible with Mini-Universal MATE-N-LOK connector housings. Low maximum contact resistance of 20 milliohms helps maintain signal integrity. Suitable for applications across industrial, electronic components, power and connector assemblies.
Explore more electronic connectors and components to suit your project requirements on EnvMart.
Explore more products in our Mini I/O Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports a maximum current of 9.5 amperes, ensuring efficient electrical performance.
It is compatible with wire sizes ranging from 26 AWG minimum to 22 AWG maximum.
The terminal is constructed from brass and features gold plating, which provides corrosion resistance and enhances conductivity.
This model operates reliably in temperatures ranging from -55°C to 105°C, making it suitable for diverse environments.
The terminal uses a crimp termination type, which facilitates secure and durable wire connections.
It is designed for use with Mini-Universal MATE-N-LOK connector housings, allowing versatile applications.
The maximum contact resistance is limited to 20 milliohms, which helps maintain signal integrity.
This crimp terminal is manufactured in the United States to high-quality standards.
It is suitable for applications in industrial, manufacturing, and electronics prototyping tasks where secure connections are critical.
This terminal is a female crimp terminal, designed for specific connection requirements.
The gold plating on the brass contact ensures superior conductivity and corrosion resistance, enhancing the terminal's performance.
This terminal belongs to the Mini-Universal MATE-N-LOK series, which is designed for reliable electrical connections.
