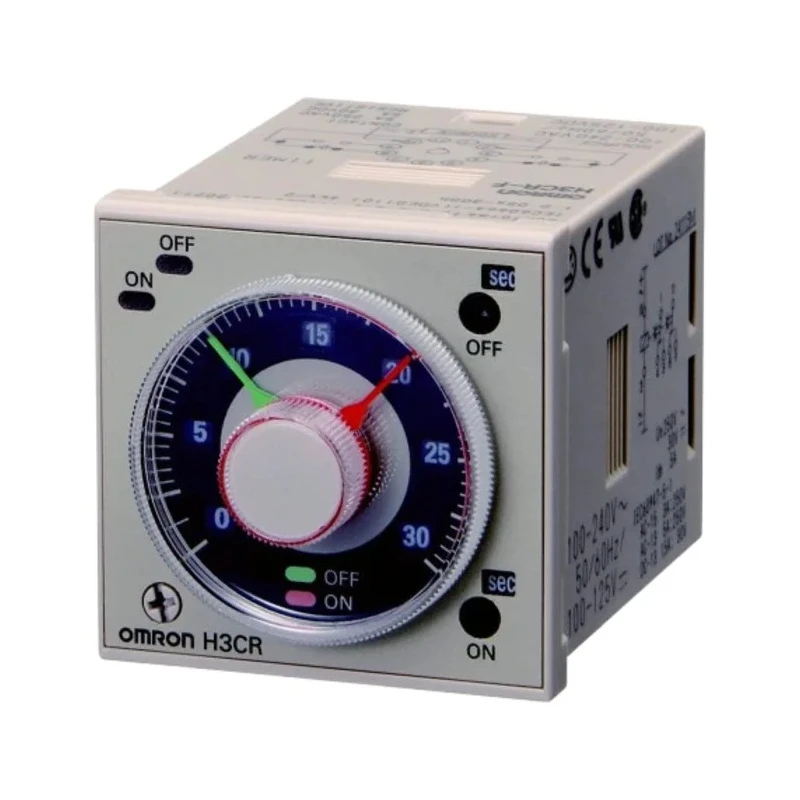

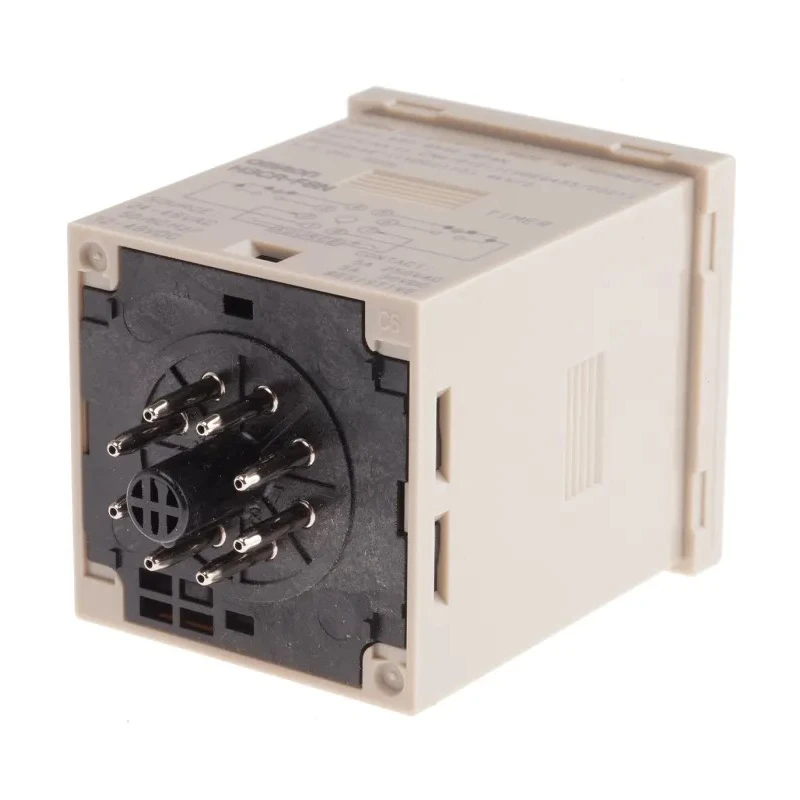

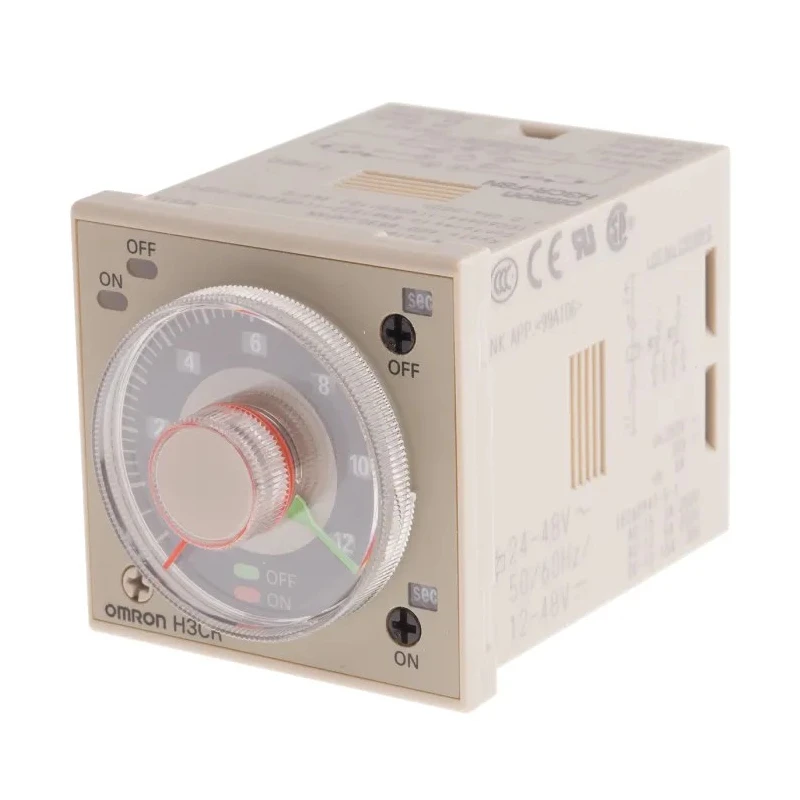

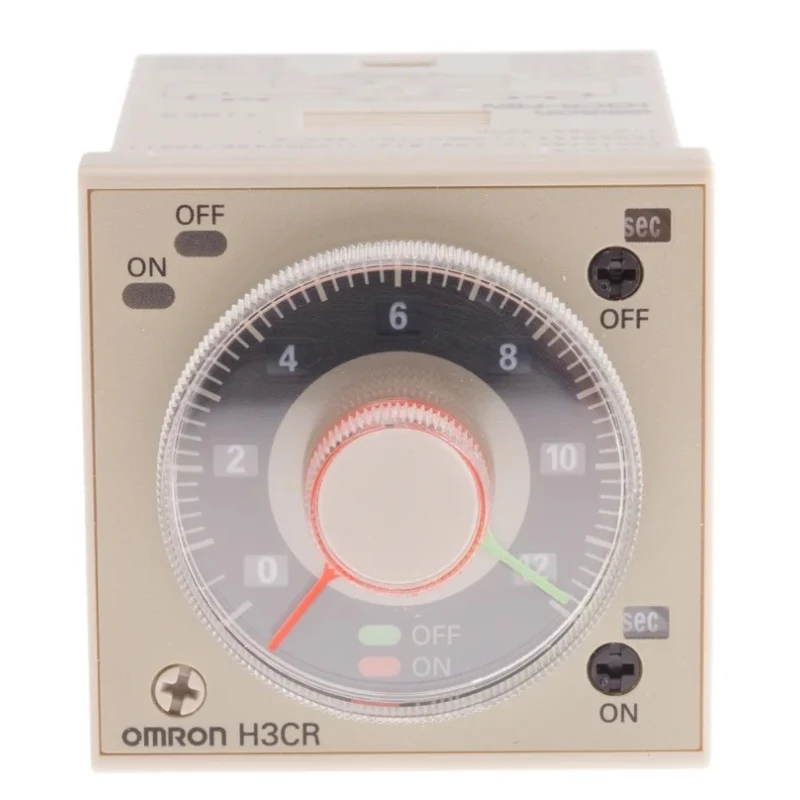

Omron H3CR Series DIN Rail Timer Relay, DPDT Contact, 48 V DC/24-48 V AC, 0.05 s to 300 h Multifunction

Free Delivery in India | Lowest Global Shipping Charges

Omron H3CR Series DIN Rail Timer Relay, DPDT Contact, 48 V DC/24-48 V AC, 0.05 s to 300 h Multifunction

Name: Omron H3CR Series DIN Rail Timer Relay, DPDT Contact, 48 V DC/24-48 V AC, 0.05 s to 300 h Multifunction
Brand: Omron
SKU: 345389
Price: 176.7 USD
Availability: InStock



Category Timer Relay Brand Omron Condition New

Specifications

Country of Origin	India
Brand	Omron
Height	53mm
Length	48mm
Model	H3CR
IP Rating	IP40
Mode	Star-Delta
Width	44.8mm
Mount Type	DIN Rail
Series	H3CR
Maximum Operating Temperature	55°C
Contact Configuration	DPDT
Minimum Operating Temperature	-10°C
Time Range	0.05 s to 300 h
Terminal type	8-Pin
Standards/Approvals	EN, CSA, UR
Number of Contacts	2
Number of Timer Functions	Multifunction
Switching Voltage	24V ac
Contact Current	3A
Supply DC Voltage	48 V dc
Supply AC Voltage	24, 48V

Key Features

Operates within a time range from 0.05 seconds up to 300 hours for diverse timing requirements.
Designed for DIN rail mounting, facilitating integration within electrical panels.
Features a robust DPDT contact configuration supporting a contact current of 3A.
Wide supply voltage compatibility ranging from 12 V DC to 48 V AC ensures flexible application.
IP40 rated housing suitable for industrial environments with maximum operating temperature of 55°C.
Equipped with 8-pin terminal type and compact dimensions of 48 mm length, 53 mm height, and 44.8 mm width.
Complies with EN, CSA, and UR standards, ensuring reliability and safety.
Multi-function timer capabilities extend use-case applications.

Product Description

The Omron H3CR-F8N AC24-48/DC12-48 timer relay is a multifunction timer designed for industrial and automation control systems requiring precise timing and reliable operation. This DIN rail mountable relay supports a dual-pole double-throw (DPDT) contact configuration, enabling flexible circuit designs and control applications.

With a supply voltage range covering 48 V DC and 24 to 48 V AC, this versatile timer relay performs timing operations from as little as 0.05 seconds to as long as 300 hours, accommodating a wide spectrum of industrial processes. Its multifunction capabilities enhance adaptability, making it suitable for HVAC systems, manufacturing machinery, sequential start-up procedures, and electrical control panels.

The device includes an 8-pin terminal type connector, simplified installation on standard DIN rails, and dimensions optimized for compact panel integration. It features a 3A contact current rating and an IP40 ingress protection rating, ensuring durability in standard industrial environments with operating temperatures from -10°C to +55°C.

Compliant with EN, CSA, and UR standards, the H3CR timer relay guarantees quality and industry-accepted safety while providing reliable timing performance critical for automation and control applications.

Multifunction timer with DPDT contact configuration. 0.05 s to 300 h timing range for diverse operational needs. Supports 48 V DC and 24 to 48 V AC supply voltages. Compact design fits standard DIN rails easily. 3A contact current capacity for reliable switching.

IP40 rated enclosure suitable for industrial use. Compliance with EN, CSA, and UR safety standards. Ideal for timing control in HVAC, manufacturing, and electrical panels.

This timer relay is an excellent choice for automation engineers and industrial control panel manufacturers requiring dependable, precise timing solutions within constrained space. Browse more from Omron Timer Relays and related automation controls at EnvMart for comprehensive industrial automation solutions.
