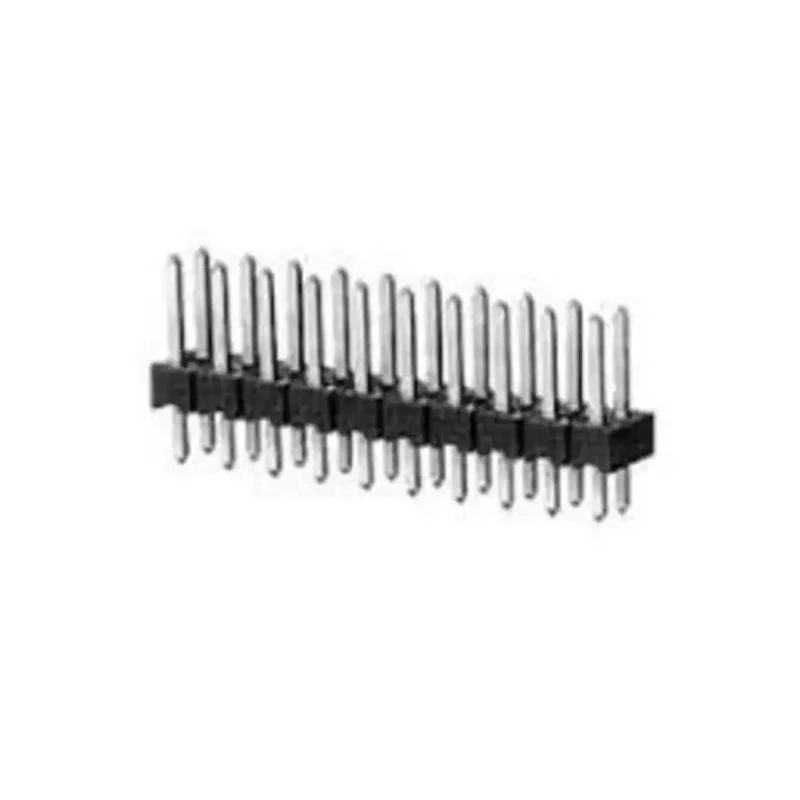

TE Connectivity AMPMODU Series Vertical Through Hole Pin Header 24 Contacts 2.54mm Pitch 2 Row Unshrouded 1-828430-2

TE Connectivity 1-828430-2 AMPMODU Series Vertical Through Hole Pin Header is a high-quality PCB connector designed to provide reliable electrical connections in a compact and robust form factor. Featuring 24 contacts arranged in two rows with a precise 2.54 mm pitch, this pin header is ideal for board-to-board connection systems commonly used in industrial and commercial electronic applications.

The pin header contacts are made from brass with tin plating, ensuring excellent conductivity and resistance to corrosion. The green polyester housing offers secure insulation, mechanical stability, and chemical resistance needed for demanding environments. Its vertical through-hole mount style supports robust solder joints for durable assembly on printed circuit boards.

Rated for a maximum operating current of 3 A and voltage of 750 V, the connector meets typical performance requirements for signal and low power applications. It operates reliably in a temperature range from -40°C to 105°C, accommodating harsh industrial conditions. The male gender contact configuration allows easy mating with compatible female connectors, and the unshrouded design provides straightforward access for soldering and maintenance.

This TE Connectivity pin header is widely used in industrial automation, control systems, communication devices, and electrical assemblies requiring strong inter-board connectors. Its compact size and standard pitch make it suitable for various electronic designs and manufacturing processes.

This pin header belongs to the AMPMODU series designed for board-to-board applications. The 2.54 mm pitch and dual row configuration ensure precise alignment and reliable electrical connections. Constructed with brass contacts plated with tin for durability and conductivity.

The housing is made of green polyester material offering good insulation and chemical resistance. Rated for a current of 3 A and voltage of 750 V, supporting demanding circuit requirements. Designed with male contact gender and tail pins measuring 2.65 mm for through-hole soldering.

Suitable for operating temperatures ranging from -40°C up to 105°C. Vertical orientation and unshrouded style provide easy access for soldering and inspection. Ideal for industrial electronics, automation, communication, and control systems.

Explore the full range of PCB Headers from TE Connectivity on EnvMart for reliable and certified electronic component solutions.
