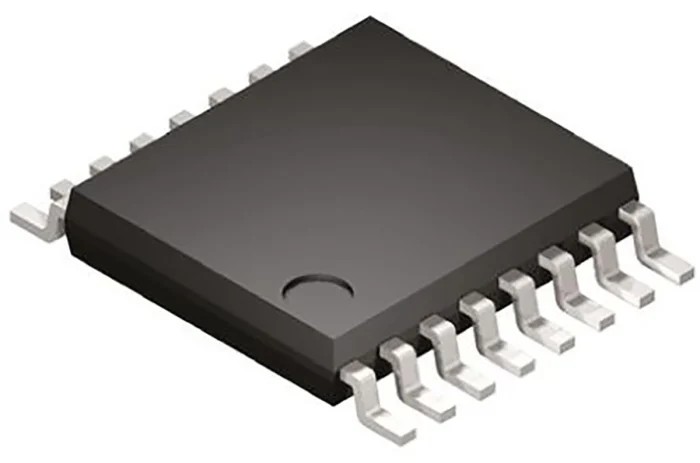

Texas Instruments SN74AVC4T245PWT 4-Bit Non-Inverting CMOS Bus Transceiver, 16-Pin TSSOP Package SN74AVC4T245PWT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.15mm |
| Length | 5mm |
| Model | SN74AVC4T245PWT |
| Mount Type | Surface |
| Output type | 3 State |
| Series | SN74AVC4T245 |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| Number Of Channels | 4 |
| Pin Count | 16 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | AVC |
| Logic Function | Bus Transceiver |
| Minimum Supply Voltage | 1.2V |
| Maximum High Level Output Current | -12mA |
| Maximum Propagation Delay Time @ CL | 5.6ns |
| Maximum Low Level Output Current | 12mA |
| Output Level | CMOS |
| Input Level | CMOS |
Key Features
- Operates on a minimum supply voltage of 1.2V and a maximum supply voltage of 3.6V.
- Features a maximum propagation delay time of 5.6ns at CL.
- Designed for surface mount with a compact 16-pin TSSOP package.
- Supports 4 channels with non-inverting polarity for reliable data transmission.
- Operates over a temperature range from -40°C to 85°C ensuring industrial reliability.
- CMOS input and output levels provide compatibility with modern digital circuits.
- Output type is 3-state for flexible bus sharing.
- Compact dimensions with 1.15mm height and 5mm length enhance PCB integration.
Product Description
Texas Instruments SN74AVC4T245PWT is a 4-bit non-inverting CMOS bus transceiver in a 16-pin Thin Shrink Small Outline Package (TSSOP) optimized for digital signal applications requiring efficient direction control.
This device operates with a minimum supply voltage of 1.2V extending up to a maximum of 3.6V, making it suitable for low voltage systems. It features a propagation delay time of 5.6ns at CL, ensuring fast data transfer rates within complex electronic systems.
With 4 bi-directional channels and non-inverting logic, the SN74AVC4T245PWT facilitates smooth data flow in bus-oriented architectures. The device supports a 3-state output allowing multiple devices to share the bus safely.
Surface mount design with a compact 16-pin TSSOP package facilitates high-density PCB layouts. Mechanical dimensions of 1.15mm in height and 5mm in length help in optimizing space on the printed circuit board.
The device operates reliably over industrial temperature ranges from -40°C to 85°C, suitable for demanding industrial and commercial environments. CMOS input and output levels provide low power consumption and compatibility with contemporary digital systems.
This bus transceiver is part of the SN74AVC4T245 series by Texas Instruments, known for robust performance in electronic components. It finds extensive use in industrial automation, embedded systems, and digital communication designs.
Operates on a minimum supply voltage of 1.2V and maximum of 3.6V. Maximum propagation delay time of 5.6ns at CL for fast signal transmission. Surface mount device in 16-pin TSSOP package for compact PCB integration. 4 bi-directional channels with non-inverting logic function.
3-state output type for shared bus environments. Industrial operating temperature range from -40°C to 85°C. CMOS input/output levels for power efficiency. Compact physical dimensions: height 1.15mm, length 5mm. Explore our selection of Bus Transceivers for industrial applications at EnvMart, providing reliable and efficient logic IC solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a minimum supply voltage of 1.2V and a maximum supply voltage of 3.6V.
It supports 4 bi-directional channels with a non-inverting logic function.
The maximum propagation delay time is 5.6ns at CL, ensuring fast data transfer rates.
This unit has a height of 1.15mm and a length of 5mm, making it suitable for compact PCB layouts.
It features a 3-state output type, allowing for flexible bus sharing among multiple devices.
It operates reliably over an industrial temperature range from -40°C to 85°C.
This device is housed in a 16-pin Thin Shrink Small Outline Package (TSSOP).
It belongs to the AVC logic family, providing compatibility with modern digital circuits.
Both the input and output levels are CMOS, ensuring low power consumption and compatibility with contemporary systems.
The maximum high-level output current is -12mA, while the maximum low-level output current is 12mA.
Yes, it is designed for surface mount applications, facilitating high-density PCB integration.
It is widely used in industrial automation, embedded systems, and digital communication designs.
