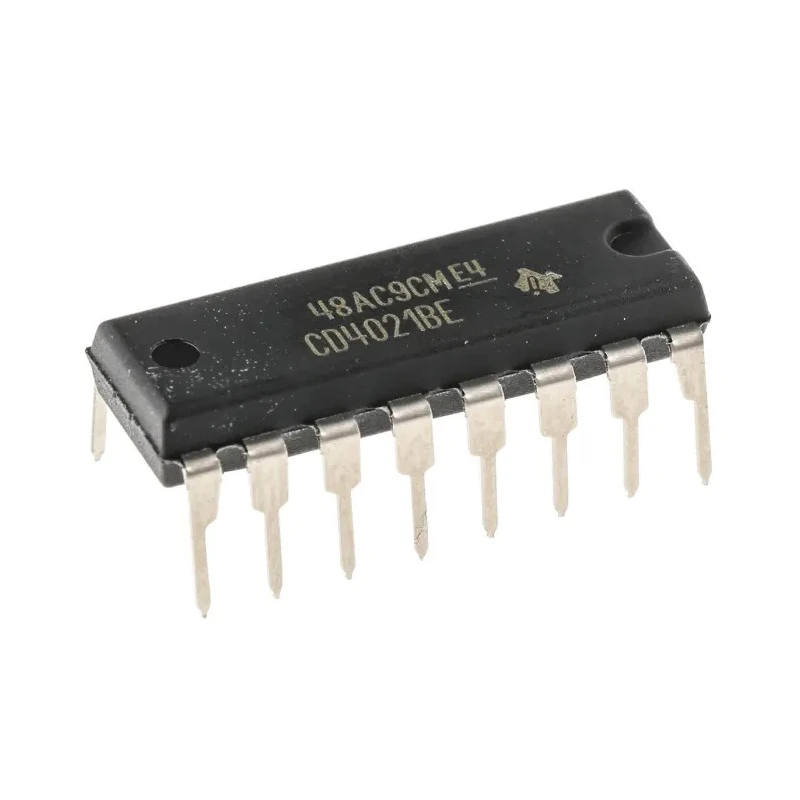

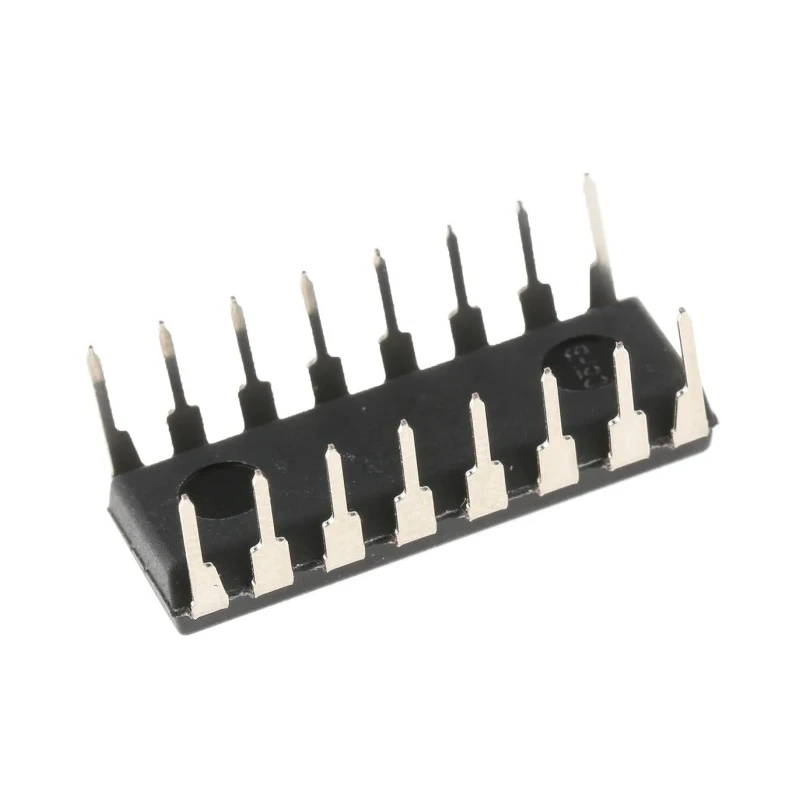

Texas Instruments 8-Stage Through Hole Binary Shift Register 4000 Series 16-Pin PDIP CD4021BE

Texas Instruments CD4021BE is an 8-stage binary shift register integrated circuit from the 4000 series CMOS logic family. Packaged in a 16-pin PDIP form factor, it supports through-hole mounting, making it ideal for prototyping and industrial applications.

This shift register operates over a wide voltage range from 3V to 18V, offering flexibility across various power supply conditions. It features uni-directional data shifting functionality with high-speed clock capabilities reaching up to 8.5 MHz at 15V supply voltage, facilitating fast data processing in digital logic circuits.

Designed for robust operation, the device functions within a temperature range of -55°C to 125°C, suitable for industrial environments. It is RoHS compliant, ensuring it meets environmental and safety guidelines.

The CD4021BE is commonly employed in counter IC circuits, digital data storage, and serial-to-parallel data conversion applications within electronics manufacturing, industrial automation, and laboratory equipment.

The 8-stage binary configuration enables efficient bit-wise data manipulation. The 16-pin PDIP package is favorable for standard through-hole PCB assembly and easy integration. Wide operating voltage range accommodates diverse electronic designs.

High maximum clock frequency allows for rapid data shifting in logic circuits. Wide operating temperature range ensures reliability in demanding environments. RoHS certification confirms compliance with environmental safety standards.

For engineers and designers, the CD4021BE offers a reliable and versatile solution for Shift Register needs. Discover more industrial electronic components and solutions in the Semiconductor category at EnvMart.
