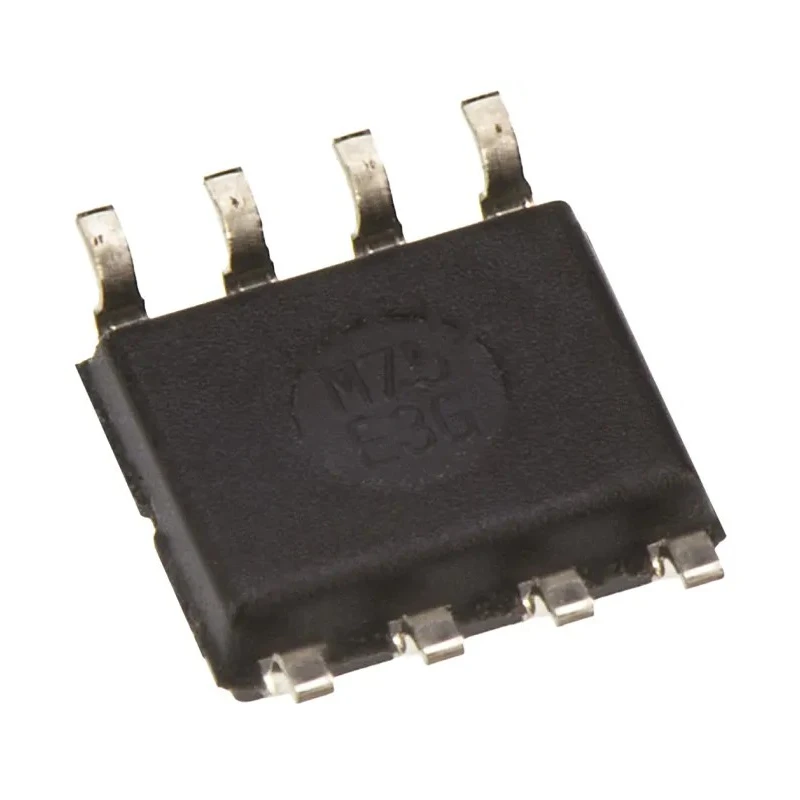

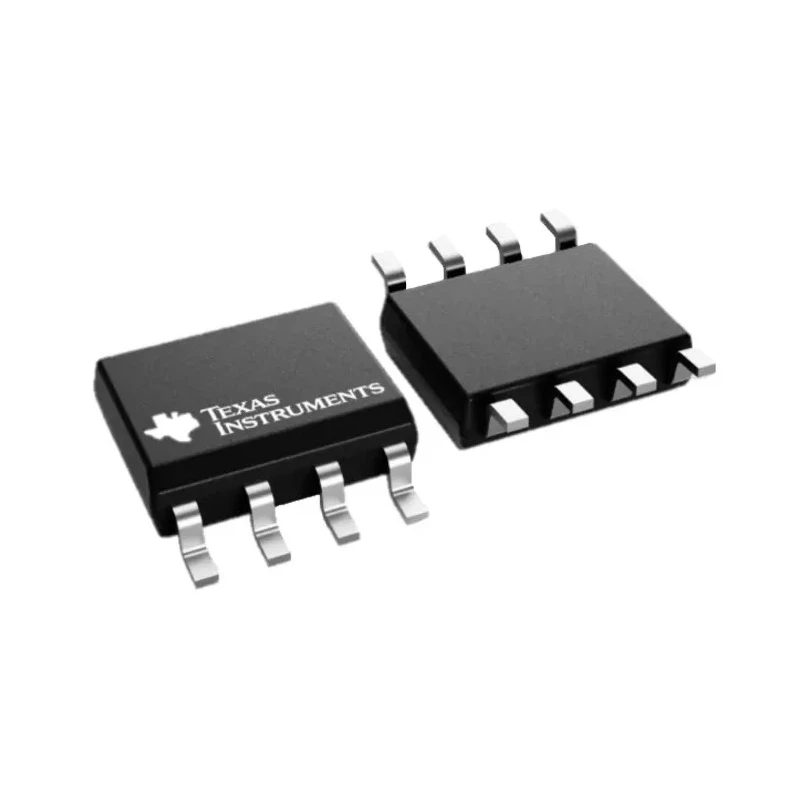

Texas Instruments Line Transceiver Differential Non-Inverting 8-Pin SOIC SN65HVD1781D

Texas Instruments SN65HVD1781D is an advanced line transceiver IC featuring differential and non-inverting logic designed for robust RS-485 communication in industrial and commercial electronic circuits. Packaged in an 8-pin SOIC surface-mount form factor, it allows for compact integration on printed circuit boards where space efficiency is critical.

The device operates with a supply voltage ranging from 4.5V to 5.5V and consumes a low supply current of approximately 6mA, making it suitable for power-sensitive applications. Its single-channel differential input and output ensures reliable data transfer with minimal signal degradation, suitable for long cable lengths and electrically noisy environments.

This transceiver's maximum propagation delay time of 200ns ensures timely communication cycles critical for precise industrial control and data acquisition systems. With operational temperatures ranging from -40°C to 125°C, it is well-tailored for harsh environments often found in manufacturing, instrumentation, and automation sectors.

Mechanical dimensions of 5mm length, 3.98mm width, and 1.75mm height facilitate inclusion in tight spaces while maintaining durability. Despite no specific automotive standards or approvals, the SN65HVD1781D provides robust performance for RS-485 line drivers and receivers in industrial, HVAC, manufacturing, and laboratory instrumentation applications.

Compact 8-pin SOIC surface mount package ensures ease of PCB integration. Non-inverting line transceiver supports differential signaling for noise immunity. Wide operating temperature range supports use in industrial environments.

Low supply current reduces overall system power consumption. High output currents of ±60mA support strong drive capability on the bus line. Designed for RS-485 communication protocols in automation and control. Reliable propagation delay specifications enable synchronized data transfers.

Compatible with embedded systems, industrial control, and instrumentation suites. Enables enhanced production efficiency by reliable inter-device communication. Suitable for laboratory instruments requiring noise-resistant communications.
