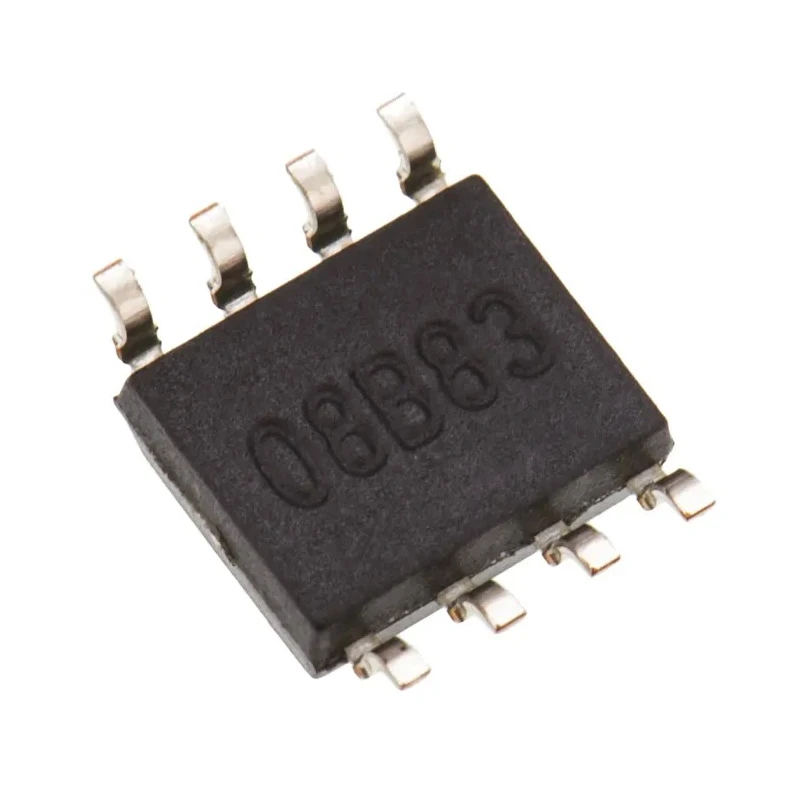

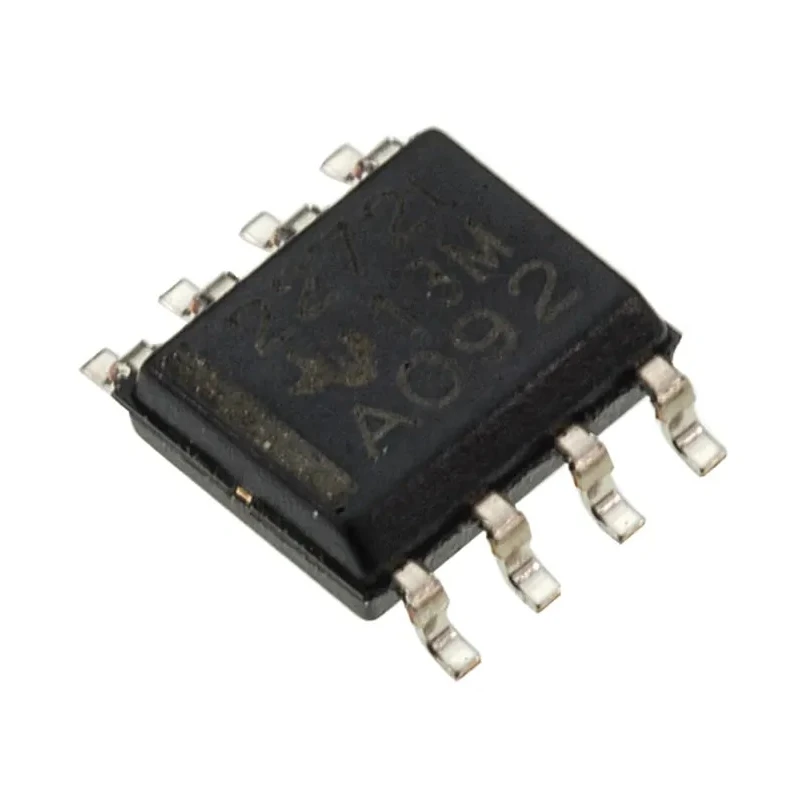

Texas Instruments Operational Amplifier 2.2 MHz 8-Pin SOIC Surface Mount TLC2272IDR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 4.9mm |
| Model | TLC2272IDR |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | TLC2272 |
| Output Current | 50mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 8V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 2.2MHz |
| Input Bias Current | 800 pA |
| Vos - Input Offset Voltage | 3 mV |
| Slew Rate | 3.6V/μs |
Key Features
- Gain bandwidth product of 2.2 MHz ensures efficient high frequency response.
- Surface mount SOIC package with 8 pins supports compact PCB layouts.
- Wide supply voltage range from 5 V to 8 V for versatile applications.
- Low input bias current of 800 pA for high accuracy.
- Slew rate of 3.6 V/μs enables fast signal changes.
- Operating temperature range from -40°C to 125°C for reliable performance.
- Input offset voltage of 3 mV minimizes signal distortion.
- Output current capability up to 50 mA suitable for various loads.
Product Description
Texas Instruments TLC2272IDR is a high-performance dual operational amplifier designed for precision analogue signal processing. With a gain bandwidth product of 2.2 MHz and a slew rate of 3.6 V/μs, it delivers fast and accurate signal amplification suitable for industrial, laboratory, and communication equipment.
The device comes in an 8-pin SOIC surface mount package, facilitating streamlined PCB assembly and space savings. Its wide supply voltage range from 5 V to 8 V allows flexibility across various system power configurations. Low input bias current of 800 pA and input offset voltage of 3 mV ensure signal integrity and minimal error in analog signals.
Operating reliably in temperatures from -40°C to 125°C, this amplifier meets both commercial and automotive standards, including the AEC-Q100 certification, making it suitable for robust automotive electronics and industrial environments. Its output current capability of 50 mA supports driving moderate loads efficiently.
Gain bandwidth product of 2.2 MHz for high frequency amplification. Compact 8-pin SOIC surface mount package for efficient space utilization. Dual-channel design supports versatile circuit applications. Wide supply voltage from 5 V to 8 V for system flexibility.
Low input bias current improves measurement accuracy. Fast slew rate of 3.6 V/μs for rapid signal response. Robust operating temperature range ensures consistent performance. Input offset voltage minimized to 3 mV reduces signal distortion.
Supports automotive electronics with AEC-Q100 compliance. Compact physical dimensions optimize PCB real estate.
This Operational Amplifier is ideal for applications in industrial automation, measurement instruments, audio processing, and automotive electronic systems. Its high precision and rugged design meet demanding requirements for signal conditioning and amplification.
Explore more Texas Instruments industrial amplifiers on EnvMart for enhanced electronic component solutions tailored to your engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 2.2 MHz, ensuring efficient high frequency response.
This operational amplifier can deliver an output current of up to 50 mA, making it suitable for various loads.
The dimensions of this model are 4.9 mm in length, 3.91 mm in width, and 1.58 mm in height.
It features a low input bias current of 800 pA, which enhances measurement accuracy.
This model operates reliably within a temperature range of -40°C to 125°C.
The slew rate of the TLC2272IDR is 3.6 V/μs, allowing for fast signal changes.
The input offset voltage is minimized to 3 mV, which helps reduce signal distortion.
It comes in an 8-pin SOIC surface mount package, which supports compact PCB layouts.
Yes, it meets the AEC-Q100 automotive standard, making it suitable for automotive applications.
The TLC2272IDR is RoHS compliant, ensuring it meets environmental standards.
