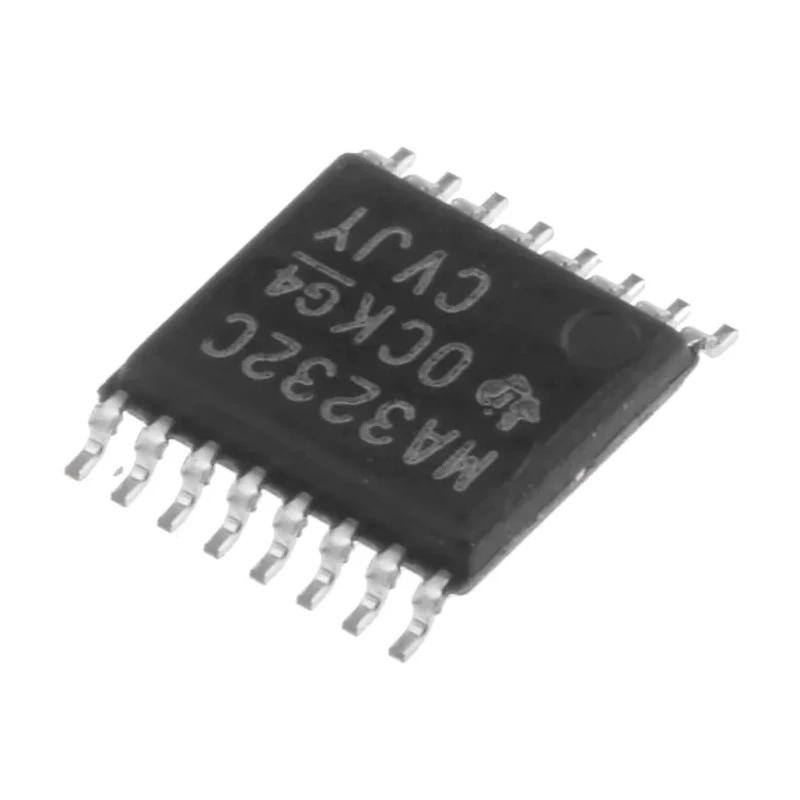

Texas Instruments 2-Channel Line Transceiver Surface Mount TSSOP 3V to 5.5V MAX3232CPW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.2mm |
| Length | 5.1mm |
| Model | MAX3232CPW |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | MAX3232 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 70°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | 0°C |
| IC Type | Dual Channel Transceiver |
| Number Of Channels | 2 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Function | Driver & Receiver |
| Minimum Supply Voltage | 3V |
| Maximum High Level Output Current | -1mA |
| Maximum Propagation Delay Time @ CL | 300ns |
| Supply Current | 1mA |
| Maximum Low Level Output Current | 1.6mA |
Key Features
- Suitable for dual channel RS-232 line transceiver applications.
- Operates with low supply current of around 1 mA.
- Supports single-ended input type with driver and receiver logic function.
- Surface mount device with compact TSSOP package dimensions.
- Operating temperature range from 0°C to 70°C for standard applications.
- High performance with maximum propagation delay of 300 ns at specified load capacitance.
- Pin count of 16 pins ensures compatibility with standard circuit designs.
- Compliant with TIA/EIA-232-F and ITU v.28 standards for RS-232 line interface.
Product Description
Texas Instruments MAX3232CPW is a 2-Channel Line Transceiver designed for RS-232 line interface applications. Featuring a 16-pin Thin Shrink Small Outline Package (TSSOP), this surface mount device operates efficiently over a supply voltage range from 3 V to 5.5 V, with a low supply current of approximately 1 mA. It combines two line drivers and two line receivers, making it ideal for dual channel communication interfaces in industrial and electronic designs.
This transceiver meets or exceeds the requirements of the TIA/EIA-232-F and ITU v.28 standards and provides robust ESD protection capabilities of up to ±15 kV (Human-Body Model) and ±8 kV (Contact Discharge), enhancing device reliability and durability in demanding environments.
The MAX3232CPW has a maximum propagation delay time of 300 ns at the recommended load capacitance, supporting communication speeds up to 1 Mbps. The device supports single-ended input and features driver and receiver logic functions suitable for various line interface applications.
Its compact dimensions (Length: 5.1 mm, Width: 4.5 mm, Height: 1.2 mm) enable the MAX3232CPW to be easily integrated within space-constrained setups. The device is designed for operation in standard temperature ranges from 0°C to 70°C and does not comply with automotive standards.
This product is suitable for industrial, electronic, and commercial embedded systems requiring reliable RS-232 line transceiver operation with minimal power consumption. The surface mount form factor ensures ease of assembly and volume manufacturing efficiency.
Suitable for dual channel RS-232 line transceiver applications. Operates with low supply current of around 1 mA. Supports single-ended input type with driver and receiver logic function. Surface mount device with compact TSSOP package dimensions.
Operating temperature range from 0°C to 70°C for standard applications. High performance with maximum propagation delay of 300 ns at specified load capacitance. Pin count of 16 pins ensures compatibility with standard circuit designs.
Compliant with TIA/EIA-232-F and ITU v.28 standards for RS-232 line interface. Incorporates ESD protection of up to ±15 kV (Human-Body Model) and ±8 kV (Contact Discharge). Explore the Electronics & Electricals category at EnvMart for more semiconductor and interface IC solutions from leading manufacturers.
Explore more products in our Line Interface ICs category.
