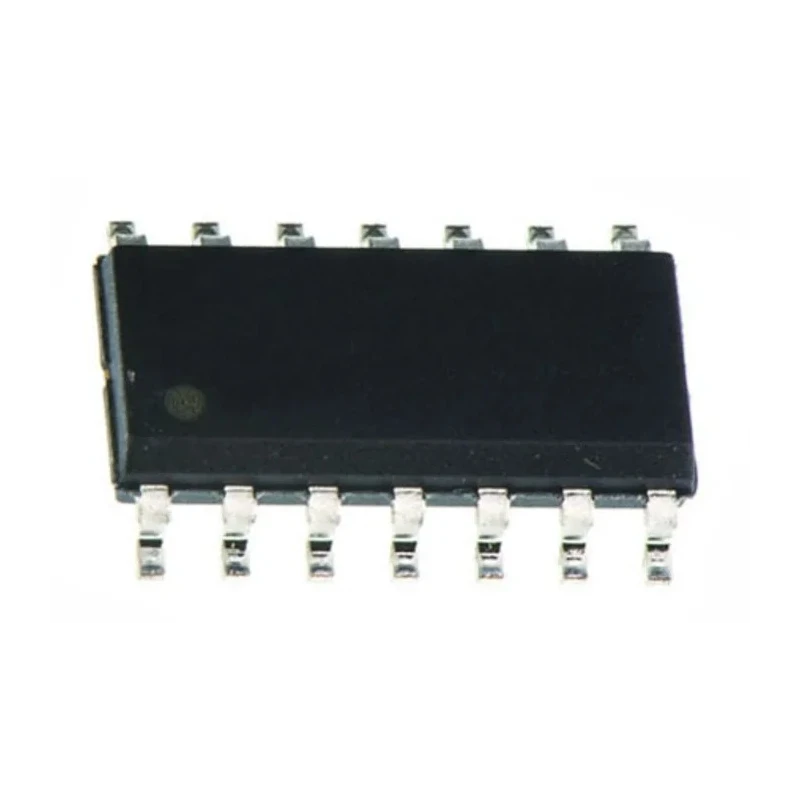

Texas Instruments Precision Operational Amplifier , 8 MHz Gain Bandwidth, 14-Pin SOIC, 4 Channels, 2.5V to 18V OPA4228UA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 8.65mm |
| Model | OPA4228UA |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | OPA4228 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Pin Count | 14 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 2.5V |
| GBP - Gain Bandwidth Product | 8MHz |
| Input Bias Current | ±10 nA |
| Slew Rate | 11V/μs |
| OPA4227UA Texas Instruments, Op Amp, 8MHz, 14-Pin SOICBrand | Texas Instruments |
Key Features
- Operates with a supply voltage range from 2.5V to 18V.
- Four independent amplifier channels in one IC.
- Gain bandwidth product of 8 MHz for high-speed amplification.
- Features low input bias current of ±10 nA and low input offset voltage of ±200 μV.
- Slew rate of 11 V/μs for fast response to signal changes.
- Wide operating temperature range from -40°C to 85°C.
- Surface mount package type SOIC with 14 pins for ease of assembly.
- Designed for precision applications like strain gauge amplifiers and active filters.
Product Description
Texas Instruments OPA4228UA is a precision operational amplifier designed for demanding applications requiring low parametric drift and high accuracy over time and temperature. This device contains four amplifier channels, packaged in a compact 14-pin SOIC surface mount package.
Featuring an 8 MHz gain bandwidth product, the OPA4228UA can operate within a supply voltage range of 2.5V minimum up to 18V maximum, making it versatile for various electronic designs. It offers a low input bias current of ±10 nA and an input offset voltage of ±200 μV, ensuring precise amplification for instrumentation needs.
The amplifier provides a high slew rate of 11 V/μs, allowing fast reaction to input signal changes, which is critical in active filters and transducer amplifier circuits. Its operating temperature range of -40°C to 85°C supports use in automotive and industrial environments.
Typical applications include strain gauge amplifiers, precision integrators, active filters, and high accuracy instrumentation systems. The 14-pin SOIC surface mount package aids in efficient PCB assembly and compact device layout.
Operates with a supply voltage range from 2.5V to 18V. Four independent amplifier channels in one IC. Gain bandwidth product of 8 MHz for high-speed amplification. Features low input bias current of ±10 nA and low input offset voltage of ±200 μV.
Slew rate of 11 V/μs for fast response to signal changes. Wide operating temperature range from -40°C to 85°C. Surface mount package type SOIC with 14 pins for ease of assembly. Compact dimensions: length 8.65 mm, width 3.91 mm, height 1.58 mm.
Designed for precision applications like strain gauge amplifiers and active filters. This OPA4228UA amplifier is suitable for use in industrial, automotive, manufacturing, and laboratory instrumentation applications requiring high performance linear amplification.
Explore more Texas Instruments amplifiers and Operational Amplifier ICs in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The OPA4228UA has a gain bandwidth product of 8 MHz, suitable for high-speed amplification applications.
This model operates with a supply voltage range from 2.5V to 18V, making it versatile for various electronic designs.
The OPA4228UA contains four independent amplifier channels in one integrated circuit.
It features a low input bias current of ±10 nA, which is important for precision applications.
The OPA4228UA has a slew rate of 11 V/μs, allowing for fast response to signal changes.
This operational amplifier operates within a temperature range of -40°C to 85°C, suitable for automotive and industrial environments.
The dimensions of this model are 8.65 mm in length, 3.91 mm in width, and 1.58 mm in height.
It is packaged in a 14-pin SOIC surface mount type, facilitating easy assembly on PCBs.
This operational amplifier is designed for precision applications such as strain gauge amplifiers and active filters.
The input offset voltage for this model is ±200 μV, ensuring high accuracy in amplification.
The OPA4228UA is manufactured in India.
This operational amplifier uses a surface mount type for installation.
