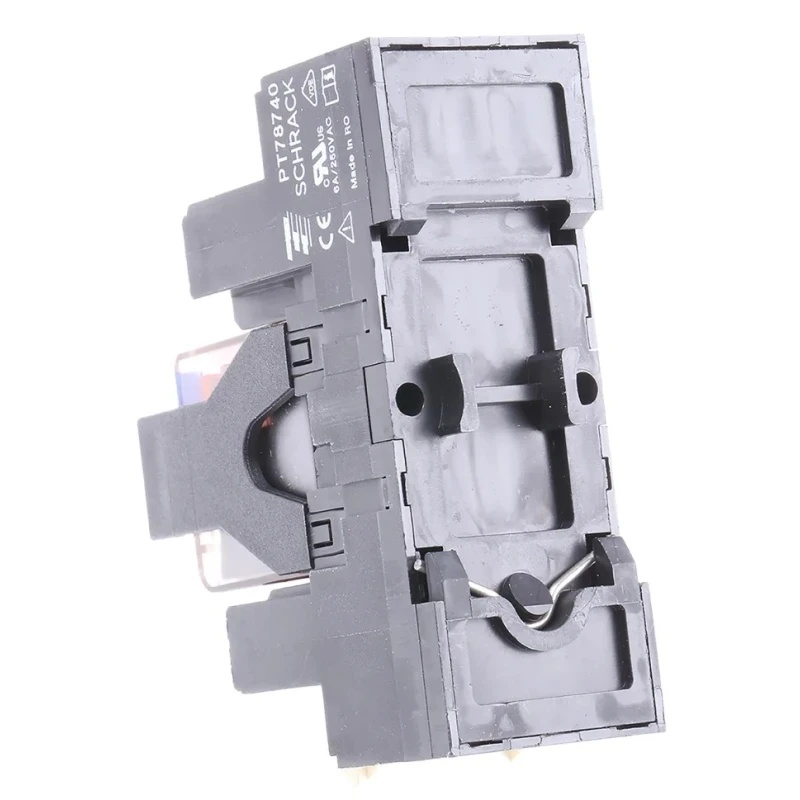

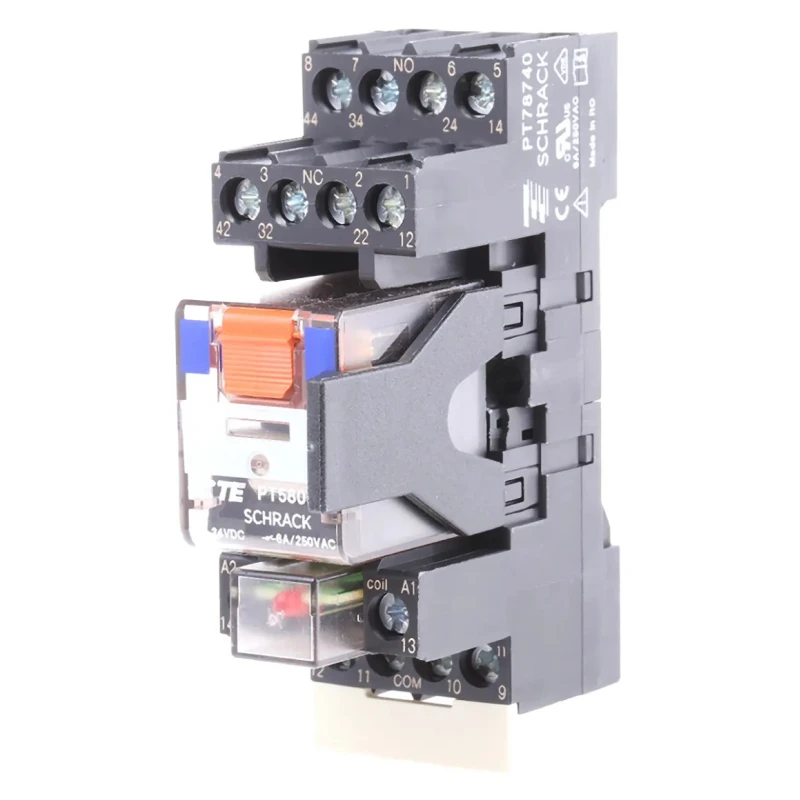

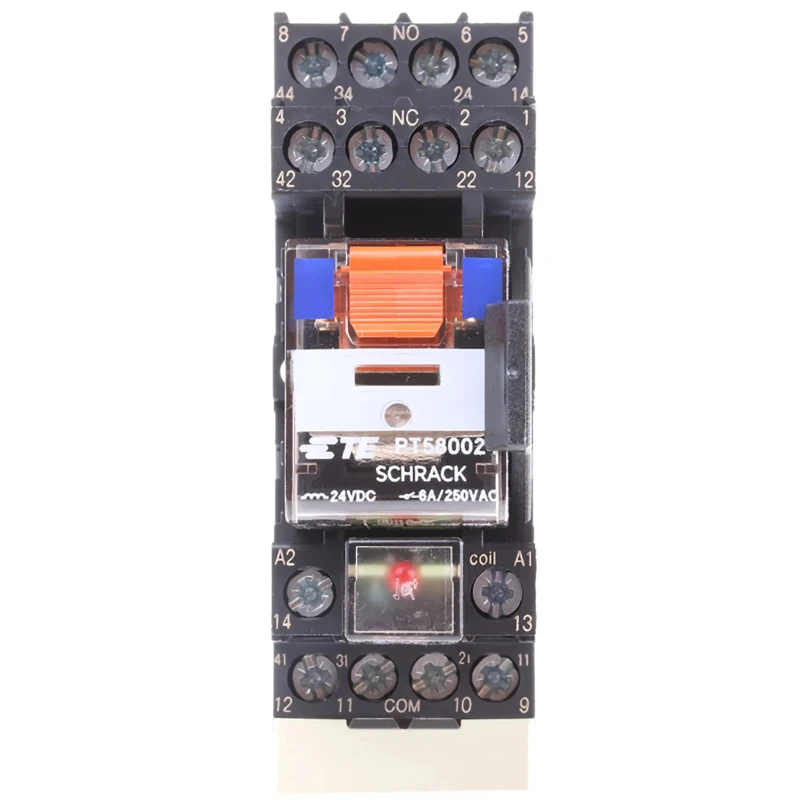

TE Connectivity DIN Rail Power Relay 24V dc Coil 6A Switching Current 4PDT PT5S8LC4 6-1415075-1

TE Connectivity PT5S8LC4 6-1415075-1 DIN Rail Power Relay features a 24V DC coil voltage and a switching current capacity of 6A, with a 4PDT contact configuration. It is designed for robust and precise control in industrial, electrical, and automation settings.

This relay includes a DIN Rail mounting system, making it easy to fit into existing control panels. The screw terminal type provides reliable and secure electrical connections. The gold plated contacts ensure optimal conductivity and longer service life.

The device operates efficiently across a wide temperature range from -40°C to a maximum of 70°C, suitable for harsh environments. It meets key international standards including IEC 61810-1, UL, VDE, and RoHS, guaranteeing compliance with safety and environmental regulations.

Dimensions are compact, measuring 73.5mm in length, 58mm in height, and 27mm in width, allowing for installation in space-constrained applications. The coil resistance is approximately 777 ohms and coil power consumption is rated at 750 mW.

The product package includes the relay, DIN rail socket, module, retainer, and marking tab. The relay is further equipped with visual mechanical and electrical indicators and a manual test tab for ease of maintenance. DC versions include LEDs and protection diode modules, enhancing reliability and operational monitoring.

This relay is ideal for use in industrial automation, electrical control panels, manufacturing, and instrumentation where reliable switching and control of electrical loads are required. Its compliance with multiple approvals assures quality and safety for professional use.

Features a 4PDT contact configuration for versatile switching capabilities. DIN Rail mount type ensures easy installation in electrical panels. Equipped with a screw terminal type for secure connections. Gold plated contact material enhances conductivity and durability.

Operates within -40°C to 70°C temperature range for broad environmental tolerance. Complies with IEC, UL, VDE, and RoHS standards for safety and environmental compliance. Compact dimensions: 73.5mm length, 58mm height, 27mm width for space-efficient integration.

Includes LED and protection diode modules to indicate coil status and provide coil protection. Typical coil resistance of 777 ohms and coil power consumption of 750 mW. Suitable for industrial, automation, and electrical power control applications.
