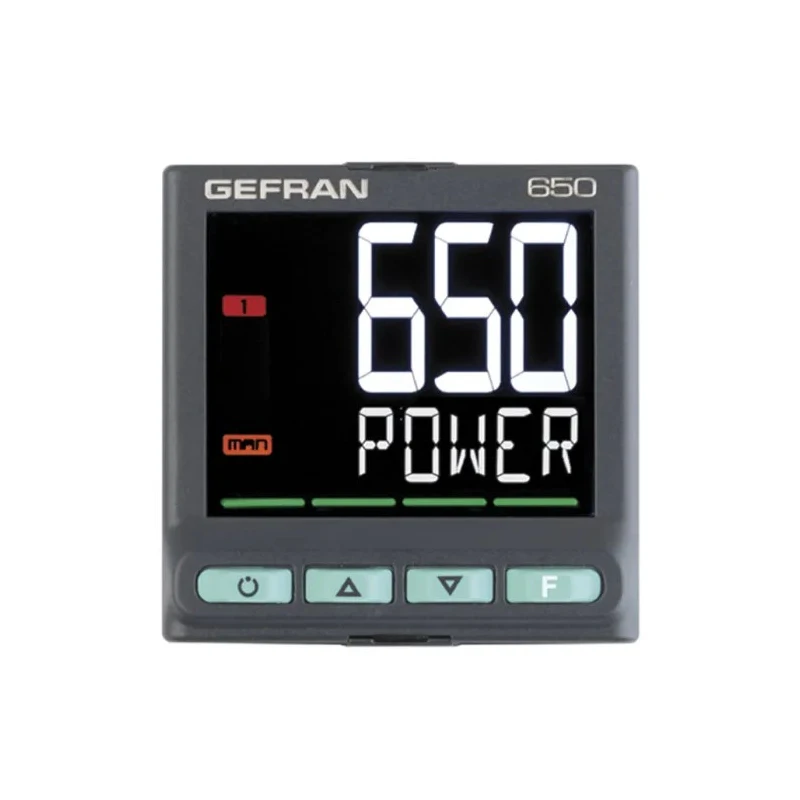

Gefran 650 Panel PID Temperature Controller, 2 Output Relay, 27V Supply, LCD Display, IP65 F065796/ 650-R-R00-00000-0-G
Specifications
| Country of Origin | Italy |
|---|---|
| Display Type | LCD |
| Brand | Gefran |
| Length | 48mm |
| Model | F065796/ 650-R-R00-00000-0-G |
| IP Rating | IP65 |
| Width | 48mm |
| Mount Type | Panel |
| Output type | Relay |
| Series | 650 |
| Maximum Operating Temperature | 55°C |
| Control Type | PID Controller |
| Minimum Operating Temperature | -10°C |
| Maximum Current | 20mA |
| Number of outputs | 2 |
| Terminal type | Screw |
| Standards/Approvals | CE, UL |
| Maximum Supply Voltage | 27V |
| Digital Comms | RS485 |
| Panel Depth | 80mm |
| Firing Mode | Phase Angle, Burst Fire |
| 3 configuration methods | from keyboard in only 7 steps, from PC with GF_eXpress configurator and from the Zapper portable configurator |
Key Features
- Panel-mounted controller with 48 x 48 mm LCD display for clear readings.
- Supports PID control with energy measurement and remote setpoint input.
- Features 2 relay outputs with a maximum current of 20mA for versatile control.
- Operates within -10°C to 55°C with robust IP65 rated enclosure.
- Equipped with RS485 digital communications and multiple password access levels.
- Includes preventive maintenance functions with energy counters (kWh) and load switching.
- Flexible customization with 3 configuration methods via keyboard, PC, or portable Zapper configurator.
- Complies with CE and UL standards, ensuring industrial reliability.
Product Description
Gefran F065796/ 650-R-R00-00000-0-G PID Temperature Controller is a precision industrial temperature control device designed for panel mounting. It features a robust 48 mm x 48 mm LCD display that provides clear visibility of process parameters and diagnostics, with IP65 protection rating ensuring durability in harsh environments.
This controller supports two relay output channels capable of handling currents up to 20mA, suited for accurate temperature regulation using PID control algorithms. Operable within a temperature range of -10°C to 55°C, it integrates energy measurement capabilities to monitor consumption effectively.
Communication is enabled via RS485 digital protocol, facilitating integration with industrial automation systems. The user interface allows for three different configuration methods: a simple 7-step process via the onboard keyboard, PC-based setup using the GF_eXpress configurator software, or programming with a portable Zapper device.
Additional features include multi-level password protection to safeguard configurations, diagnostic scrolling messages for real-time troubleshooting, and preventive maintenance tools with energy counters and load switching management.
Compliant with CE and UL industrial standards, this 650 series controller from Gefran is suitable for applications in industrial process control, HVAC systems, manufacturing automation, and laboratory environments where precise temperature control is critical.
Panel-mounted with clear LCD display and IP65 protection. Dual relay outputs supporting 20mA maximum current. PID control with energy metering and remote setpoint inputs. Three flexible configuration options for convenience.
RS485 communication and diagnostic messaging. Robust operation from -10°C to 55°C. Complies with CE and UL standards for industrial use. Choose Gefran Temperature Controllers from EnvMart for reliable, customizable temperature control solutions optimized for industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a temperature range of -10°C to 55°C.
It features a robust LCD display for clear visibility of process parameters and diagnostics.
It has two relay outputs, each capable of handling a maximum current of 20mA.
Configuration can be done via the onboard keyboard in 7 steps, using the GF_eXpress configurator software on a PC, or with a portable Zapper configurator.
It supports RS485 digital communication, facilitating integration with industrial automation systems.
This controller has an IP65 rating, ensuring protection against dust and water ingress.
It complies with CE and UL standards, ensuring it meets industrial reliability requirements.
The panel depth required for installation is 80mm.
The maximum supply voltage for this temperature controller is 27V.
It utilizes PID control for precise temperature regulation.
It is manufactured in Italy.
It is suitable for applications in industrial process control, HVAC systems, manufacturing automation, and laboratory environments.
