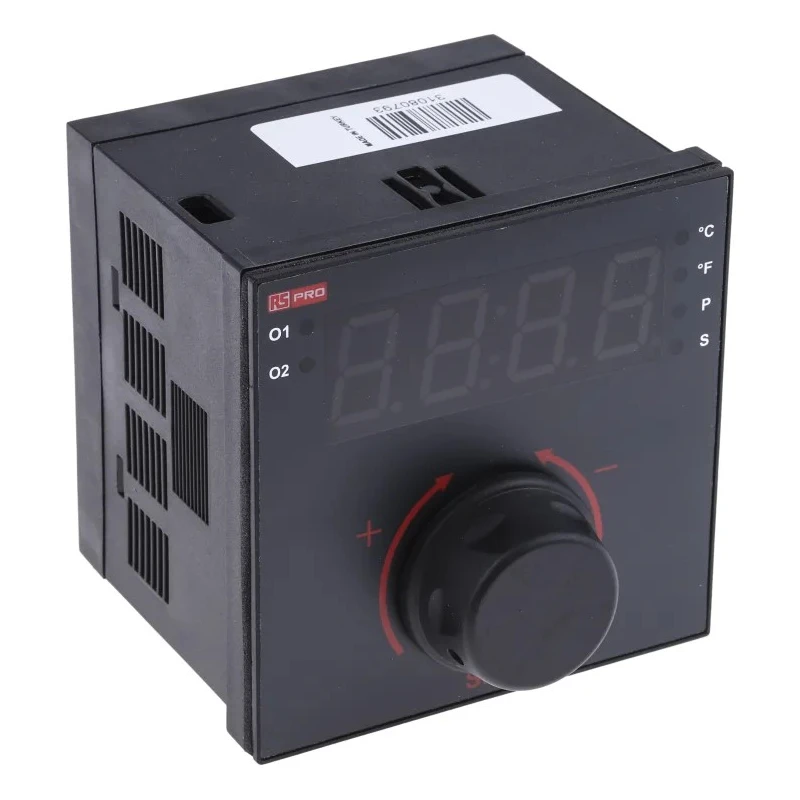

RS PRO Panel PID Temperature Controller 1 Input, 2 Output Relay 115V AC PID Controller 188-5166

RS PRO 188-5166 Panel PID Temperature Controller is a state-of-the-art temperature control device designed for precise regulation in industrial environments. With a single input and two relay outputs, this controller supports comprehensive temperature monitoring and management, suitable for processes requiring reliable control within 0°C to 50°C operational range. It features a robust 4-digit display enabling clear temperature visualization and supports a variety of thermocouple sensor types (J, K, R, S, T, L) conforming to IEC584.1 and ITS90 standards.

This device supports multiple control modes including ON/OFF, P, PI, PD, and advanced PID control, allowing for tailored process responsiveness. The built-in Auto Tune and Self Tune functionalities facilitate automatic adjustment of PID coefficients to optimize system performance without manual recalibration.

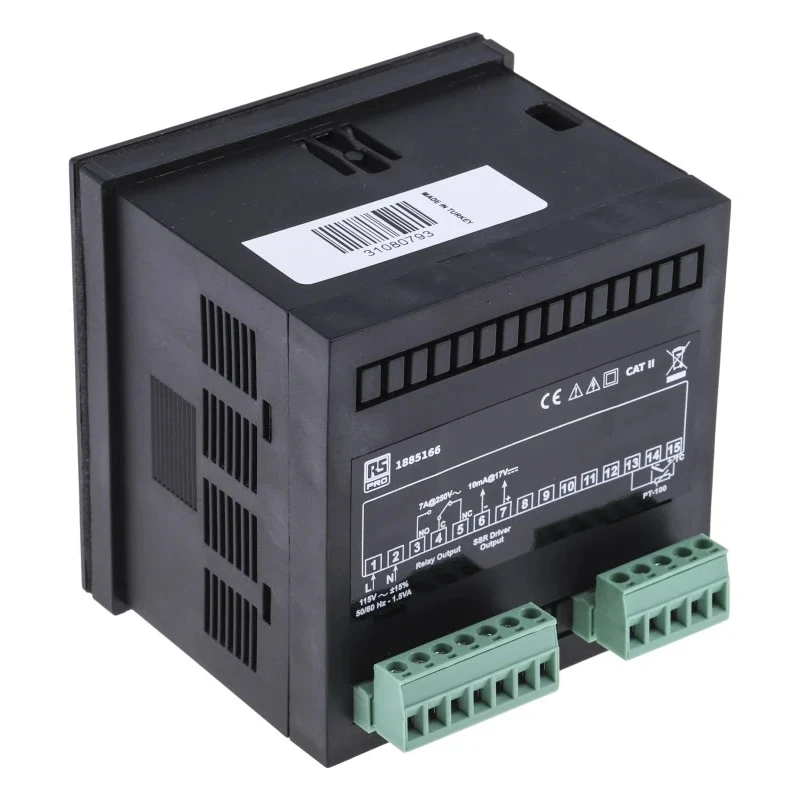

The panel-mounted unit measures 96 mm in length and width, with a panel depth of 76 mm, and includes IP65 front protection, safeguarding against dust and water ingress, while rear protection is IP20. Terminal connections use screw type terminals ensuring ease of installation and secure wiring. With a maximum current capacity of 7A and voltage rating of up to 115V AC (max 250V), this controller is engineered for reliability in diverse applications.

RS PRO 188-5166 is ideal for industrial process temperature control in manufacturing, HVAC, laboratory instrumentation, and other sectors requiring precise thermal regulation. This device promotes improved system efficiency, reduced downtime, and enhanced process safety.

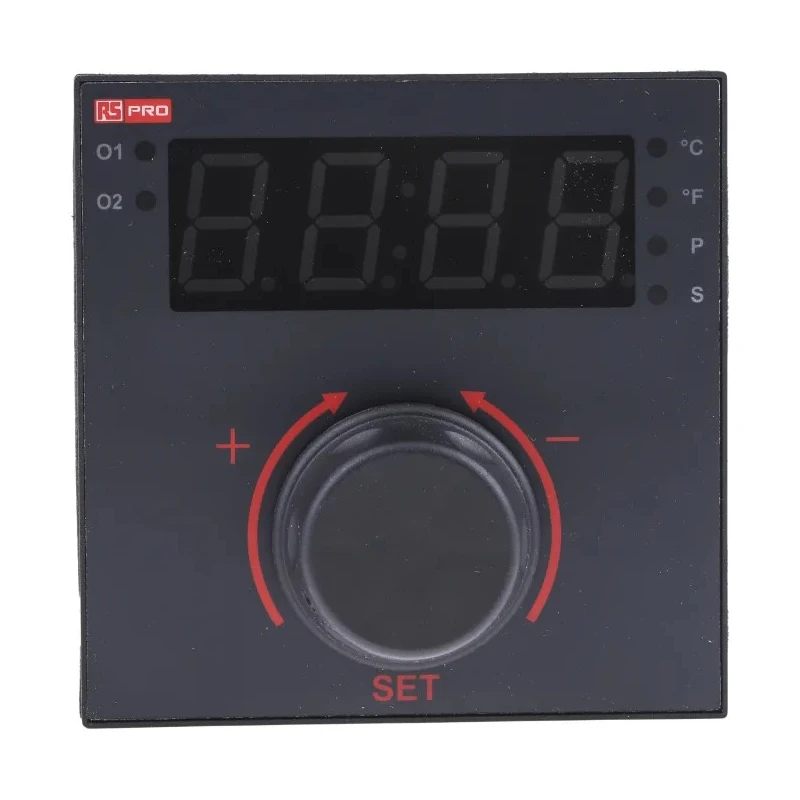

Features a 4-digit display for clear temperature reading. Accepts multiple temperature sensor inputs including J, K, R, S, T and L type thermocouples. Programmable control types including ON/OFF, P, PI, PD, and PID for adaptive temperature management.

Equipped with IP65 protection on the front panel to ensure durability in harsh environments. Auto Tune and Self Tune functions for adaptive PID coefficient adjustments. Maximum current rating of 7A supports robust control output.

Compact panel mounting design with dimensions 96 x 96 mm and panel depth of 76 mm. Operates reliably within 0°C to 50°C ambient temperature range. Terminal connections via screw type for secure wiring. Complies with IEC584.1, IEC 751, and ITS90 standards for accuracy and safety.
