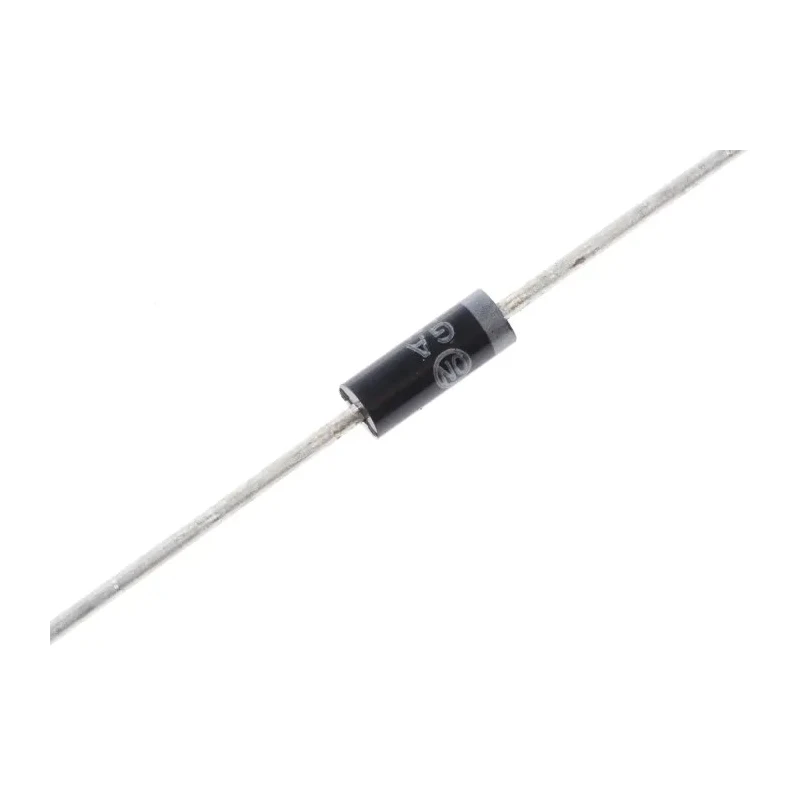

onsemi Zener Diode 120 V 5 W Through Hole 2-Pin DO-15 1N5380BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5380BRLG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 10mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 120V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 170Ω |
Key Features
- This diode has a nominal Zener voltage of 120 volts.
- It has a maximum power dissipation of 5 watts.
- The package type is DO-15 with through-hole mounting.
- It features a low maximum reverse leakage current of 500 nanoamperes.
- The Zener voltage tolerance is ±5 percent for accurate regulation.
- The maximum operating temperature is 200 degrees Celsius.
- This diode has a pin count of 2 suitable for various circuit designs.
- It has a maximum Zener impedance of 170 ohms at test current.
Product Description
onsemi 1N5380BRLG Zener Diode is a precision 120 V, 5 W voltage regulator diode with a through-hole DO-15 package designed for industrial and electronic semiconductor applications. It is configured as a single-element diode with 2 pins, offering reliable voltage regulation for sensitive circuit protection.
The nominal Zener voltage of 120 V ensures stable operation in power supplies and voltage reference circuits. The diode dissipates a maximum power of 5 watts, making it suitable for medium power applications. The device features a low reverse leakage current of 500 nA, enhancing efficiency and reducing power loss.
With a Zener voltage tolerance of ±5%, this diode provides precise voltage regulation. It operates reliably across a wide temperature range from -65°C to 200°C, supporting high-performance and automotive electronic systems not requiring automotive certification. The maximum Zener impedance is specified at 170 Ω for consistent performance at a test current of 10 mA.
The compact DO-15 package with a height of 3.68 mm and length of 8.89 mm facilitates easy through-hole mounting in printed circuit boards. This diode series (1N53) from onsemi is known for tight limits and improved operating characteristics, making it ideal for various industrial, electronic, and laboratory applications including power supplies, voltage stabilization, and protection circuits.
This diode has a nominal Zener voltage of 120 volts. Maximum power dissipation of 5 watts for medium power applications. Through-hole DO-15 package with 2 pins for easy PCB integration. Low maximum reverse leakage current of 500 nanoamperes.
±5% Zener voltage tolerance for precise regulation. Operating temperature from -65 to 200 degrees Celsius. Maximum Zener impedance of 170 ohms at test current. Single-element diode configuration for voltage regulation. Part of the 1N53 Series with improved characteristics.
Height 3.68 mm and length 8.89 mm dimensions.
This onsemi diode is an essential component for electronic engineers and technicians requiring a reliable voltage reference or regulator diode that operates efficiently in rugged and industrial environments.
Explore more semiconductor components and onsemi products on EnvMart for your design and manufacturing needs.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 120 volts.
This model has a maximum power dissipation of 5 watts, making it suitable for medium power applications.
The diode comes in a DO-15 package type and is designed for through-hole mounting.
The maximum reverse leakage current is specified at 500 nanoamperes.
It has a Zener voltage tolerance of ±5 percent for accurate regulation.
This diode operates reliably within a temperature range from -65°C to 200°C.
The diode has a height of 3.68 mm and a length of 8.89 mm.
The maximum Zener impedance is 170 ohms at a test current of 10 mA.
This model features a pin count of 2, suitable for various circuit designs.
It is configured as a single-element diode for voltage regulation.
The country of origin for this diode is India.
This diode is part of the 1N53 series, known for improved operating characteristics.
