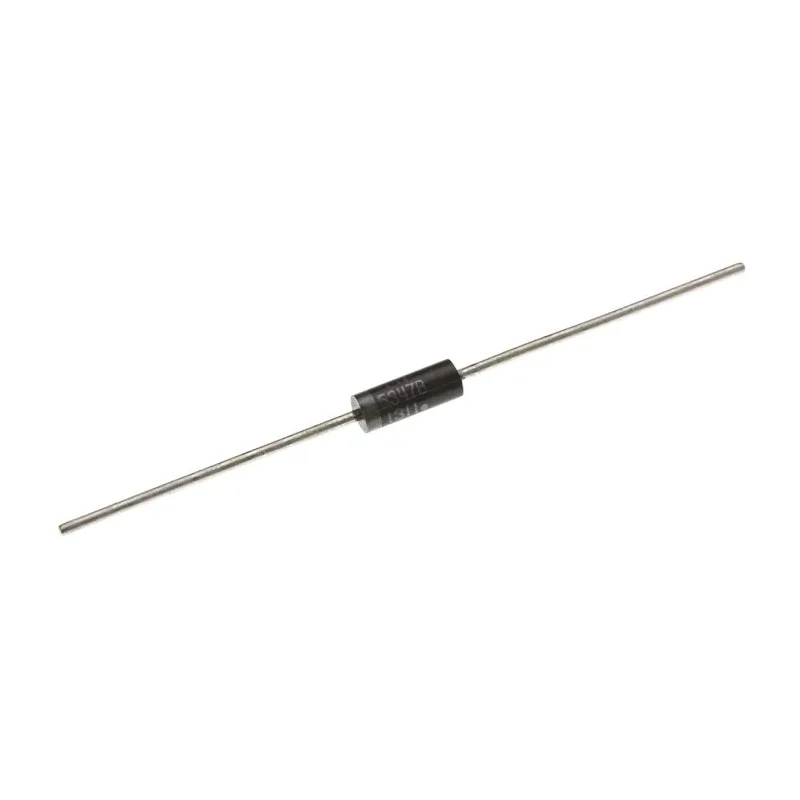

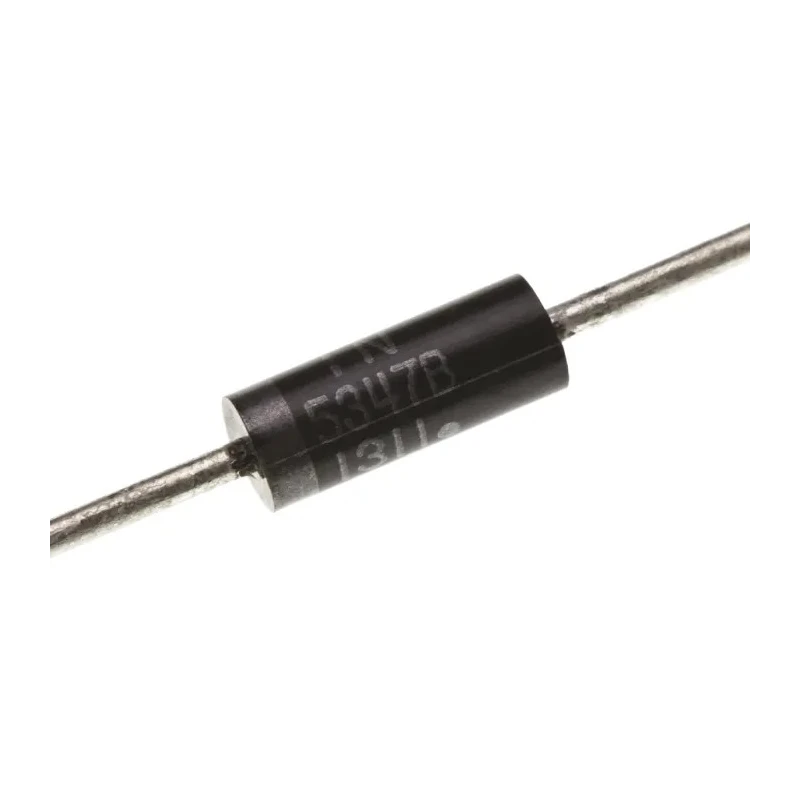

onsemi 10 V 5 W Zener Diode Single Through Hole 2-Pin DO-15 1N5347BRLG

onsemi 1N5347BRLG is a high-quality 10 V, 5 W Zener diode designed as a single element voltage regulator. This diode features a 2-pin axial lead configuration with a through hole mount package type DO-15, making it suitable for industrial electronics and power regulation applications. The device’s nominal voltage is tightly controlled at 10 V with a tolerance of ±5%, ensuring precise voltage regulation performance in circuits.

The maximum power dissipation of 5 watts allows the diode to maintain stable operation under moderate power loads, while the maximum Zener impedance of 2 ohms offers minimal voltage drop variation. It supports a test current of 125 mA, making it ideal for use in voltage stabilizing and overvoltage protection.

Engineered to withstand operating temperatures from -65°C to 200°C, this diode is well-suited for use in a wide range of industrial and commercial settings including manufacturing equipment, power supplies, and electronics requiring robust voltage regulation.

The compact DO-15 molded package is void-free and thermoset, providing excellent protection against environmental factors and corrosion, while the 2-pin through hole design facilitates easy soldering and integration into printed circuit boards.

Key features include low reverse leakage current of 5 microamperes, corrosion-resistant external surfaces, and compliance with industrial standards. This product is manufactured in China and represents the ON Semiconductor 1N53 series of Zener Diodes known for reliability and durability.

Single axial lead Zener diode specifically designed for voltage regulation. Nominal Zener voltage rated at 10 volts with a tolerance of 5 percent. Maximum power dissipation of 5 watts ensures stable and efficient operation.

Through hole mounting with DO-15 package suitable for various PCB configurations. Features a 2-pin configuration with a test current of 125 mA. Maximum Zener impedance is 2 ohms, providing tight voltage regulation. Low maximum reverse leakage current of 5 microamperes improves efficiency.

Operates reliably in a temperature range from -65°C to 200°C. Compact dimensions: height 3.68 mm and length 8.89 mm for space-efficient designs. Constructed with molded thermosetting plastic package offering corrosion resistance.

This onsemi 1N5347BRLG Zener diode is a trusted component for electronic circuit designers and engineers seeking dependable voltage regulation in industrial, manufacturing, and commercial electronic systems. Explore related semiconductor and diode products in the Electronics & Electricals category at EnvMart for comprehensive solutions.
