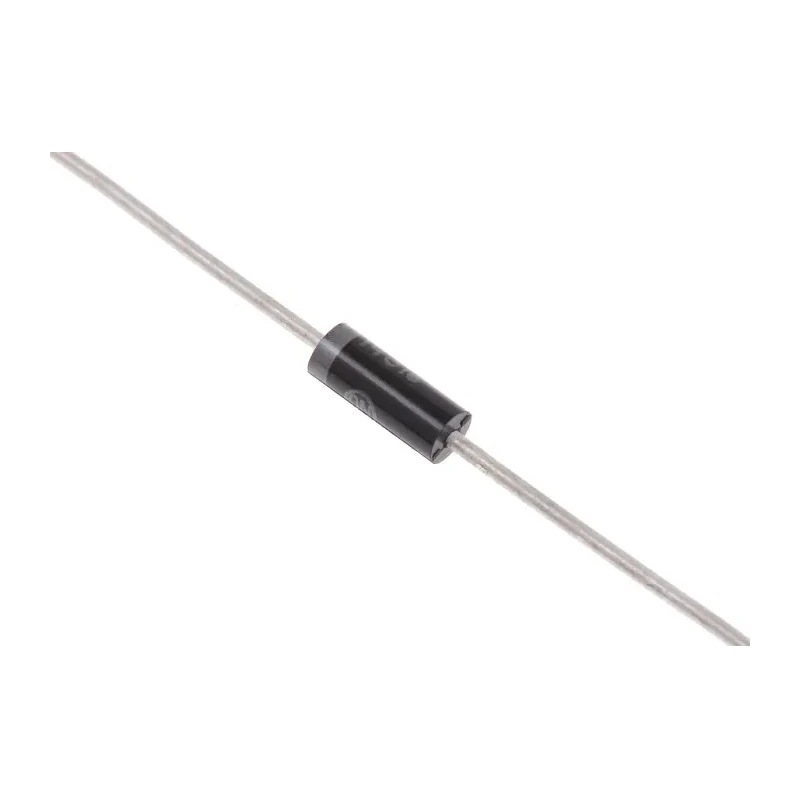

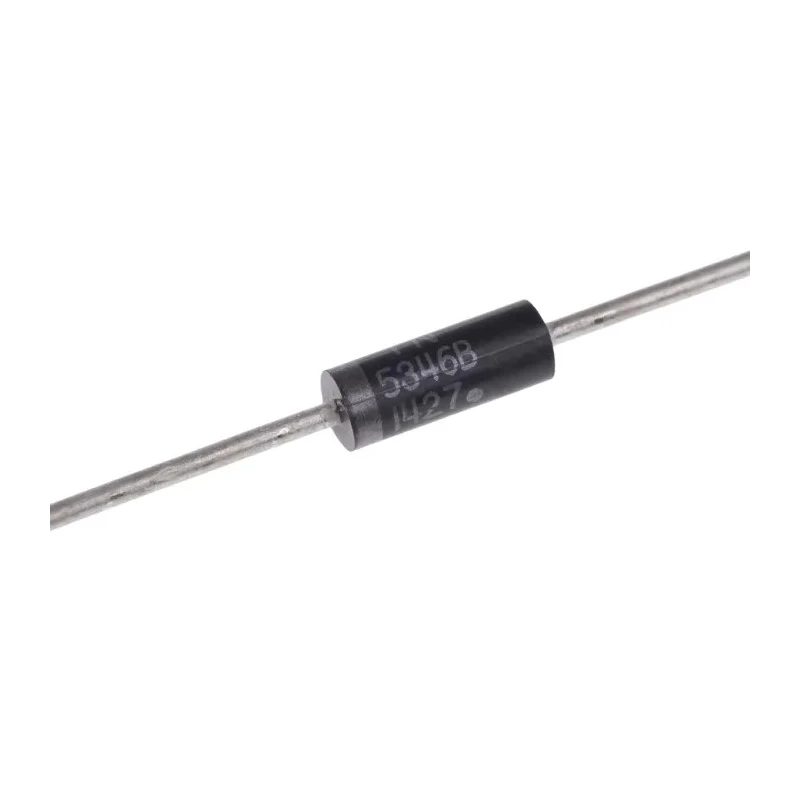

onsemi Zener Diode Single 9.1 V 5 W 5% Through Hole 2-Pin DO-15 1N5346BRLG

onsemi 1N5346BRLG is a high-quality Zener Diode designed for voltage regulation applications requiring a nominal Zener voltage of 9.1 V and power dissipation up to 5 watts. This single diode device features a robust DO-15 package with through hole 2-pin mounting, making it suitable for industrial electronics, power supplies, and voltage reference circuits.

Constructed with a molded, void-free transfer-molded thermosetting plastic package, it provides protection against most common environmental conditions. The corrosion-resistant external surfaces and easily solderable leads ensure reliable performance and ease of assembly in automated or manual PCB mounting processes.

This Zener diode operates within a wide temperature range from -65°C to +200°C, offering excellent stability and durability for demanding industrial use cases. The device’s electrical characteristics include a maximum Zener impedance of 2 ohms and maximum reverse leakage current of 7.5 microamperes, enabling precise voltage regulation and minimal leakage losses.

Typical applications include voltage regulation circuits, power supplies, industrial control systems, and electronics where stable voltage references are critical. Its axial lead configuration and compact dimensions (length 8.89mm, height 3.68mm) facilitate ease of handling and integration.

The diode configuration is single, providing dedicated voltage regulation functionality. The nominal Zener voltage is tightly controlled at 9.1 V ±5% to ensure accurate voltage clipping. Mounting via through hole DO-15 package supports both prototype and high-volume PCB assembly.

Maximum power dissipation rating of 5 watts allows operation under significant power conditions. Test current rating of 150mA ensures performance verification and design reliability. Wide operating temperature range enables reliable function in harsh industrial, laboratory, and manufacturing environments.

Corrosion-resistant and passivated junction construction enhances device lifespan and withstands industrial contaminants. Compact and robust form factor reduces board space requirements while maintaining high reliability.

Choose onsemi 1N5346BRLG Zener Diode for dependable and efficient voltage regulation in your electronic designs, suitable across industrial, power, and manufacturing applications. Explore more components and advanced semiconductors on EnvMart for all your industrial electronics needs.
