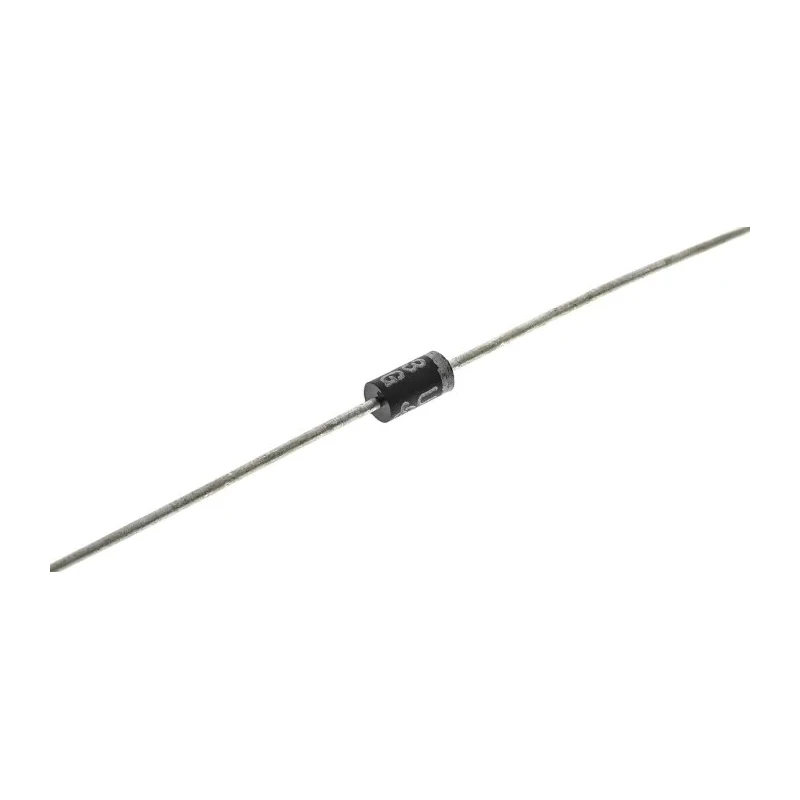

onsemi 5.6 V Single Zener Diode 5 W Power Dissipation Through Hole 2-Pin DO-15 1N5339BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5339BRLG |
| Mount Type | Through Hole |
| Series | 1N5339B |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 220mA |
| Maximum Reverse Leakage Current | 1μA |
| Nominal Zener Voltage Vz | 5.6V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 1Ω |
| onsemi 1, 5.6 V Zener Diode, Single 5 W 5 % Through Hole 2-Pin DO-15Brand | onsemi |
Key Features
- Axial leaded design for through hole mounting.
- Maximum power dissipation of 5 W at rated conditions.
- Tight tolerance voltage regulator with ±5% Zener voltage tolerance.
- Maximum operating temperature up to 200°C for high reliability.
- Low maximum reverse leakage current of 1 μA.
- Surge current capacity with IFSM up to 0.9 A to 20 A depending on variant.
- Corrosion resistant molded package with excellent protection.
- Test current (It) of 220 mA ensures accurate voltage regulation.
Product Description
onsemi 1N5339BRLG is a single Zener diode designed for reliable voltage regulation with a nominal Zener voltage (Vz) of 5.6 V and a maximum power dissipation of 5 W. Packaged in a DO-15 axial lead through-hole form factor, it offers excellent environmental protection due to its void-free transfer-molded, thermosetting plastic casing.
The diode features low maximum reverse leakage current of 1 μA and a test current (It) of 220 mA, providing stable voltage regulation with ±5% tolerance. It operates efficiently within a wide temperature range of -65°C to 200°C, meeting the demands of harsh industrial and consumer electronic environments.
This model includes a maximum Zener impedance of 1 Ω, supporting tight limits and enhanced operating characteristics typical of silicon-oxide passivated junctions. The axial lead device ensures easy insertion in through-hole PCB assemblies, facilitating durable connections.
The product is ideal for applications in industrial power management systems, consumer electronics, and portable devices, where consistent voltage regulation and surge protection are critical. Its corrosion-resistant surface and readily solderable leads provide robust and long-lasting performance.
Axial lead through hole mounting for ease of assembly. Voltage regulator type Zener diode, stable under varying conditions. 5 W maximum power dissipation supports moderate power loads. Temperature operation from -65°C to 200°C for broad environmental suitability.
Low leakage current minimizes power losses. Corrosion resistant molded package for durability. Test current 220 mA for precise voltage regulation. Compact package size with 8.89 mm length and 3.68 mm height. 2-pin configuration for simple circuit integration.
Suitable for industrial, laboratory, construction, HVAC, manufacturing, water treatment, agricultural, and commercial electronic applications requiring reliable voltage regulation and protection.
Explore more Zener Diodes and semiconductor components from EnvMart for your specialized electronic projects and industrial usages.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 5.6 V.
The maximum power dissipation for this model is 5 W at rated conditions.
It operates efficiently within a temperature range of -65°C to 200°C.
The maximum reverse leakage current is 1 μA.
The test current (It) for this diode is 220 mA, ensuring accurate voltage regulation.
This Zener diode has a length of 8.89 mm and a height of 3.68 mm.
It features a through-hole mounting design for easy insertion in PCB assemblies.
The maximum Zener impedance is 1 Ω, which supports tight limits and enhanced operating characteristics.
This model is suitable for applications in industrial power management systems, consumer electronics, and portable devices.
The diode configuration is single, designed for reliable voltage regulation.
The package type is DO-15, which offers excellent environmental protection.
The country of origin for this diode is India.
