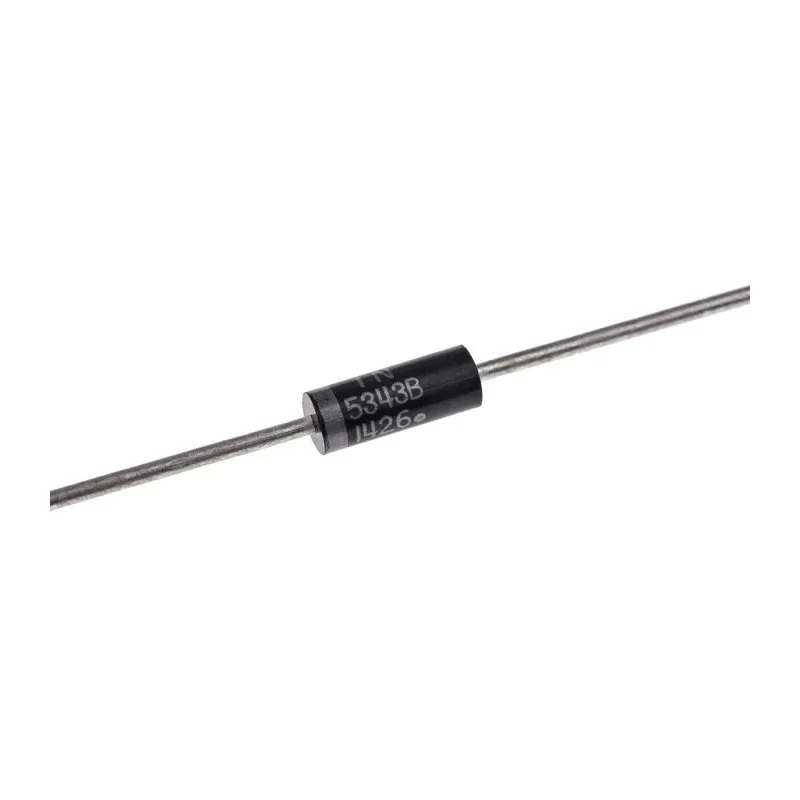

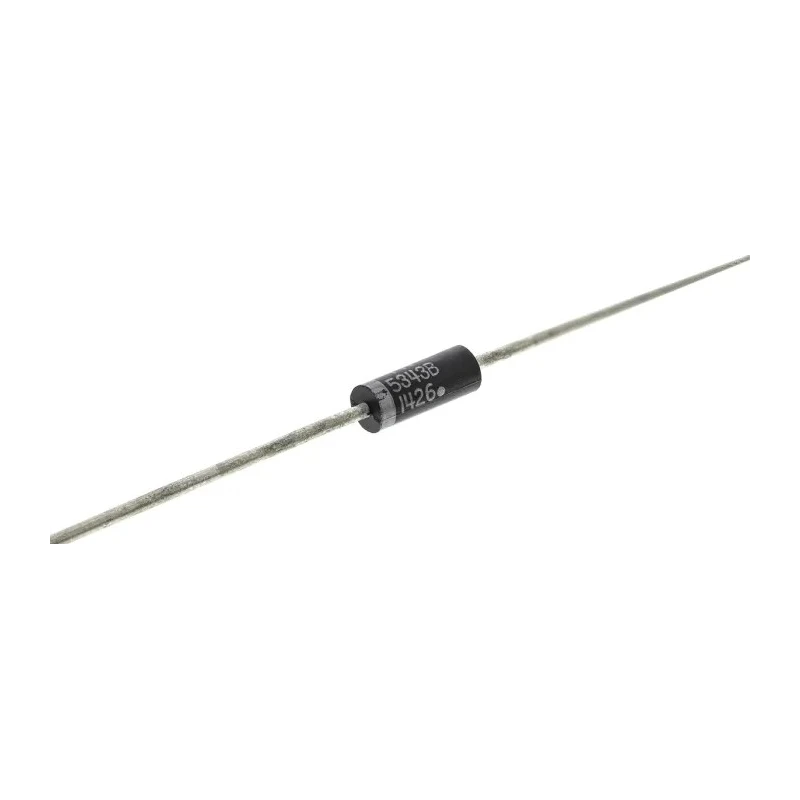

onsemi 7.5 V Zener Diode, Single, 5 W Power Dissipation, Through Hole, 2-Pin DO-15 Package 1N5343BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5343BRLG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 175mA |
| Maximum Reverse Leakage Current | 10μA |
| Nominal Zener Voltage Vz | 7.5V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 1.5Ω |
Key Features
- This Zener diode features a nominal voltage of 7.5 volts with a voltage tolerance of ±5%.
- It supports a maximum power dissipation of 5 watts, ensuring stable operation under load.
- The device uses a 2-pin DO-15 axial leaded package suitable for through-hole mounting.
- Test current is specified at 175 mA for accurate voltage regulation.
- Operating temperature ranges from -65°C to 200°C, suitable for harsh industrial environments.
- Maximum reverse leakage current is limited to 10 microamperes for efficiency and low leakage.
- Constructed using Surmetic™ 40 axial lead technology with corrosion-resistant molded package, ensuring durability.
- Package dimensions include a length of 8.89 mm and height of 3.68 mm, compact for PCB layouts.
Product Description
onsemi 1N5343BRLG is a high-reliability 7.5 V Zener diode designed for voltage regulation with a single diode configuration and power dissipation rating of 5 W. Packaged in a DO-15 2-pin axial lead through-hole format, it offers robust performance for industrial and commercial electronic applications.
This diode features Surmetic™ 40 axial-leaded construction, providing a void-free transfer-molded thermosetting plastic package that offers excellent environmental protection and corrosion resistance. The silicon-oxide passivated junction ensures tight voltage regulation with improved operational characteristics.
Rated for operation across a wide temperature range from -65°C to +200°C, this Zener diode is suitable for demanding industrial, manufacturing, and electronic control systems requiring stable reference voltages. The maximum reverse leakage current of 10 μA and maximum Zener impedance of 1.5 Ω contribute to efficient voltage regulation.
The axial lead DO-15 package measures 8.89 mm in length and 3.68 mm in height, making it adaptable for various PCB designs. The device is constructed to meet general semiconductor quality without automotive certification, suitable for standard industrial use.
Nominal Zener voltage of 7.5 V with ±5% tolerance for precision regulation. Maximum power dissipation rated at 5 W for reliable energy handling. Through hole mount type for easy PCB assembly. Single diode configuration with 2-pin axial lead DO-15 package.
Test current of 175 mA guarantees performance at rated voltage. Operating temperature range from -65°C to 200°C ensures versatility. Corrosion-resistant molded package ensures longevity in industrial environments.
This Zener diode by onsemi is ideal for industrial voltage regulation, power supplies, and electronic protection circuits. It is used widely in electronics manufacturing, HVAC controls, instrumentation, and other applications requiring stable voltage references.
Explore more semiconductor components and discrete electronic parts in the EnvMart catalog to find compatible devices for your engineering and production needs.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 7.5 volts, with a voltage tolerance of ±5%.
This model has a maximum power dissipation rating of 5 watts, ensuring stable operation under load conditions.
The operating temperature range for this Zener diode is from -65°C to 200°C, making it suitable for harsh industrial environments.
It is packaged in a DO-15 2-pin axial lead configuration, suitable for through-hole mounting.
The test current for this model is specified at 175 mA, which is necessary for accurate voltage regulation.
The maximum reverse leakage current is limited to 10 microamperes, contributing to its efficiency and low leakage characteristics.
The dimensions of the DO-15 package include a length of 8.89 mm and a height of 3.68 mm, making it compact for PCB layouts.
This diode utilizes Surmetic™ 40 axial lead technology, which provides a void-free transfer-molded thermosetting plastic package for environmental protection.
This model features a single diode configuration, with one element per chip.
The maximum Zener impedance is rated at 1.5 ohms, which aids in efficient voltage regulation.
This diode is constructed to meet general semiconductor quality but does not have automotive certification, making it more suitable for standard industrial use.
This Zener diode is ideal for industrial voltage regulation, power supplies, and electronic protection circuits, among other applications requiring stable voltage references.
