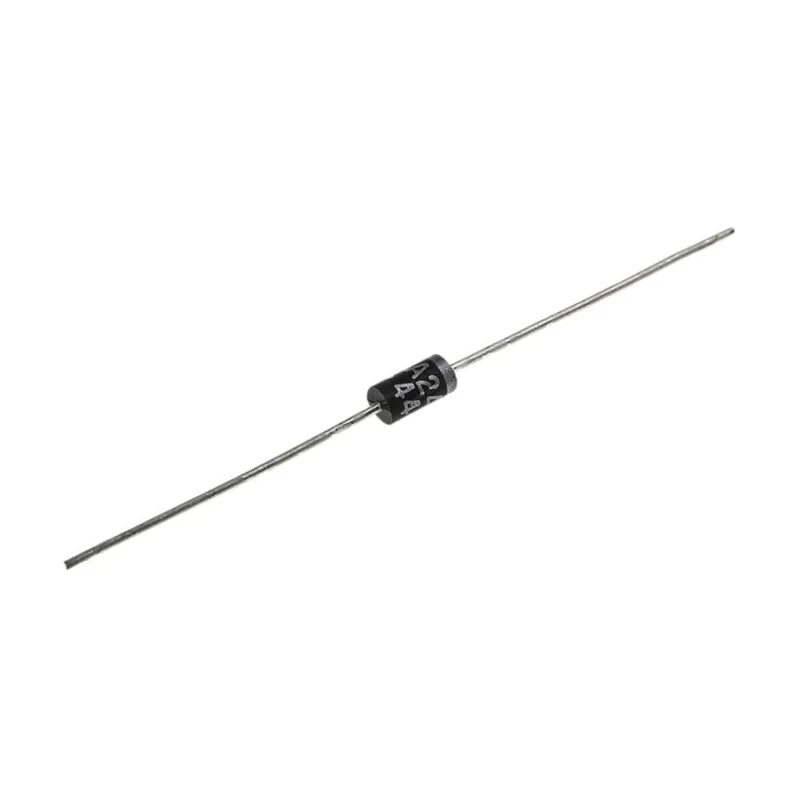

Vishay 1-Element Uni-Directional TVS Diode 500 W 2-Pin DO-15 SA24A-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.3mm |
| Brand | Vishay |
| Height | 3.6mm |
| Length | 7.6mm |
| Model | SA24A-E3/54 |
| Width | 3.6mm |
| Mount Type | Through Hole |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 38.9V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 26.7V |
| Maximum Reverse Stand-off Voltage Vwm | 24V |
| Peak Pulse Power Dissipation Pppm | 500W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 12.9A |
| Maximum Reverse Leakage Current | 1μA |
| Vishay SA24A, Uni-Directional TVS Diode, 500W, 2-Pin DO-204ACBrand | Vishay |
Key Features
- The diode has a single-element, uni-directional configuration for efficient protection.
- Peak pulse power dissipation rating of 500 watts ensures robust transient voltage suppression.
- Operates within a temperature range of -55°C to 175°C, suitable for demanding environments.
- Features a maximum peak pulse current of 12.9 amperes and clamping voltage of 38.9 volts.
- Mount type is through hole with a standard DO-15 axial package for easy PCB mounting.
- Automotive AEC-Q101 standard compliant ensuring reliability for automotive applications.
- Compact dimensions with length 7.6 mm, diameter 3.3 mm, height 3.6 mm, and width 3.6 mm.
Product Description
Vishay SA24A-E3/54 is a high-performance 1-element uni-directional Transient Voltage Suppressor (TVS) diode with a peak pulse power dissipation of 500 W and housed in a 2-pin DO-15 package.
This diode is designed to protect sensitive electronic components from voltage spikes by clamping transient voltages quickly.
Its robust design includes a minimum breakdown voltage of 26.7 volts and a maximum reverse stand-off voltage of 24 volts, making it suitable for power management in various electronic and electrical systems.
The device supports a test current of 1 mA and can handle maximum peak pulse currents up to 12.9 amperes. It also features low reverse leakage current of 1 microampere, ensuring minimal power loss under normal operation.
Operating temperature ranges from -55°C to 175°C provide the diode with excellent reliability in harsh industrial, automotive, and commercial applications.
The through-hole DO-15 package allows for straightforward mounting on PCBs while maintaining compact form factor dimensions: length 7.6 mm, diameter 3.3 mm, height 3.6 mm, and width 3.6 mm.
Single-element, uni-directional diode configuration for transient voltage suppression. Peak pulse power dissipation of 500 watts to withstand high voltage spikes. Complies with automotive standard AEC-Q101 for reliability in automotive electronics.
Through-hole mount type for stable and secure PCB installation. Low reverse leakage current of 1μA minimizes energy loss. Wide operating temperature range from -55°C to 175°C for versatile applications. Compact DO-15 axial package with standard dimensions suitable for various electronics.
This TVS Diode is ideal for use in industrial, automotive, HVAC, manufacturing, and power supply protection applications. Its reliability and performance ensure protection against electrostatic discharge and transient voltage events.
Explore more products in the Transient Voltage Suppressors category for comprehensive circuit protection solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay SA24A-E3/54 has a peak pulse power dissipation rating of 500 watts, allowing it to handle high voltage spikes effectively.
This model can handle a maximum peak pulse current of 12.9 amperes, ensuring it can protect sensitive components during transient events.
The clamping voltage for this diode is 38.9 volts, which is the voltage level at which it begins to conduct and clamp transients.
It operates within a temperature range of -55°C to 175°C, making it suitable for use in harsh environments.
The maximum reverse leakage current for the Vishay SA24A-E3/54 is 1 microampere, which helps minimize energy loss during normal operation.
This unit features a through-hole mount type, allowing for straightforward installation on printed circuit boards (PCBs).
The diode has compact dimensions: length 7.6 mm, diameter 3.3 mm, height 3.6 mm, and width 3.6 mm.
Yes, it complies with the automotive AEC-Q101 standard, ensuring reliability for automotive applications.
The minimum breakdown voltage for the SA24A-E3/54 is 26.7 volts, which is the voltage at which the diode begins to conduct.
This model features a single-element configuration, which is designed for uni-directional transient voltage suppression.
The test current for the Vishay SA24A-E3/54 is 1 mA, which is used for testing the diode's performance.
It comes in a standard DO-15 package type, which is suitable for various electronic applications and easy PCB mounting.
