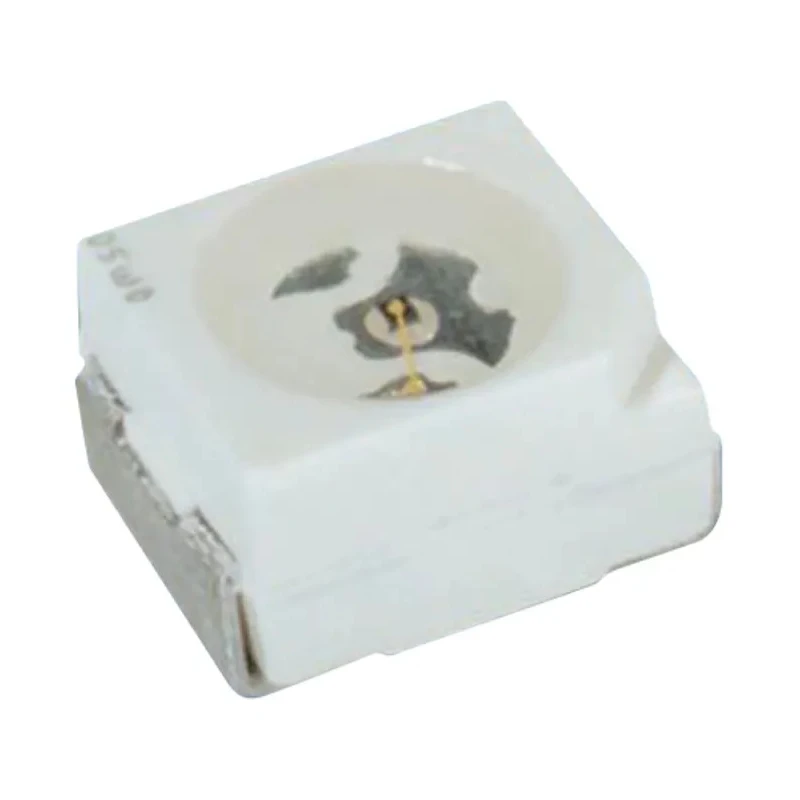

Broadcom LED PLCC 2 Surface Mount LED Amber Blue Emerald Green Green Orange Red Yellow 2.2V 30mA HSMG-A100-J02J1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HSMG-A100-J02J1 |
| Mount Type | Surface |
| Series | HSMx-A10x-xxxxx |
| Maximum forward current | 30mA |
| Viewing angle | 120 ° |
| Package Type | PLCC 2 |
| LED Colour | Amber, Blue, Emerald Green, Green, Orange, Red, Yellow |
| Dominant Wavelength | 569nm |
| Forward Voltage | 2.2V |
| Number of Pins | 2 |
| LED Luminosity | 18 mcd |
| Lens Dimensions | 3.2 x 2.8 x 1.8 mm |
| Lens Shape | Round |
| Lens Finish | White |
Key Features
- The LED is available in multiple colors including Amber, Blue, Emerald Green, Green, Orange, Red, and Yellow.
- It features a wide 120° viewing angle suitable for back-lighting and signage applications.
- The PLCC 2 package measures 3.2 x 2.8 x 1.8 mm with a round clear lens and white lens finish.
- Utilizes AlGaInP and InGaN dice technologies for high brightness and reliability.
- Designed for harsh interior automotive environments and interior signage use.
- Includes built-in reflector to enhance light output for pixel applications in signs.
- Meets IEC 60068-2-43, J-STD-020C, IEC 60068-2-42, IEC 60068-2-60, and JEDEC J-STD-020 standards.
Product Description
Broadcom HSMG-A100-J02J1 is a surface mount LED offered in a compact PLCC 2 package with dimensions of 3.2 x 2.8 x 1.8 mm. It operates at a forward voltage of 2.2 volts with a maximum forward current rating of 30 mA. This LED series includes multiple vibrant colors such as Amber, Blue, Emerald Green, Green, Orange, Red, and Yellow, making it versatile for various lighting requirements.
Utilizing AlGaInP and InGaN semiconductor technologies, these LEDs deliver high brightness output with an 18 mcd luminosity rating, ideal for use in backlights, signage, and automotive interiors. The LEDs feature a flat topped emitting surface and a wide 120° viewing angle to ensure even illumination and efficient light pipe integration.
The white lens finish combined with a clear round lens enhances color purity and light transmission. The built-in reflector improves light output effectiveness, making this LED well suited as a pixel element in electronic signage and displays.
These LEDs comply with multiple industrial standards including IEC 60068-2-43, J-STD-020C, IEC 60068-2-42, IEC 60068-2-60, and JEDEC J-STD-020 ensuring ruggedness and reliability under harsh environmental conditions.
Common applications include automotive interior lighting, commercial signage, back-lighting, and other industrial electronic displays requiring consistent color and brightness. The LED comes in multiple colors including Amber, Blue, Emerald Green, Green, Orange, Red, and Yellow.
It is packaged in a PLCC 2 surface mount form factor with compact dimensions. Forward voltage is 2.2 V with maximum forward current of 30 mA. Wide 120° viewing angle enables broad illumination coverage. Built-in reflector enhances light output for pixel use in signage.
Manufactured using high brightness AlGaInP and InGaN dice technologies. Meets stringent industrial and automotive lighting standards for durability.
Explore the Broadcom LED range in the EnvMart Electronics Components category for reliable, high-performance LEDs suited for demanding industrial, automotive, and signage applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of this LED is 2.2 volts.
The maximum forward current rating for the HSMG-A100-J02J1 is 30 mA.
This LED is available in multiple colors including Amber, Blue, Emerald Green, Green, Orange, Red, and Yellow.
The viewing angle of the HSMG-A100-J02J1 is 120 degrees, which allows for broad illumination coverage.
The PLCC 2 package measures 3.2 x 2.8 x 1.8 mm.
This LED has a luminosity rating of 18 mcd.
The HSMG-A100-J02J1 utilizes AlGaInP and InGaN dice technologies for high brightness and reliability.
This LED is suitable for automotive interior lighting, commercial signage, back-lighting, and other industrial electronic displays.
Yes, it meets multiple industrial standards including IEC 60068-2-43, J-STD-020C, IEC 60068-2-42, IEC 60068-2-60, and JEDEC J-STD-020.
The lens shape is round with a white lens finish, enhancing color purity and light transmission.
This LED has 2 pins.
This model uses surface mounting.
