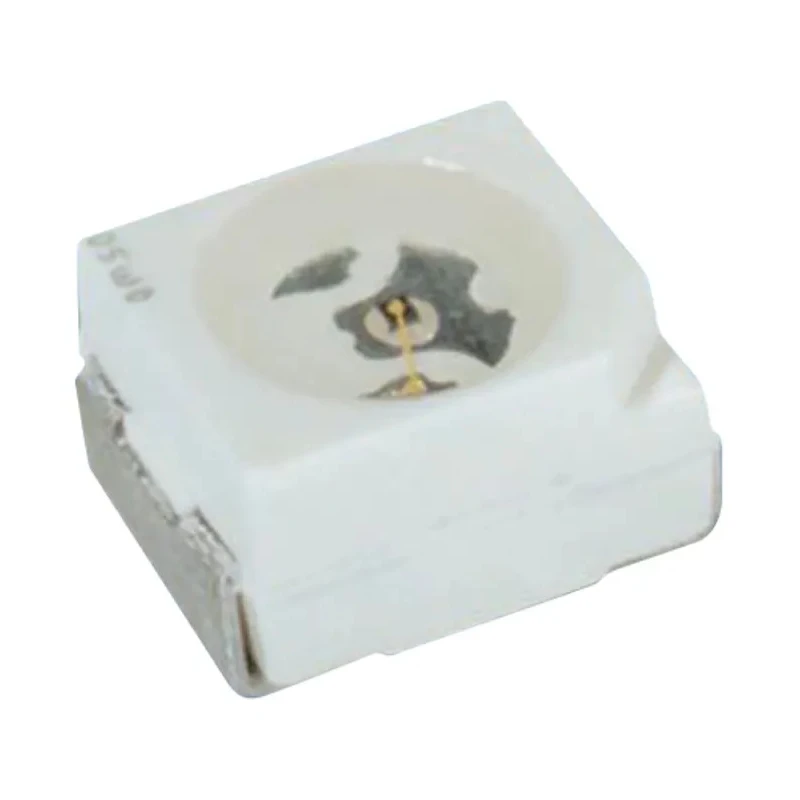

Broadcom Multi-Color LED PLCC 2 Surface Mount 2 Pin 2.2V Forward Voltage HSMG-A100-J02J1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HSMG-A100-J02J1 |
| Mount Type | Surface |
| Series | HSMx-A10x-xxxxx |
| Maximum forward current | 30mA |
| Viewing angle | 120 ° |
| Package Type | PLCC 2 |
| LED Colour | Amber, Blue, Emerald Green, Green, Orange, Red, Yellow |
| Dominant Wavelength | 569nm |
| Forward Voltage | 2.2V |
| Number of Pins | 2 |
| LED Luminosity | 18 mcd |
| Lens Dimensions | 3.2 x 2.8 x 1.8 mm |
| Lens Shape | Round |
| Lens Finish | White |
Key Features
- Offers multiple LED colors including Amber, Blue, Emerald Green, Green, Orange, Red, and Yellow.
- Features a PLCC 2 package type with compact dimensions of 3.2 x 2.8 x 1.8 mm.
- Maximum forward current rating is 30mA ensuring reliable performance.
- Wide viewing angle of 120 degrees ideal for sign illumination and back-lighting.
- Lens is round with a white finish and a clear lens color for optimal light output.
- LED luminosity is rated at 18 mcd for bright emissions.
- Complies with IEC 60068 series, J-STD-020C, JEDEC standards for durability and quality.
- Designed for surface mount technology with 2-pin configuration.
Product Description
Broadcom HSMG-A100-J02J1 is a multi-color LED designed for demanding electronic component applications. This PLCC 2 package surface mount LED incorporates various colors such as Amber, Blue, Emerald Green, Green, Orange, Red, and Yellow, making it versatile for sign illumination, backlighting, and interior automotive uses.
Operating with a forward voltage of 2.2V and rated for a maximum forward current of 30mA, this LED provides high brightness with a luminosity of 18 mcd. Its compact 3.2 x 2.8 x 1.8 mm dimensions and 2-pin surface mount configuration offer easy integration into electronic assemblies and lighting modules.
The LED features a round lens shape with a white lens finish and clear color to enhance light transmission. A wide viewing angle of 120 degrees ensures broad light dispersion, which is ideal for interior signage and colored back-lighting applications.
Manufactured to meet stringent quality and environmental standards including IEC 60068-2-43, IEC 60068-2-42, IEC 60068-2-60, J-STD-020C, and JEDEC J-STD-020 certifications, this product guarantees high reliability in harsh environments.
Typical industrial applications include electronic instrument displays, automotive interior lighting, and LED pixel signage where color variety and reliability are critical. Offers multiple LED colors including Amber, Blue, Emerald Green, Green, Orange, Red, and Yellow.
Features a PLCC 2 package type with compact dimensions of 3.2 x 2.8 x 1.8 mm. Maximum forward current rating is 30mA ensuring reliable performance. Wide viewing angle of 120 degrees ideal for sign illumination and back-lighting.
Lens is round with a white finish and a clear lens color for optimal light output. LED luminosity is rated at 18 mcd for bright emissions. Complies with IEC 60068 series, J-STD-020C, JEDEC standards for durability and quality.
Designed for surface mount technology with 2-pin configuration.
Discover a reliable multi-color LED solution for professional industrial, automotive, and electronic component applications in EnvMart's extensive Electronics & Electricals catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current rating is 30mA, ensuring reliable performance in various applications.
This model has compact dimensions of 3.2 x 2.8 x 1.8 mm, making it suitable for integration into electronic assemblies.
It supports multiple colors including Amber, Blue, Emerald Green, Green, Orange, Red, and Yellow.
The viewing angle is 120 degrees, which is ideal for applications such as sign illumination and backlighting.
The forward voltage is rated at 2.2V, which is typical for many LED applications.
This LED is designed for surface mount technology with a 2-pin configuration.
The LED luminosity is rated at 18 mcd, providing bright emissions for effective visibility.
It complies with IEC 60068 series, J-STD-020C, and JEDEC standards, ensuring durability and quality.
The lens is round with a white finish and a clear color to enhance light transmission.
Typical applications include electronic instrument displays, automotive interior lighting, and LED pixel signage.
This model belongs to the HSMx-A10x-xxxxx series, which includes various multi-color LEDs.
The country of origin for this LED is India.
